ABUS TVAC10050 Operating instructions User Manual
Page 9

9
Deutsch

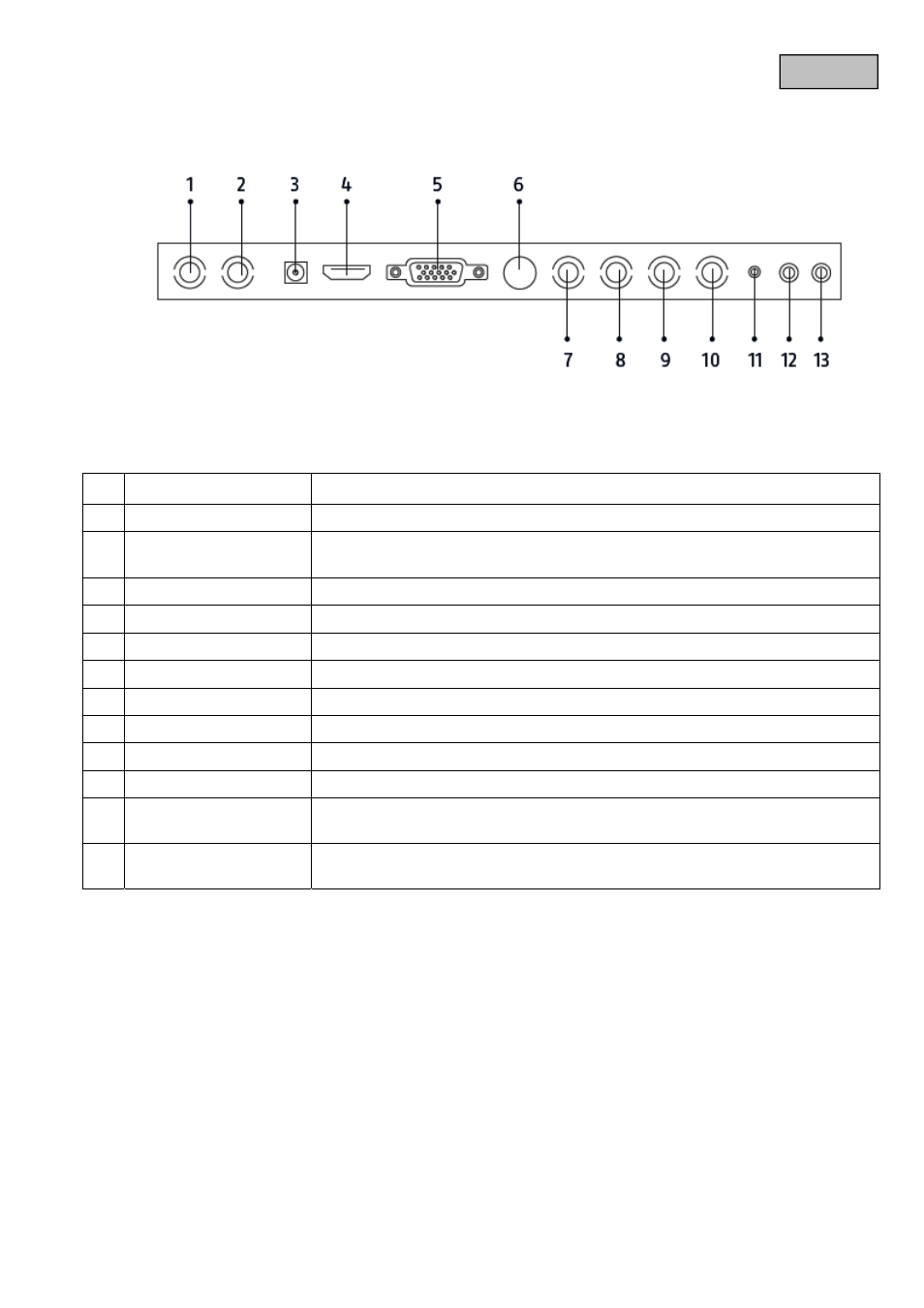

4. Beschreibung der Anschlüsse
1
HD-SDI Eingang
HD-SDI Videosignaleingang (BNC)
2
HD-SDI Ausgang
Durchgeschliffener HD-SDI Videosignalausgang (BNC)
3
Spannungsversorgung
DC 12V / 3 A,
Verwenden Sie für den Betrieb bitte nur das mitgelieferte Netzteil!
4
HDMI-Eingang
Schnittstelle für multimediale Daten
5
VGA-Eingang
PC- und DVR-Signaleingang
6
S-Video Eingang
Analoger Signaleingang
7
Video-Eingang 1
Composite-Videosignaleingang 1(BNC)
8
Video-Ausgang 1
Durchgeschliffener Videosignalausgang 1(BNC)
9
Video-Eingang 2
Composite-Videosignaleingang 2(BNC)
10
Video-Ausgang 2
Durchgeschliffener Videosignalausgang 2(BNC)
11
PC-Audio-Eingang
3,5 mm Klinke, Audiosignaleingang gekoppelt mit dem VGA-Eingang
12
Audio-Eingang L
Cinch Eingang L, Audiosignaleingang gekoppelt mit den Videoeingängen
(AV1, AV2)
13
Audio-Eingang R
Cinch Eingang R, Audiosignaleingang gekoppelt mit den Videoeingängen
(AV1, AV2)
