28
English

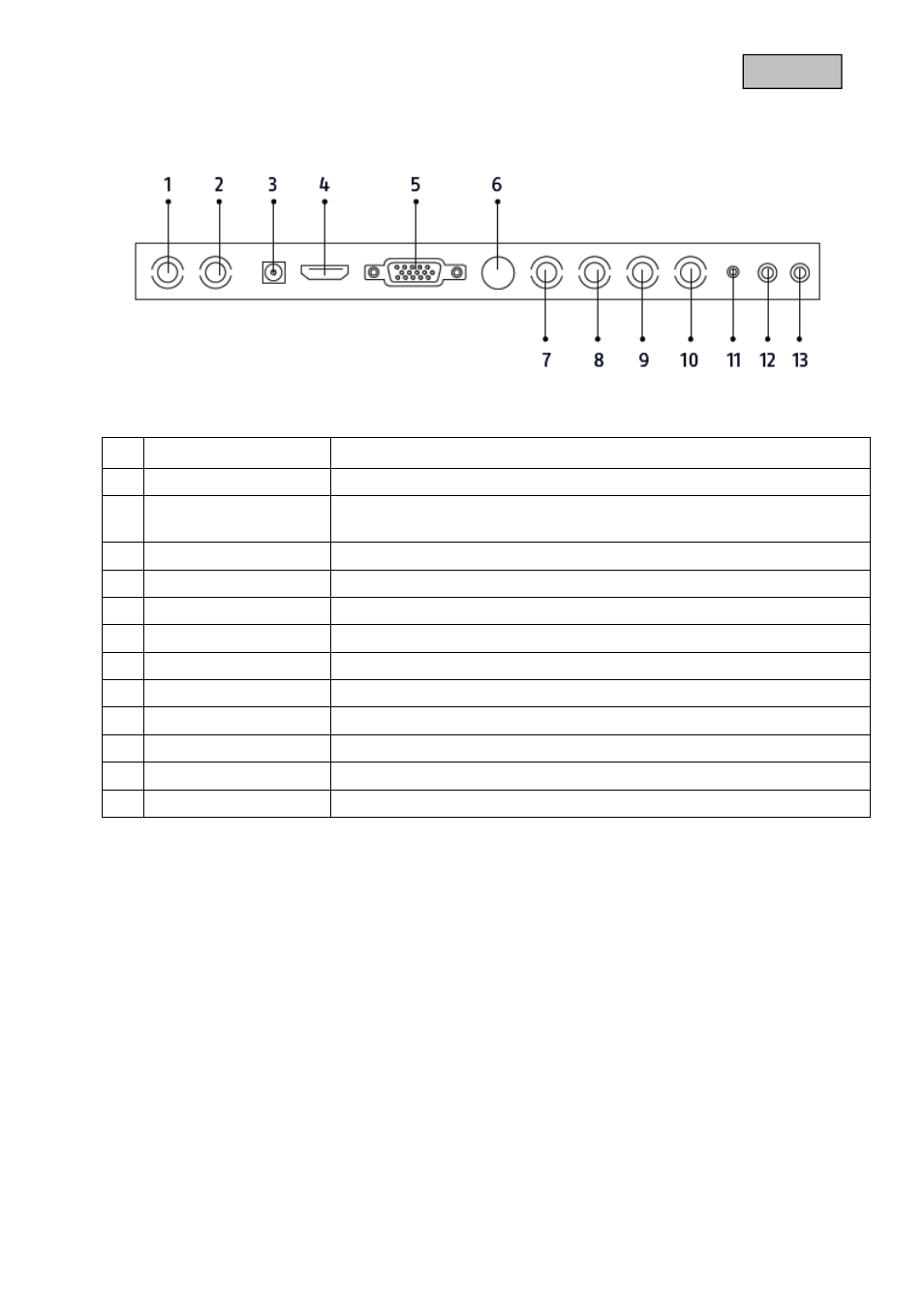

4. Physical descriptions
1 HD-SDI input HD-SDI video signal input (BNC)
2 HD-SDI output Looped-through HD-SDI video signal output (BNC)
3 Power supply DC 12 V / 3 A,
Only use the power supply unit provided for operating the monitor!
4 HDMI input Port for multi-media data
5 VGA input PC and DVR signal input
6 S-Video input Analogue signal input
7 Video input 1 Composite video signal input 1 (BNC)
8 Video output 1 Looped-through video signal output 1 (BNC)
9 Video input 2 Composite video signal input 2 (BNC)
10 Video output 2 Looped-through video signal output 2 (BNC)
11 PC audio input 3.5 mm jack, audio signal input coupled with the VGA input
12 Audio input L Cinch input L, audio signal input coupled with the video inputs.
13 Audio input R Cinch input R, audio signal input coupled with the video inputs.
