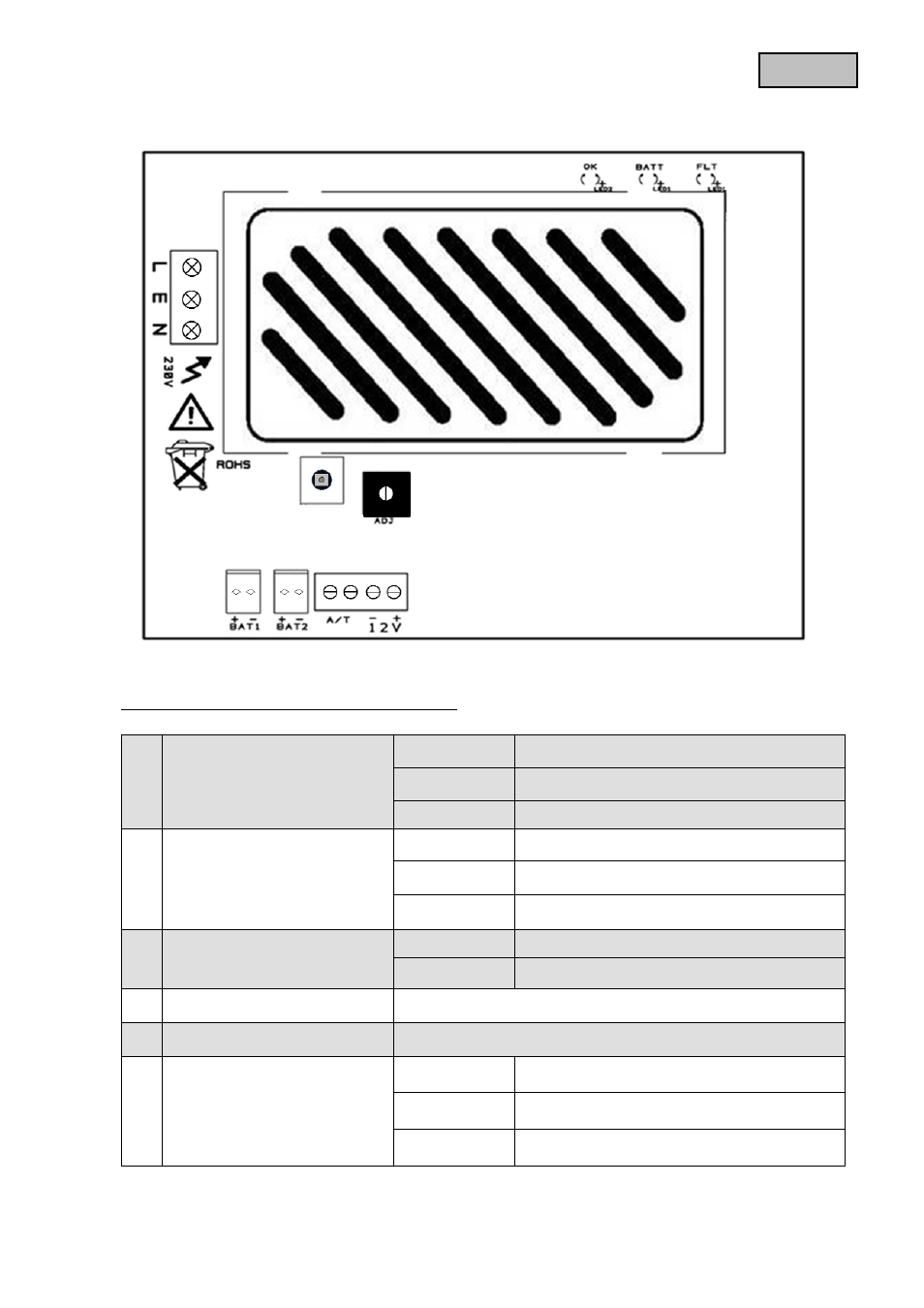

6. Connections / status LEDs
Description of the connections and the LEDs:
Mains connection block
L Live
E Earth
N Neutral
Power connection
12 V „+“ Plus
12 V „-“ Minus
A / T Connection for tamper supervision
Battery connection
BAT1 „+“ „-“ Connection battery 1
BAT2 „+“ „-“ Connection battery 2
Potentiometer Adjustment of the output voltage
Tamper contact Contact closed when cover is closed (NC= normally closed)
LED control display
OK
230 VAC power supply
ON: device is feed with 230 VAC
BATT
Battery backup
ON: Battery backup activated
FLT
Overloading
ON: Overloading at output current
