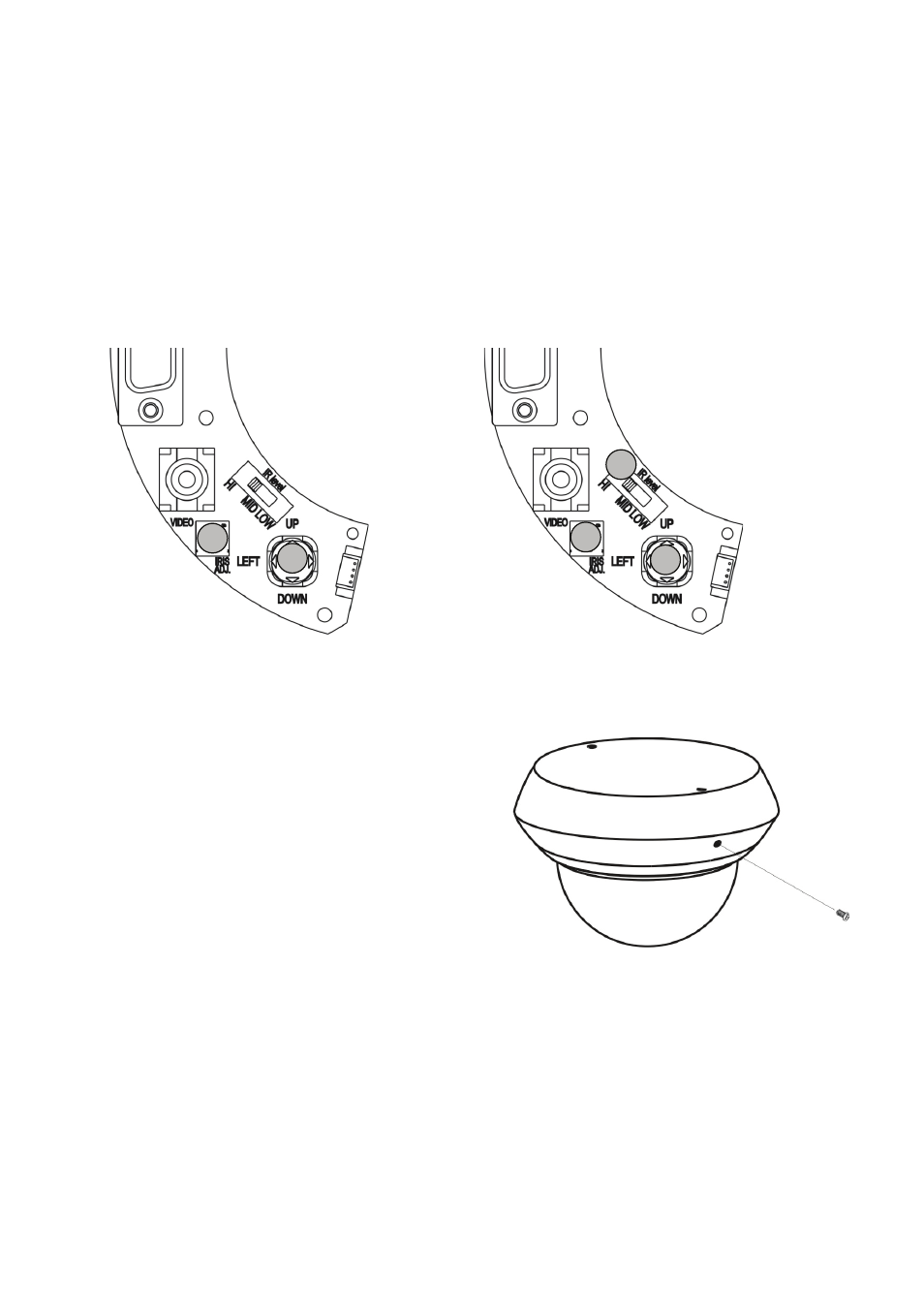

6.5 Adjustment of IR LED intensity and camera parameter
1
IRIS ADJ.: Adjustment of the aperture of the auto iris lens
2
IR intensity (only TV70500): 3 levels for the IR light intensity are available
(HI – 20 meter; MID – 10 meter, LOW – 5 meter).
3
Setup of camera parameter over control keys (OSD menu)
TVCC70000:
TVCC70500:
6.6 Installation of the dome head
The dome head with dome head ring will be
placed onto the base part in a specific
position.
Please take care that the hole for the side
fixing screw will be placed near the opening
fort he cables.
The dome head ring will be fix by 3 handles
on the base part, and it will be fixed by
clockwise rotation onto the base part.
Please use the supplied fixing screw to fix
the dome head/dome head ring position.
