5. Description of device

5.1 Overview – item numbers

Item number

TVCC70000

TVCC70500

Resolution

650 TVL

Lens

2.8~10.5 mm

IR -



Day/Night

(removable IR cut

filter)



Voltage

12 VDC

5.2 Unpacking

While you are unpacking the device please handle it with utmost care.

If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.

6. Mounting

Attention!
Please disconnect the camera from power supply during the installation.

6.1 Mounting of the camera

Surface mounting

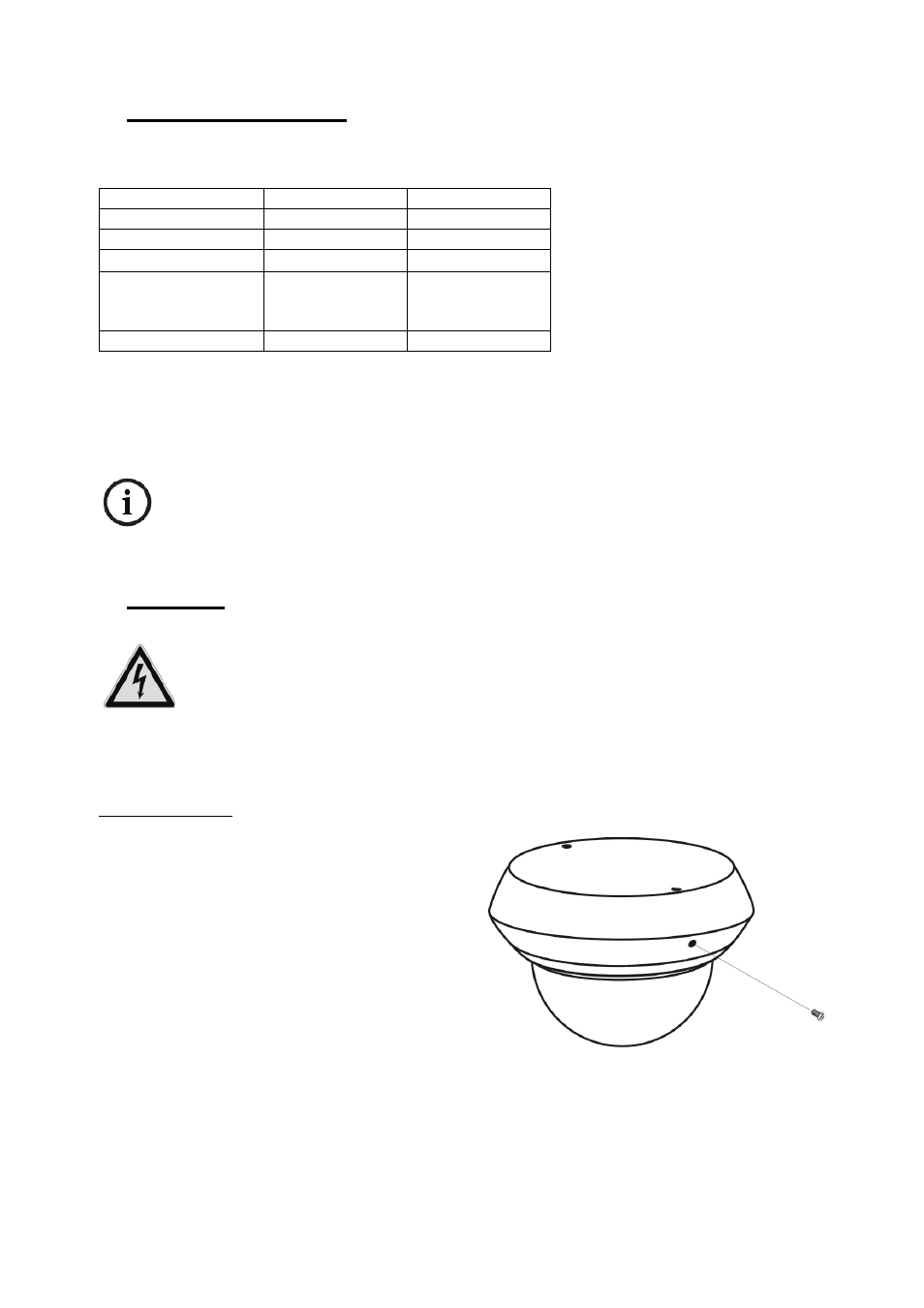

Before removing the dome head the dome
head fixing screw must be removed (as
factory default the screw is supplied in the
package). The dome head now can be
removed by anti clockwise rotation.
