2.25 Installing the Add-on Card
FWS-816B supports three types of add-on cards: PCI, PCI-X and
PCI-Express, and not intended to use for any
TELECOMMUNICATION NETWORK device. (Such as modem
card.)

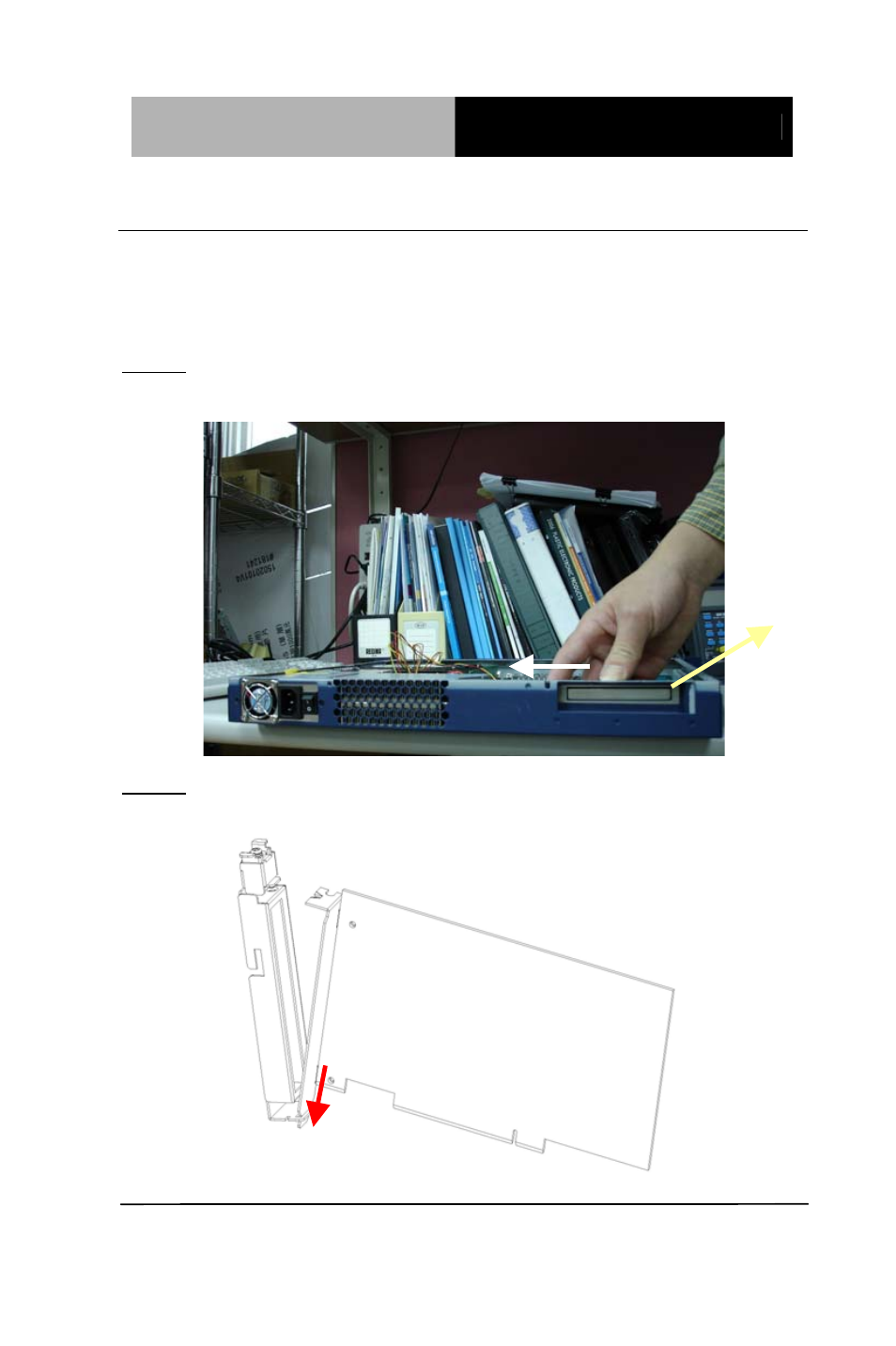

Step 1: Slide the cover of the PCI/ PCI-X/ PCI-E﹝x1﹞Expansion
Slot horizontally and remove the cover backward
PCI/ PCI-X/
PCI-E﹝x1﹞
expansion slot
with cover
Step 2: Insert PCI card bracket to the cover bottom of the PCI/
PCI-X/ PCI-E﹝x1﹞Expansion Slot
