Page 32
EMB-H81A
2-24

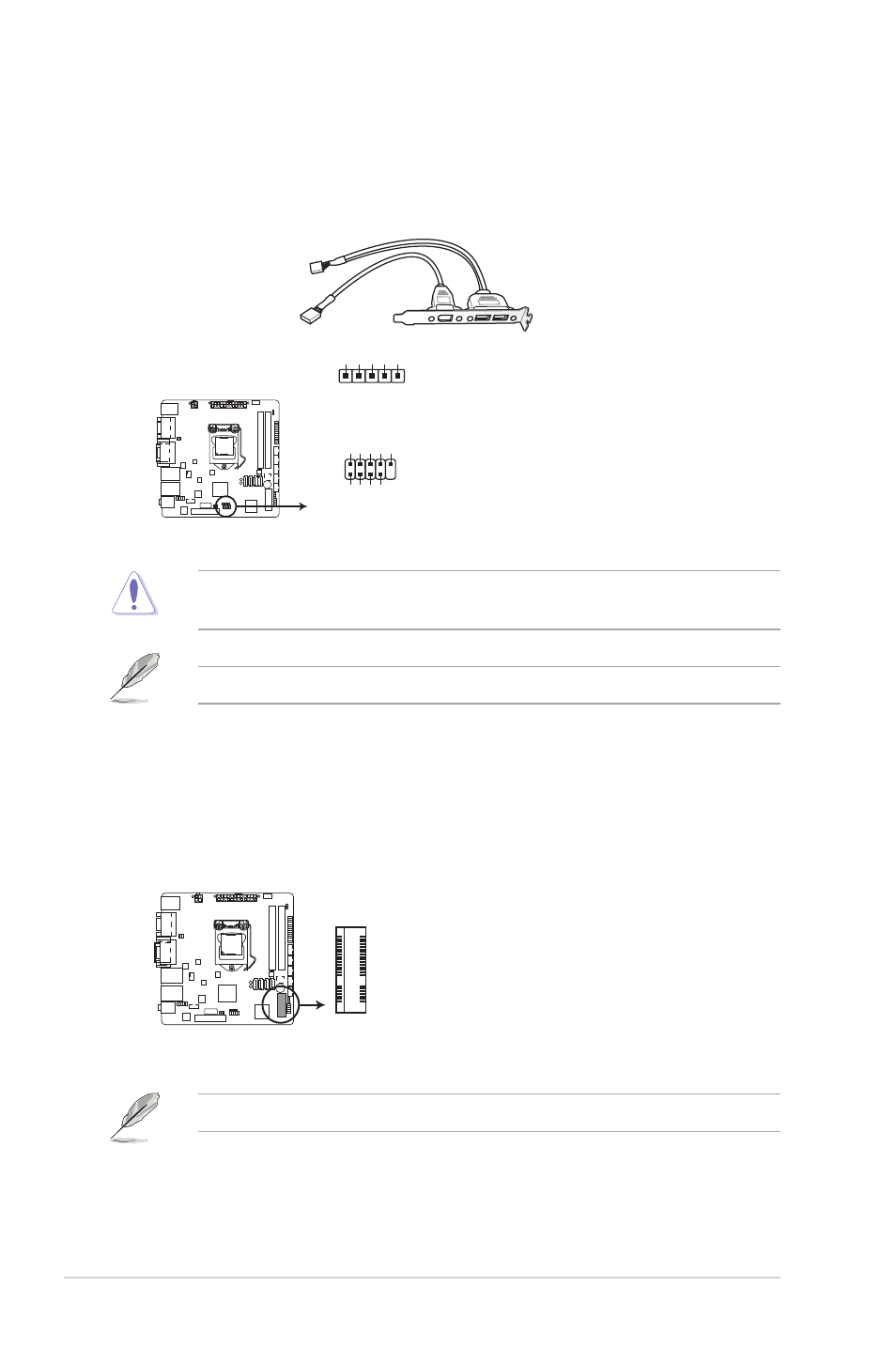

10. USB 2.0 connector (10-1 pin USB45, USB10)
This connector is for USB 2.0 ports. Connect the USB module cable to
connector USB1112. This USB connector complies with USB 2.0 specification
that supports up to 480 Mbps connection speed.
EMB-H81A USB2.0 connectors
IMBM-H61A Front USB 2.0 Header connectors
+5V USB4- USB4+ GND (NC)
+5V
USB5- USB5+
GND
USB45
USB10
PIN 1
PIN 1
+5V USBD- USBD+ GND GND GND
Never connect a 1394 cable to the USB connector. Doing so will damage the
motherboard.
The USB module cable is purchased separately.
EMB-H81A MINICARD connector
MINICARD
11. Minicard connector
Use this connector to connect a Minicard reader.
The Mini card module is purchased separately.
