2-23 Chapter 2: Motherboard information
6. Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1, SATA3G_2)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical
drives via Serial ATA 3.0 Gb/s signal cables.
NOTES:
• You must install Windows
® XP Service Pack 3 or later version before using
Serial ATA hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the
BIOS to [AHCI]. See section 3.3.4 SATA Configuration for details.
9. Serial ATA 6.0Gb/s connector (7-pin SATA6G_1, SATA6G_2)
ThIS connector connects to Serial ATA 6.0 Gb/s hard disk drives via Serial
ATA 6.0 Gb/s signal cables.
NOTES:
• You must install Windows
® XP Service Pack 3 or later version before using
Serial ATA hard disk drives.
• When using hot-plug and NCQ, set the SATA Mode Selection item in the
BIOS to [AHCI]. See section 3.3.3 SATA Configuration for details.

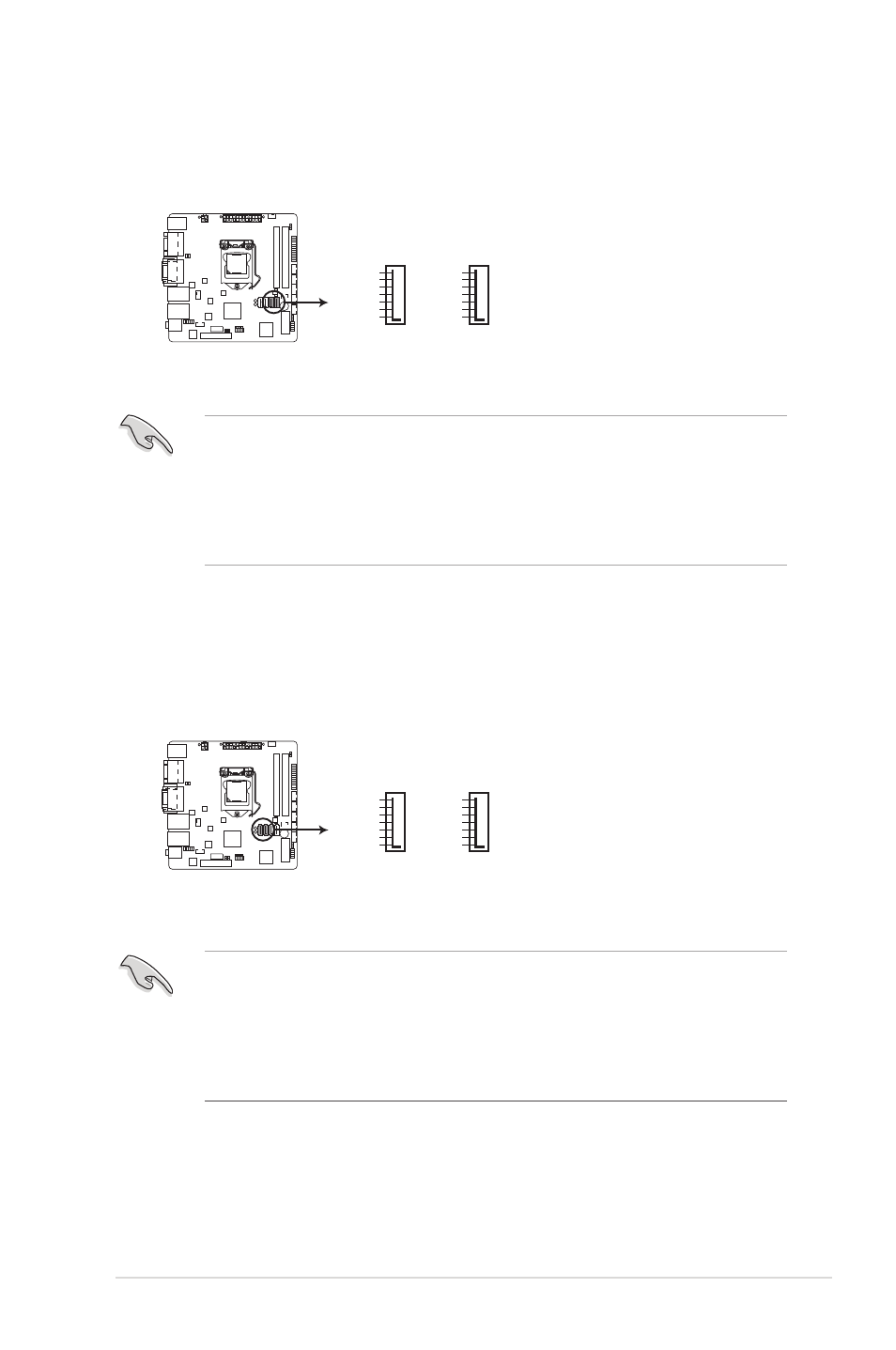

EMB-H81A SATA 3.0Gb/s connectors
SATA3G_3 SATA3G_4
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND
EMB-H81A SATA 6.0Gb/s connectors
SATA6G_1 SATA6G_2
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
