Page 29: Battery
2-21
Chapter 2: Motherboard information
16. LVDS connector [WtoB CON 2P, 1.25mm, R/A, SMT // ACES / 85204-
02001] (30-pin LVDS1)
This connector is for an LCD monitor that supports Low-voltage differential
signaling (LVDS) interface.
17. Battery connector (2-pin BATTERY)
This connector is for the lithium CMOS battery.

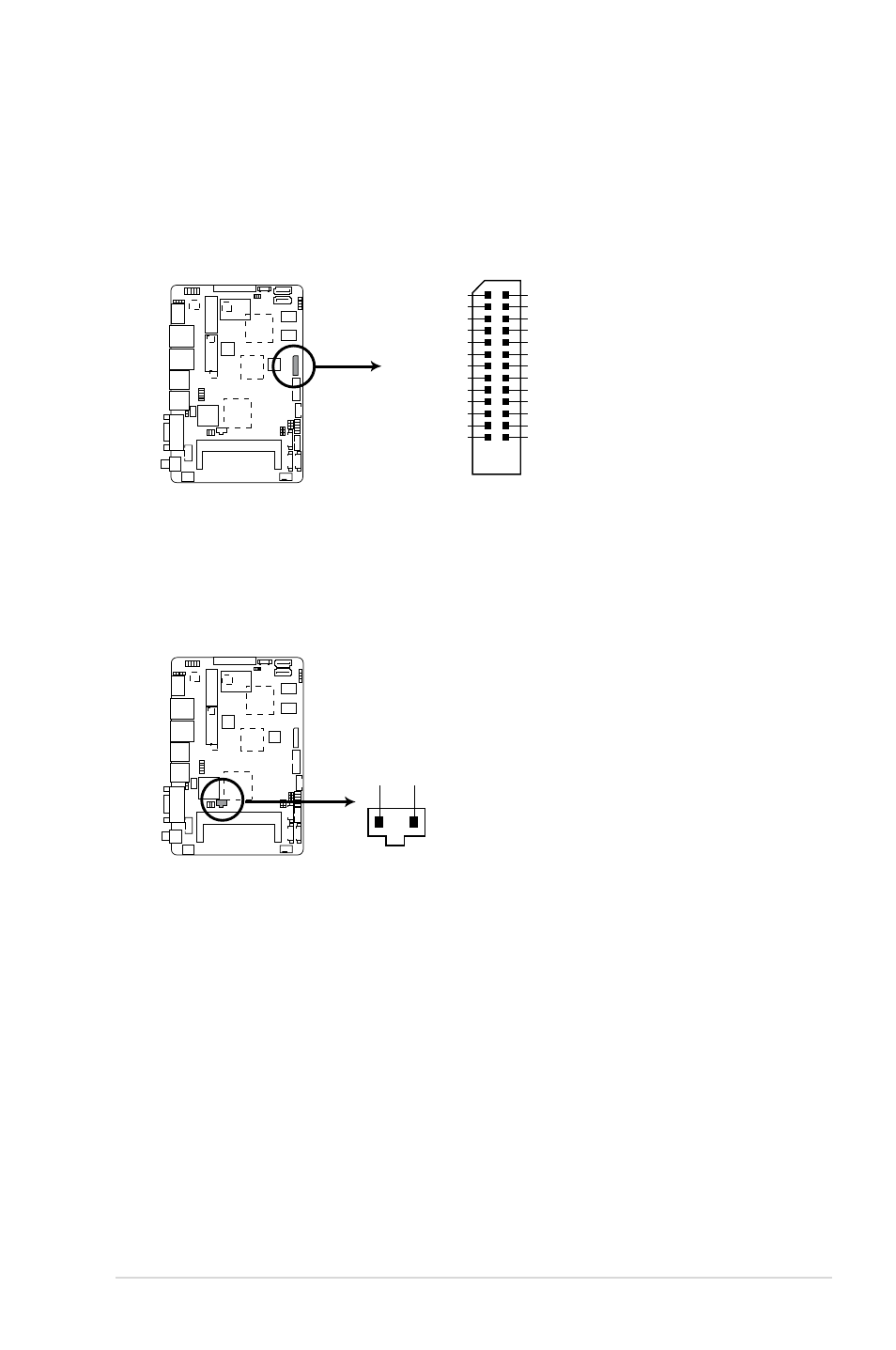

EPC-CV1 Series LVDS connector
LVDS1
PIN 1
L_BRIGHTNESS1
LVDSB_L0N_GPU
LVDSB_L0P_GPU
GND
LVDSB_L1N_GPU
LVDSB_L1P_GPU
GND
LVDSB_L2N_GPU
LVDSB_L2P_GPU
LDDC_CLK
LVDSB_L3N_GPU
LVDSB_L3P_GPU
GND
LVDSB_LCLKN_GPU
BKLT_EN
LVDS_DN0
LVDS_DP0
+VDD_LVDS1
LVDS_DN1
LVDS_DP1
+VDD_LVDS1
LVDS_DN2
LVDS_DP2
LDDC_DATA
LVDS_DN3
LVDS_DP3
+VDD_LVDS1
LVDS_CLKN
EPC-CV1 Series Battery connector
GND
BATT1
PIN 1
BATTERY
