EPC-CV1 Series 2-20

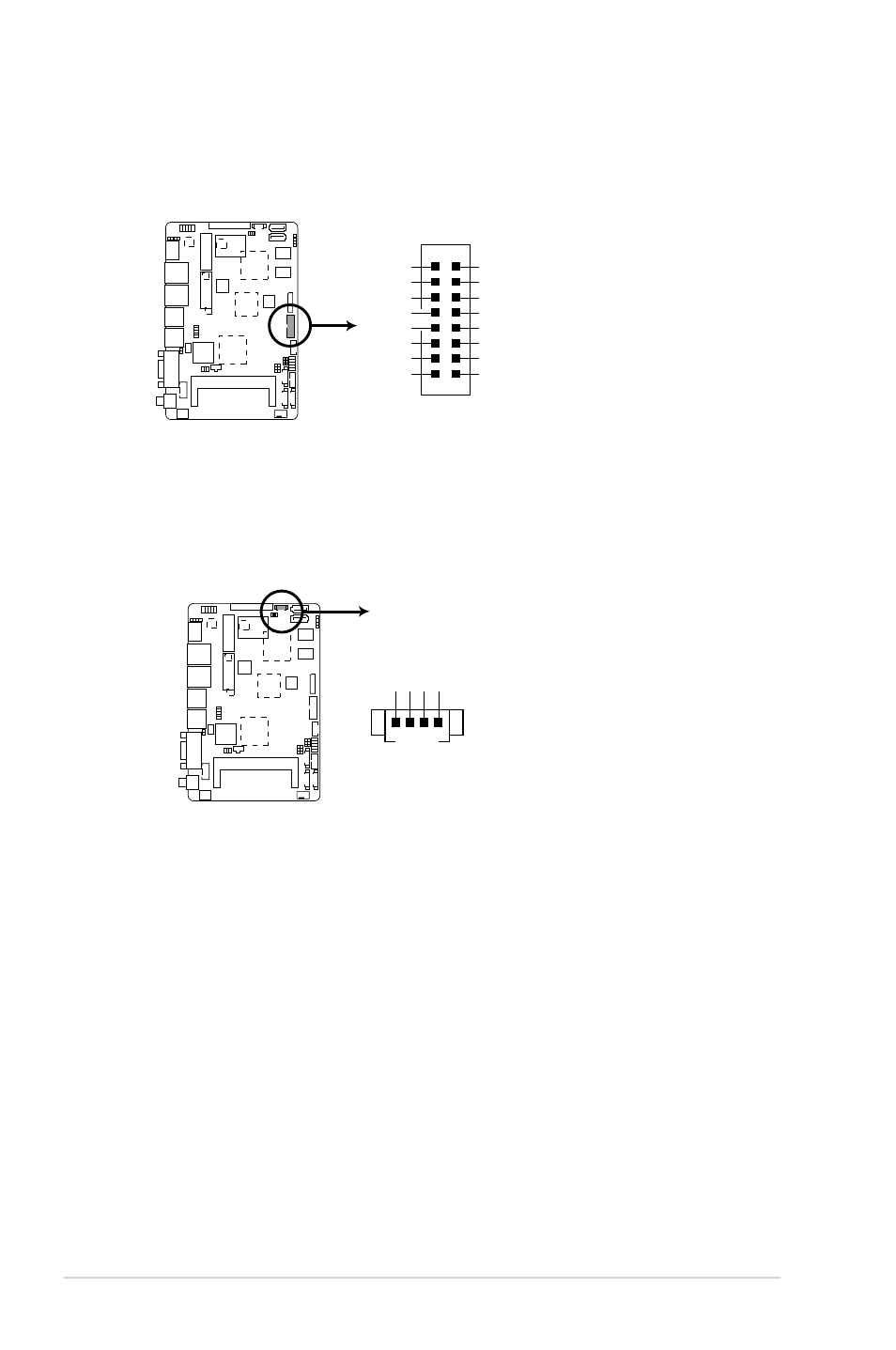

15. Audio amplifier connector [WtoB CON 4P, 1.25mm, S/T, SMT // ACES /
85025-04701] (4-pin AMP_CON1)
This connector is for an external audio amplifier.
PIN 1
LOUTP LOUTN ROUTN ROUTP
AMP_CON1
EPC-CV1 Series Speaker out connector
14. VGA connector [BOX HEADER 2X8P S/T 2.0mm SMT // PINREX / 52M-90-
16GBE0] (16-pin VGA)
This 16-pin connector is for a VGA monitor or other VGA-compatible devices.
PIN 1
VGA
+5V
GND
NC
RDDCA_DATA_R
R_HSYNC
R_VSYNC
RDDCA_CLK_R
GND DAC_R
DAC_G
DAC_B
NC
GND
NC
GND
GND
EPC-CV1 Series VGA connector
