Page 27
2-19
Chapter 2: Motherboard information

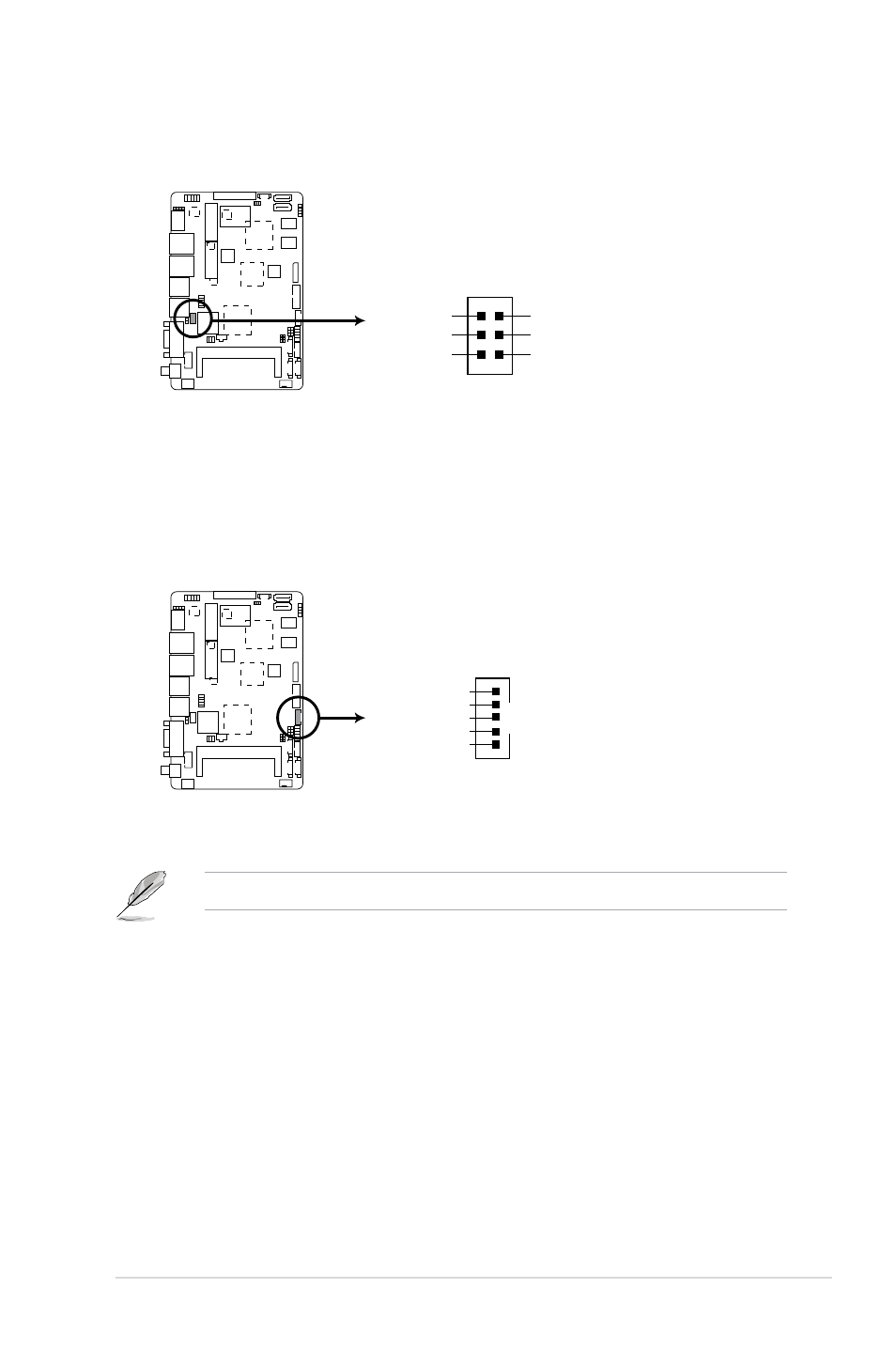

12. PS/2 keyboard/mouse connector (6-pin KBMS1)
This connector is for an IBM PS/2-compatible keyboard or mouse.
13 Backlight inverter power connector [WAFER HD 5P S/T 2.0mm WHITE /
PINREX / 721-81-05TW00] (5-pin INV1)
Connect the backlight inverter power cable to this connector.
NOTE: The backlight inverter power cable is purchased separately.
EPC-CV1 Series PS/2 keyboard/mouse connector
MS_DATA
GND
KB_DATA
MS_CLK
+5V
KB_CLK
KBMS1
PIN 1
+VCC_LVDS1_BKLT
L_BRIGHTNESS1
GND
GND
BKLT_EN
EPC-CV1 Series Backlight inverter power connector
INV1
