2-13

Chapter 2: Motherboard information

2.7.2

Internal connectors

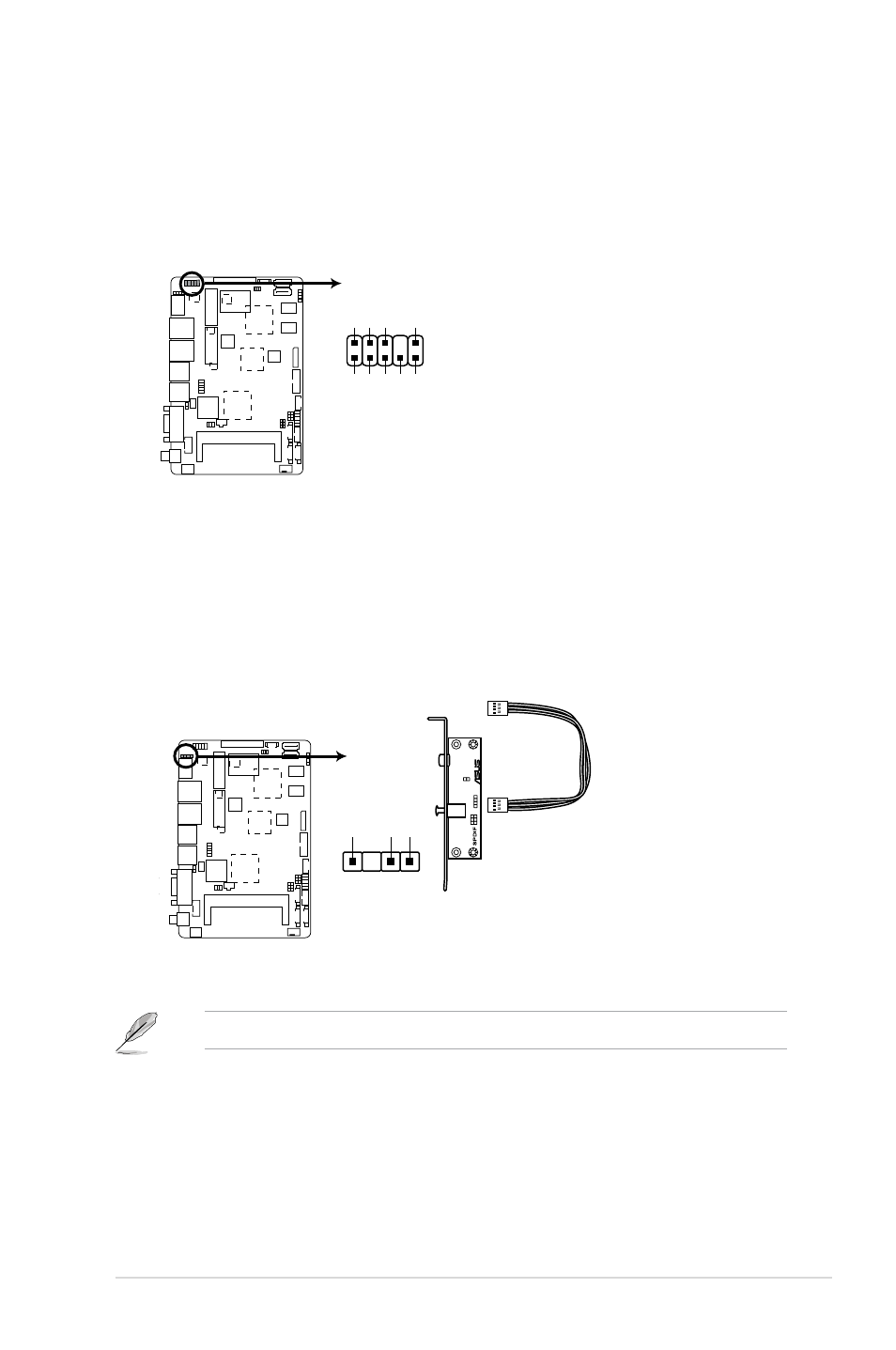

1. Line-Out / Mic-In audio connector (10-1 pin AAFP1)

This connector is for Line-Out / Mic-In audio connection.

2. Digital audio connector (4-1 pin SPDIF_OUT1)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF)

port. Connect the S/PDIF Out module cable to this connector, then install the

module to a slot opening at the back of the system chassis.

NOTE: The S/PDIF module is purchased separately.

AAFP1

GND NC MIC1-JD

LINE1-JD

A_MIC1_L A_MIC1_R

LINE-R

A_JD_FRONT

LINE-L

PIN 1

EPC-CV1 Series Line-Out / Mic-In audio connector

SPDIF_OUT1

+5V

A_SPDIF_OUT GND

PIN 1

EPC-CV1 Series Digital audio connector
