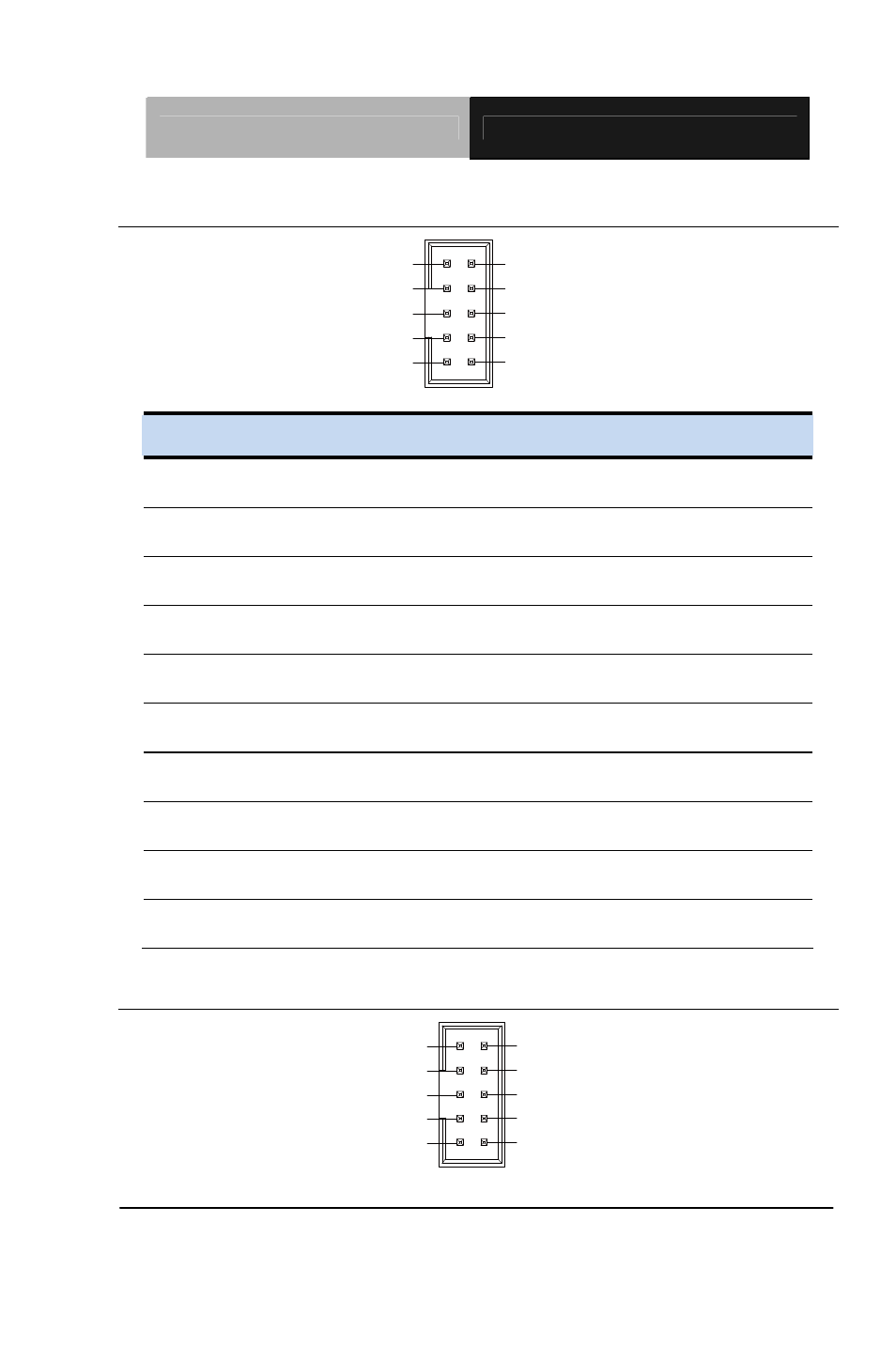

2.22 Ethernet#2 Connector (CN3) (Optional)
MDI0-
MDI1-
GND
MDI2-
MDI3-
MDI0+ 1 2
9 10
MDI1+
GND
MDI2+
MDI3+
Pin Pin Name Signal Type Signal Level
1 MDI0+ DIFF
2 MDI0- DIFF
3 MDI1+ DIFF
4 MDI1- DIFF
5 GND GND
6 GND GND
7 MDI2+ DIFF
8 MDI2- DIFF
9 MDI3+ DIFF
10 MDI3-
DIFF
2.23 Ethernet#1 Connector (CN4) (Optional)
MDI0-
MDI1-
GND
MDI2-
MDI3-
MDI0+ 1 2
9 10
MDI1+
GND
MDI2+
MDI3+
