Page 14

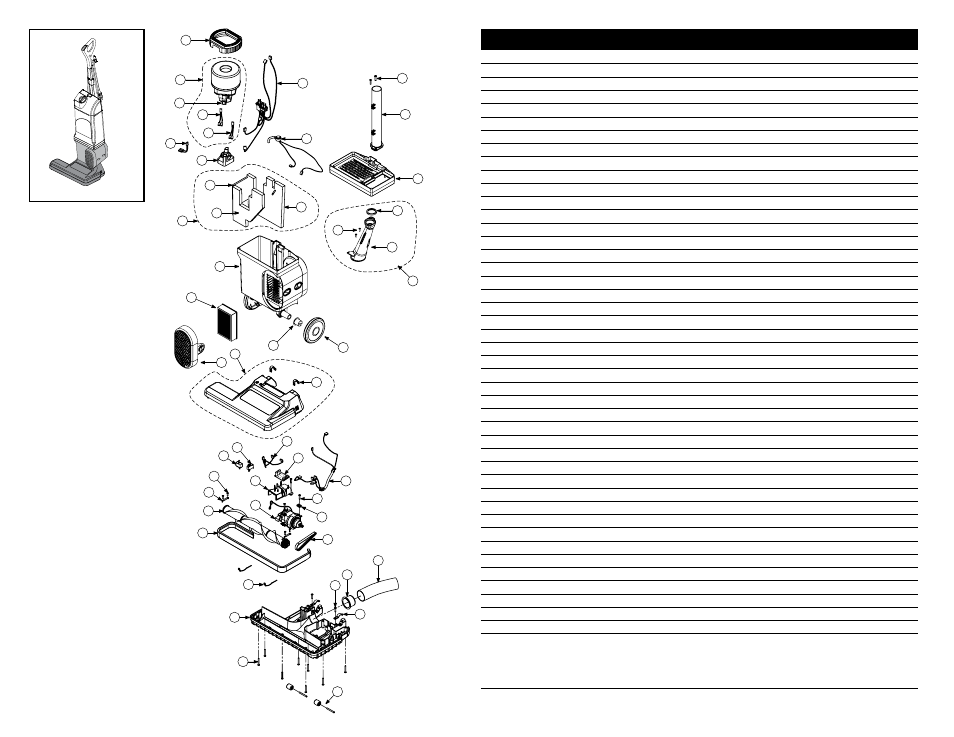

PROFORCE 1500 HEPA ASSEMBLY
No.
Product Name
1
104306 Wheel, Rear (set of 2)
2
104250 Air Duct Assembly
3
104957 Motor Assembly Kit w/Jumpers (includes: C, D, 42)
4
104504 Bearing, Pivot
5
103532 Foam, Sound, Motor Housing Front Panel
6
107257 Motor Housing, Charcoal
7
103533 Foam, Sound, Motor Housing Left Panel
8
103531 Foam, Sound, Motor Housing Rear Panel
9 107255 Bulkhead, Dark Grey
10 104253 Seal, Lower Air Duct , Nitrile
11 104249 Motor Mount, Upper Nitrile
12 104247 Motor Mount, Lower Nitrile
13 107005 HEPA Cartridge
14 107258 Cover, Filter Cartridge, Charcoal
15 104578 Air Duct, Upper
16 104209 Screw, Phillips, 4mm x 12mm, F/Upper Air Duct (set of 2)
17 104267 Screw, Phillips, 4mm x 12mm, F/Lower Air Duct (set of 2)
18 105488 Motor Housing Sound Filter Kit, (includes: #5, 7, 8)
19 105489 Air Duct Kit (includes: #2, 10, 17)
20 107282 Power Nozzle Cover w/Detent Springs & Decals (includes: #40)
21 104279 Switch, Safety, Power Nozzle Lockout
22 104212 Circuit Breaker
23 104496 Screw, Phillips, 3.5mm x 13mm, F/Brush Retainer (set of 4)
24 104499 Retainer, Brush Roll
25 104216 Brush Roll, Power Nozzle, 14"
26 104218 Bumper, Power Nozzle, Vinyl
27 104500 Brace, Formed Wire, F/Power Nozzle Base
28 104221 Baseplate, Power Nozzle
29 104497 Screw, Phillips, 4mm x 35mm F/Base Cover (set of 8)
30 834363 Wheel, Front Idler Replacement Kit
31 104503 Clamp, Rear Wheel
32 104495 Screw, Phillips, 4mm x 19mm F/Powerhead (set of 3)
33 104227 Sleeve, Hose, Air Duct
34 104230 Hose, Power Nozzle to Air Duct, Lower
35 104217 Belt, Drive, F/Brush Roll
36 104506 Motor, Power Nozzle with Crimps
37 104498 Grommet, Vibration, Power Nozzle Motor, Nitrile
38 104224 Cover, Air Duct, Power Nozzle
39 104226 Board, Vacuum Operation Indicator
40 104507 Spring, Detent, Upright Lock
41 105371 Screw, Phillips, 4mm x 19mm, F/Power Nozzle Motor (set of 2)
42 105281 Carbon Brush Set for Motor
43 105760 Thermal Protector
105755 Wire Harness Kit includes:
A. Sensor, Bag, Full Indicator
D. Harness, Jumper, Red
B. Harness, Wire, Main Power Supply
E. Harness, Wire, Power Nozzle
C. Harness, Jumper, White
F. Harness, Power Nozzle Switch
12
9
15
16
40
8
B
A
3
7
5
C
D
11
42
43
12
18
20
26
27
25
41
E
35
31
30
39
F
37
28
29
24
38
36
22
23
21
34
33
32
6
4
1
17
10
14
2
13
19
