Proforce 1500 hepa assembly – ProTeam ProForce 1500 HEPA User Manual
Page 12
10

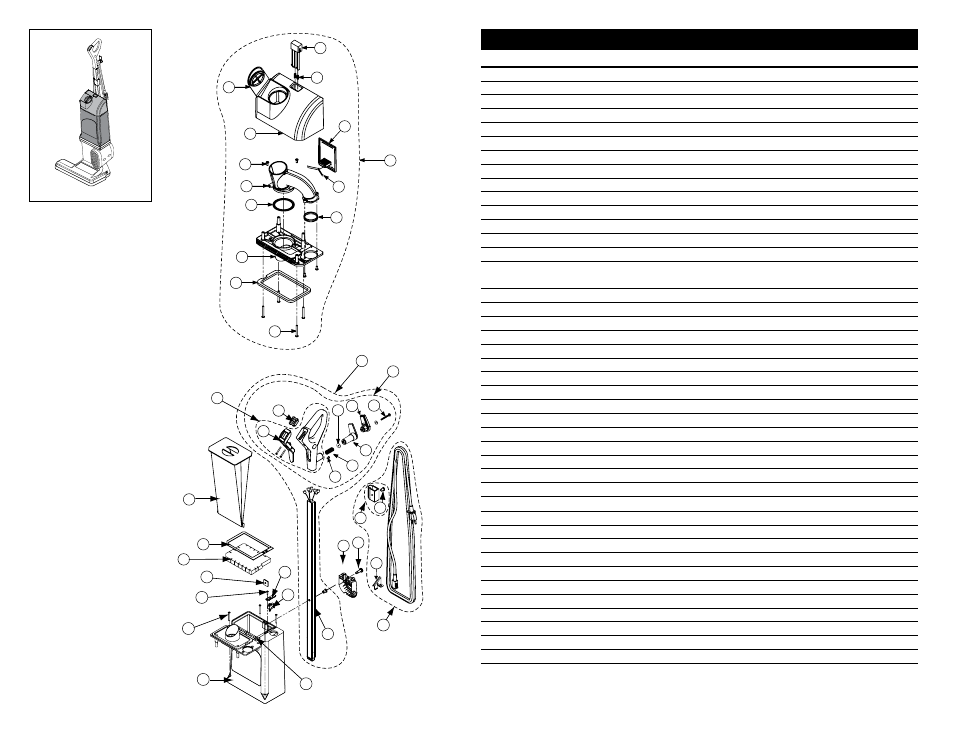

PROFORCE 1500 HEPA ASSEMBLY
No.
Product Name
1 104569
Cover, Bag Housing, Grey
2
104570
Plate, Bag Cover Nozzle
3
104571
Duct, Crossover, Bag Cover
4
104574
Plug, Access Port
5
104575
Seal, Crossover Duct/Bag Cover Nozzle Plate, Lower
6
104576
Seal, Crossover Duct, Inlet
7
104232
Latch, Release, Bag Cover
8
104243
Flex Plate, Bag Cover Latch
9
104241
Seal, Gasket, Bag Cover
10 104233
Spring, Release Button, F/Bag Cover Latch
11 104242
Spring, Bag Cover Latch
12 104577
Screw, Phillips, 4.2mm x 9.5mm (set of 4)
13 104493
Screw, Phillips, 4mm x 35mm (set of 4)
14 105491
Filter Cover Kit, w/Riveted Hinge and 6 Rivets (includes: #1-13)
15 107284
Bag Housing Assembly, Grey, w/Riveted Hinge and Decal
Includes Bag Cover Nozzle Plate
16 104491
Rivet F/Bag Housing Assembly
17 104284
Cord, Power, w/Strain Relief Clasp, 50' Yellow (includes: #33, 42)
18 103483
Intercept Micro Filter
19 104281
Filter, Double Layer, Motor Intake
20 104738
Seal, Gasket, Bag Housing
21 104283
Switch, Filter, Lock-Out
22 104282
Cover, Switch, Filter Lock-out
23 105075
Screw, Phillips, 2.9mm x 13mm, F/Switch Cover
24 104509
Screw, Phillips, F/Handle Assembly 4mm x 10mm x .07 Pitch
25 104268
Bracket, Cord Wrap
26 104269
Spring, Compression, Cord Wrap Bracket
27 104270
Washer, Compression Spring, Cord Wrap Bracket
28 104271
Screw, Cord Wrap, 4mm x 45mm Phillips Round Head
29 106740
Handle Bezel w/Screws
30 107289
Handle, Carry
31 106615
Handle, Tube Assembly Complete (includes: # 37, 38)
32 104259
Plate, Handle Nut
33 105091
Clasp, Strain Relief Kit w/Fastener (includes: # 39)
34 104493
Screw, Phillips, 4.2mm x 38mm
35 104266
Screw, Handle Assembly
36 105147
Switch, Rocker, On/Off
37 104264
Bushing, Handle Tube
38 106614
Handle Kit (includes: # 24, 25, 26, 27, 28, 36, 40, 41)
39 105320
Fastener
40 107073
Handle Bezel Assembly (includes: # 29)
41 107093
Impact Bumper
42 107203
Cord Retention Clip
42
18
19
20
29
30
31
35
36
37
38
14
7
10
11
6
8
13
12
9
5
4
2
3
1
15
16
21
22
32
23
34
26
25
27
28
41
24
40
17
33
39
