8 ProTeam
FILTER ASSEMBLY/REPLACEMENT
(cont.)
Removal and Installation of Qwik Lock™ Fine Dust Cartridge Filter
Filter Removal:

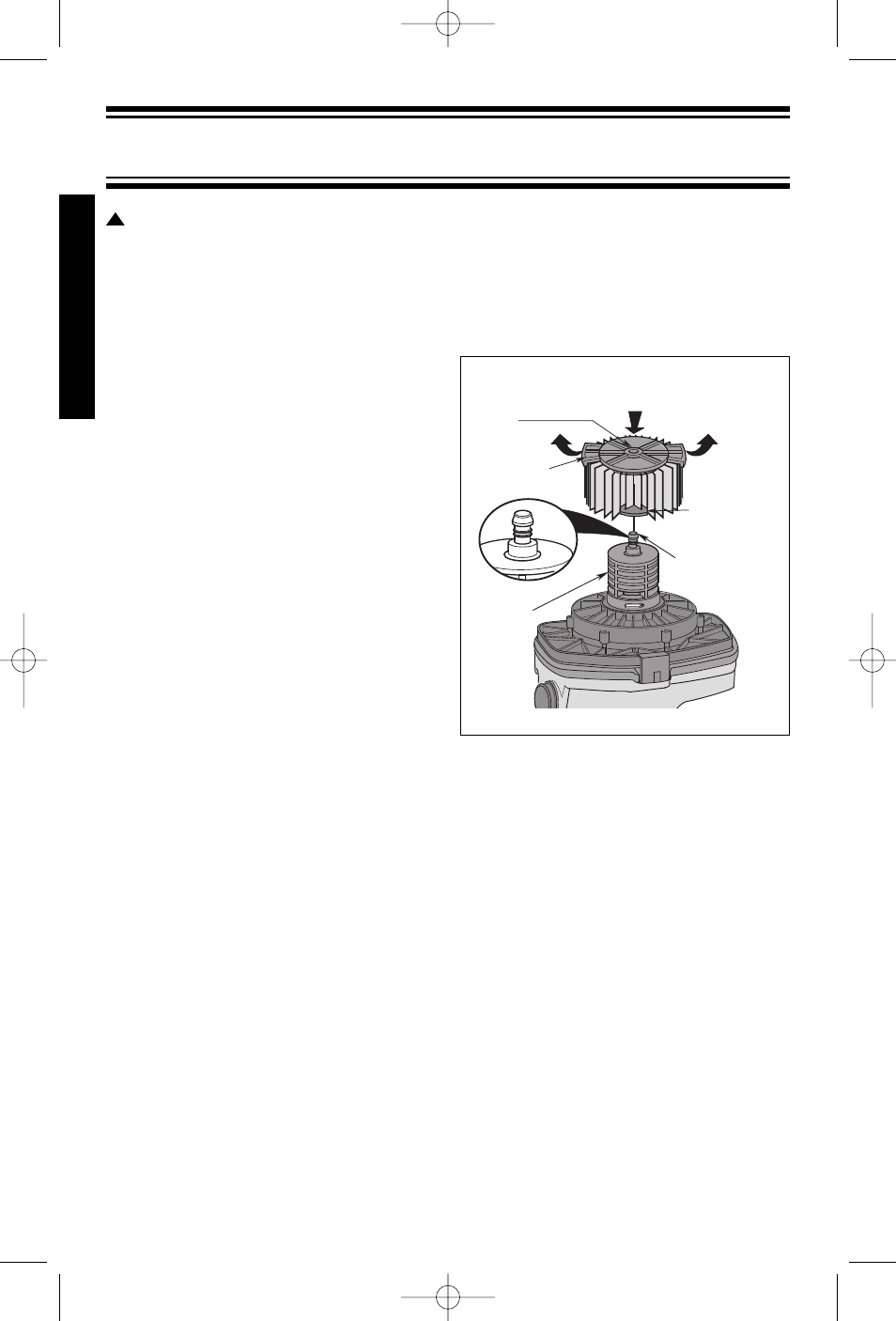

1. Hold the filter tabs of the Qwik Lock
filter in each hand (Figure C).
2. With one thumb on the Qwik Lock
stud, which protrudes through the
integrated filter plate, lift up on
the filter tabs while pushing down
on the stud.
3. This action will cause the filter to
release from the filter cage. Slide
filter off cage.
Filter Installation:
1. Carefully slide the Qwik Lock filter
over the filter cage and press down
on the outside edge of the filter until
the rubber gasket on the bottom of
the filter seats securely around the
base of the filter cage and against
the lid.
2. Align the small center hole in the top of the filter over the Qwik Lock™ stud on
the filter cage. Press firmly on top of the filter near the stud to allow the filter
to snap over the ball on the end of the stud. The filter is now attached.
NOTE: Failure to properly seat the bottom gasket could result in debris bypassing
the filter.
Rubber
Gasket at
Bottom of
Filter
(cutaway
view)
Filter
Cage
Filter
Tabs (2)
Integrated Filter
Plate with Center
Hole PUSH
DOWN
PULL
UP
Qwik Lock™
Stud
Figure C
WARNING: Do not operate without filter cage and float, as they prevent liquid
from entering the impeller and damaging the motor.
IMPORTANT: To avoid damage to the blower wheel, always reinstall the filter
before using the Vacuum for dry material pick-up.
!
