Infinity Drain S-DGAS 9996 Series Submittal Sheet - Manual (Page 2)

S
-

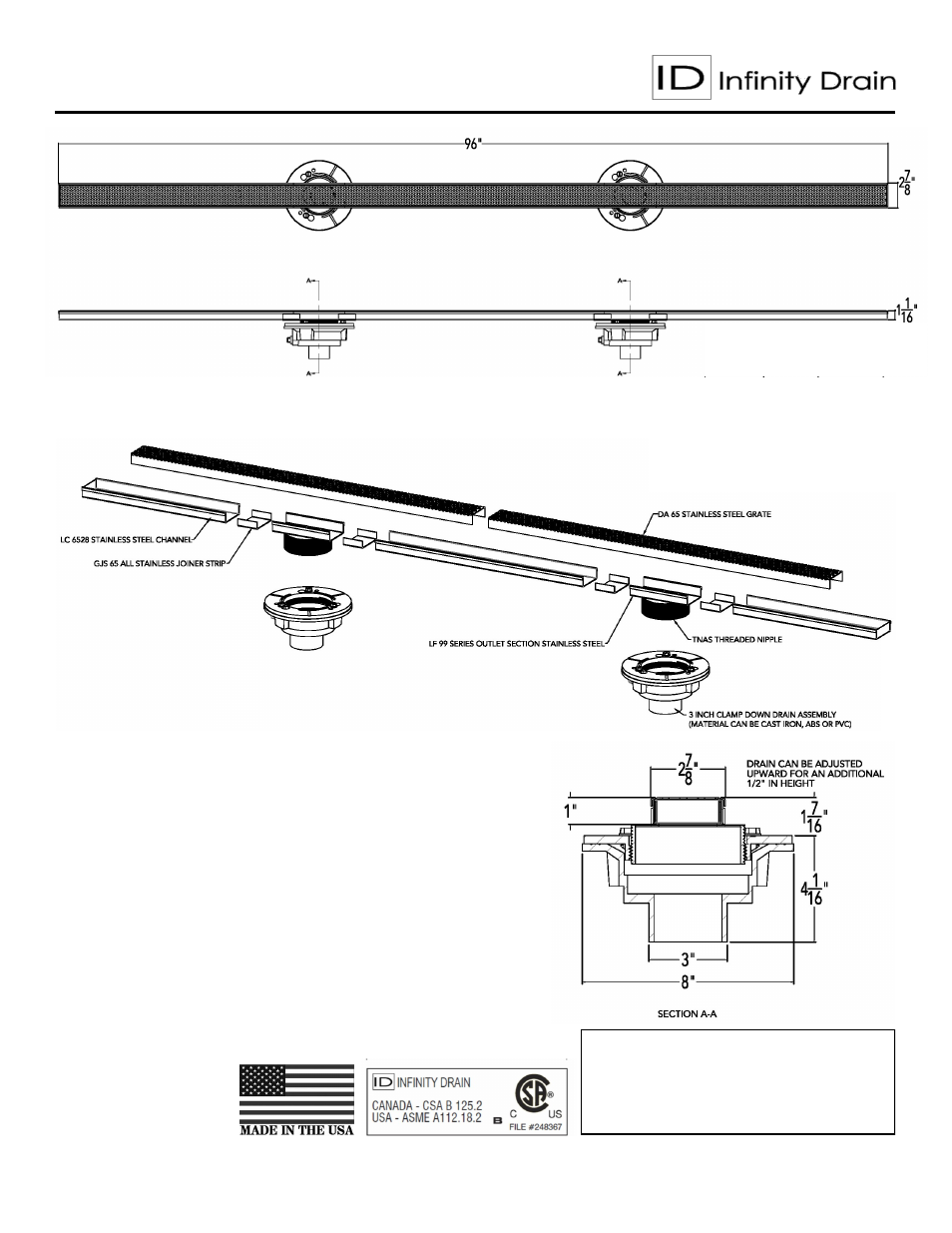

DGAS 9996 Specifications
DGAS 9996
96″ Complete Kit Includes:
(96 ⅛" l x 2 ⅞" w x 1" h)
2 - DA 6548 Stainless Steel Grate
1 - LC 6588 Stainless Steel Channel
2 - LF 99 8" Outlet Section Stainless Steel
4 - GJS 65 All Stainless Joiner Strip
1 - Sikaflex 1a Construction Sealant
2 - CDI 43 Cast Iron Drain body
Dimension are subject to Manufacturers tolerance and change without notice. We can assume no responsibility for use of superseded or void data.
Infinity Drain
18 Secatoag Avenue
Port Washington, NY 11050
Phone: 516.767.6786
Fax: 516.740.3066
www.InfinityDrain.com
REV. 08.01.2013
Note: Installer must verify all rough-in
dimensions prior to installation and consult
local and national codes. Conformity and
compliance to local and national codes
are the responsibility of the installer.
Page 2 of 2
