Installation and operation, cont’d, Genlock setup, Vsc 150 • installation and operation – Extron Electronics VSC 150 User Guide User Manual

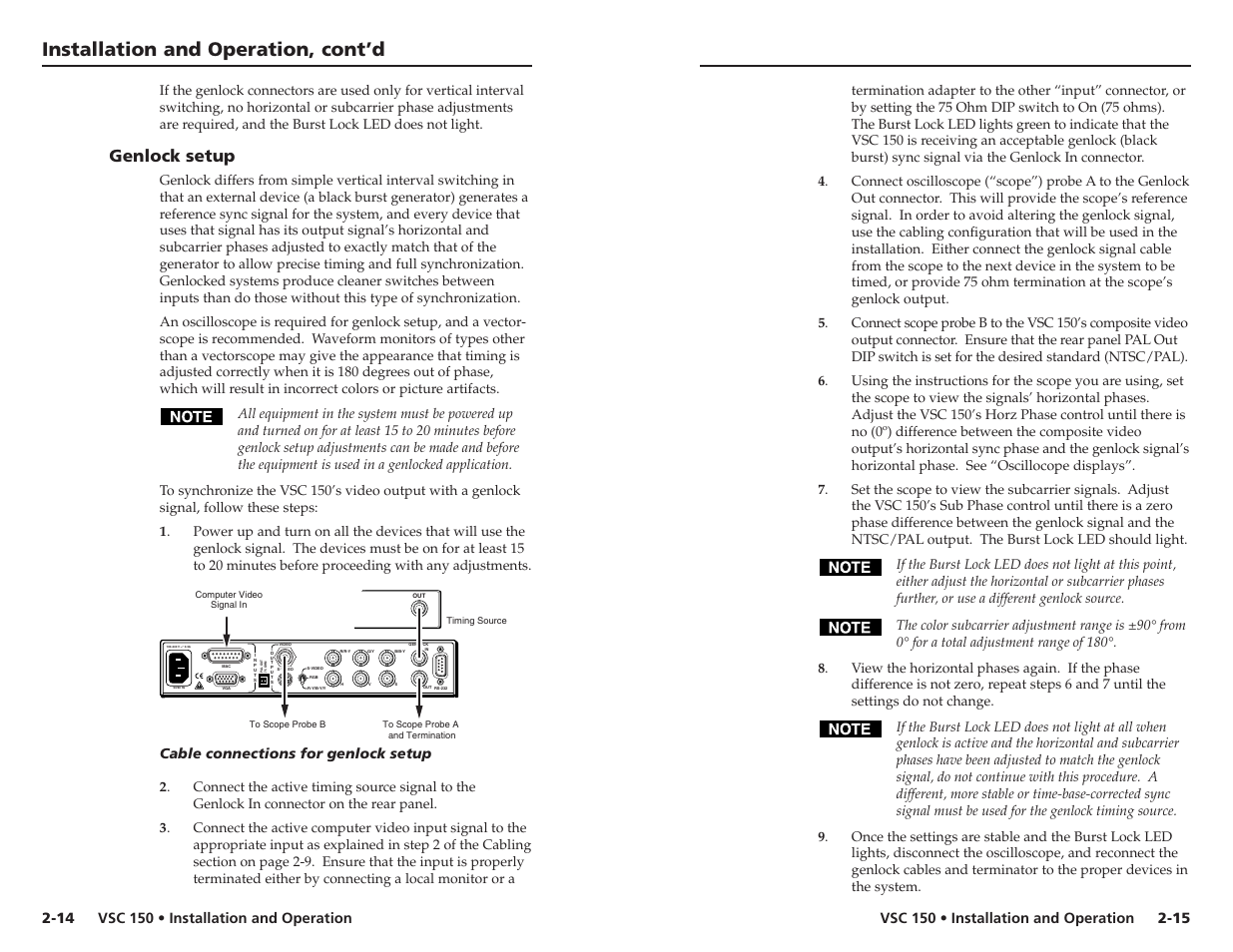

Page 13: Cable connections for genlock setup
