YCS SW6 MX • Installation and Operation

YCS SW6 MX • Installation and Operation

Installation and Operation, cont’d

2-5

2-4

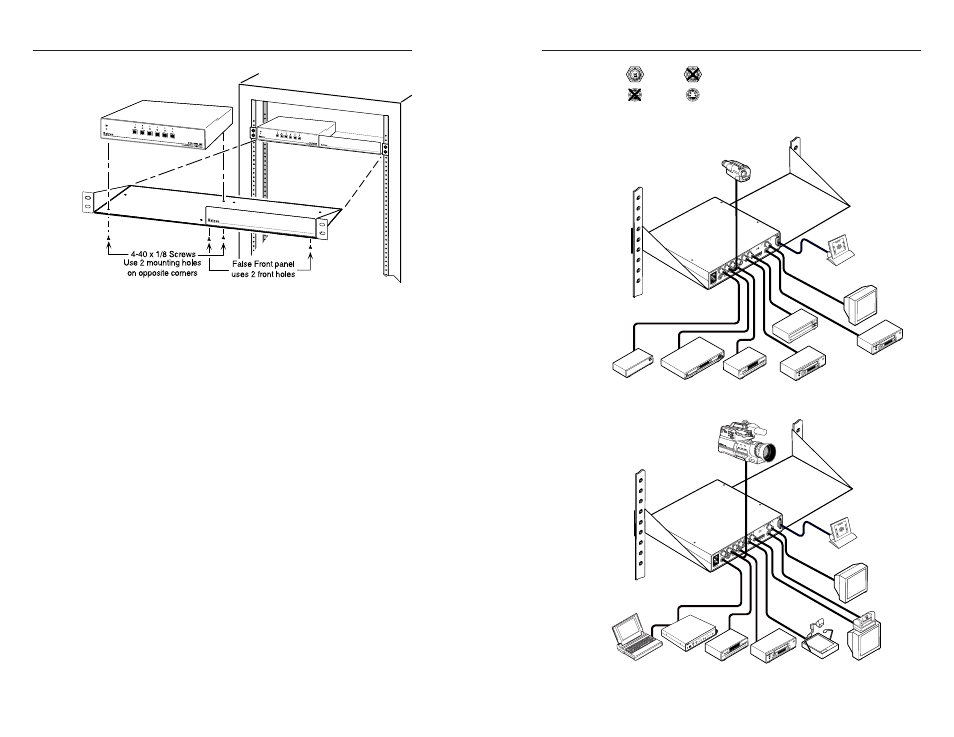

Figure 2 — Mounting the switcher

3.

If a false front panel is required, mount it on the shelf
using the front two holes.

Installing the rubber feet

The switcher ships with four uninstalled rubber feet. Install the
rubber feet only if you are not rack-mounting the switcher. To
install the rubber feet, do the following:

1.

Turn the switcher upside down and place it on a flat
surface.

2.

Remove the protective backing from a rubber foot.

3.

Place the rubber foot on one corner of the switcher’s
bottom surface, and press it into place.

4.

Repeat steps 2 and 3 to install a rubber foot on each of the
remaining corners of the switcher.

5.

Turn the switcher right side up and place it in the desired
location.

Cabling the switcher

Use high resolution cable for all video input and output
connections. See page A-4 for Extron’s high-resolution cables.

To cable the YCS SW6 MX switcher, connect the input and
output devices to the switcher using figures 3, 4, and 5 as
a guide.

Figure 3 — Input and output cabling

Figure 4 — YCS SW6 MX application diagram

Figure 5 — Video conferencing application

RS-232 Control

DVD Players

Cable Box

DSS Receiver

Monitor

VCR

VCR

Laserdisc Player

Video Camera

YCS SW6 MX

1 2

3 4

5 6

7 8

Composite

S-video

RS-232 Control

DVD Players

Laptop

Extron

VSC 100GX

Preview
Monitor

VCR

Document

Camera

Videoconferencing

System

Video Camera

YCS SW6 MX

1 2

3 4

5 6

7 8
