Extron Electronics UPB 25 Security Hardware Kit - Part 70-555-01 Installation User Manual
Before installing the security hardware kit, Included parts

Installation Notes
Before installing the Security Hardware Kit
The UPB 25 is shipped assembled, with standard, non security screws. Before starting to replace these screws with those in
this security hardware kit, it is helpful to separate the UPB 25 into its two main parts; the adapter plate (see figure 1, item A),
and the projector mounting bracket (see figure 1, item B). If you have already installed the UPB 25, you will need to do the
following;
1
.
Remove the projector assembly from the adapter plate.
2
.
Remove the projector from the mounting bracket.
3
.
Remove the adapter plate from the projector pole.
Refer to the User's Manual supplied with the UPB 25, to take down a previous installation.
Once the unit is disassembled into its main parts, follow the instructions overleaf to replace the standard screws with those
from the Security Hardware Kit.
Adapter Plate
A
Projector Bracket
B
40-477-01 (4)
40-476-01 (4)
40-475-01 (4)
40-474-01 (4)
40-479-02 (4)
40-479-01 (12)
40-487-01 (4)
100-365-01 (1)
100-364-01 (1)
993052 (2)
40-180-01 (12)
40-180-03 (12)
40-477-01 (4)
40-476-01 (4)
40-475-01 (4)
40-474-01 (4)
40-479-02 (4)
40-479-01 (12)
40-487-01 (4)
UPB 25 Security Hardware Kit - Part # 70-555-01
This UPB 25 Security Hardware Kit helps secure the projector installation against theft. To install the Hardware Kit, follow
the instructions and diagrams on this sheet. We recommend this is done before starting the installation of the UPB 25
(Universal Projector Bracket). Once completed, follow the instructions in the supplied User's Manual to install the UPB 25.

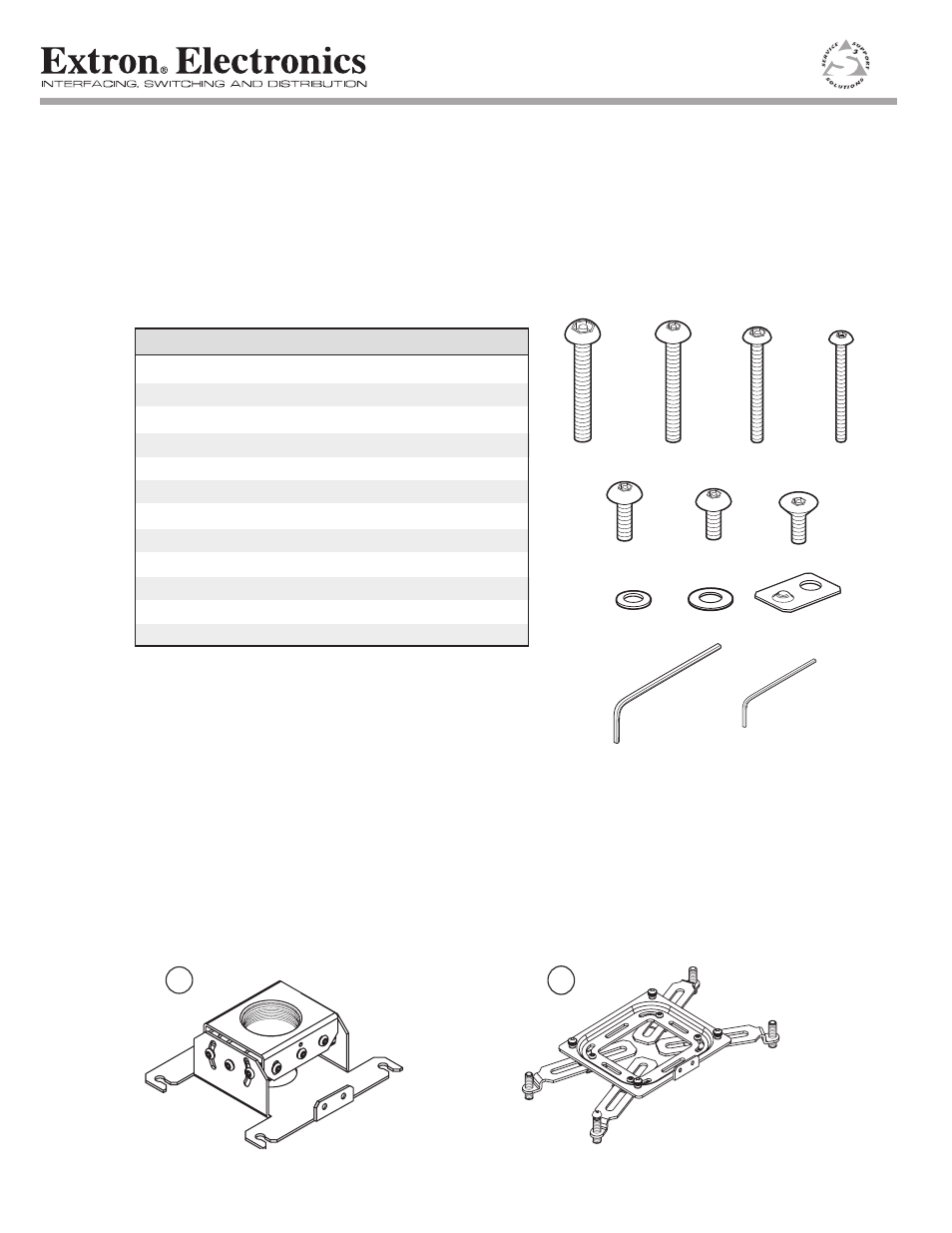

Included Parts
These items are included with each Security Hardware Kit, and are shown below for ease of identification. Check to see all
the parts are present. If any are missing or damaged, contact Extron for replacements.
Included parts
Part number
Screw, stainless steel, M6-1.0, qty, 4
40-477-01
Screw, stainless steel, M5-0.8, qty, 4
40-476-01
Screw, stainless steel, M4-0.7, qty, 4
40-475-01
Screw, stainless steel, M3-0.5, qty, 4
40-474-01
Screw, stainless steel, 1032, 1/2", qty, 4
40-479-02
Screw, stainless steel, 1032, 3/8", qty, 12
40-479-01
Screw, stainless steel, 1024 3/8", qty, 4
40-487-01
#10 Washer, stainless steel, qty, 12
40-180-03
#10 Washer, black oxide, qty, 12
40-180-01
Steel Plate Access Cover, qty, 2
993052
Hex Wrench, 5/32", qty, 1
100-365-01
Hex Wrench, 3/32", qty, 1
100-364-01
Figure 1 The two main parts of the UPB 25 Universal Projector Bracket
