VCM 200 EU and VCM 200 MK • Setup Guide (Continued)
Extron USA - West
Headquarters
+800.633.9876
Inside USA and
Canada Only
+1.714.491.1500
+1.714.491.1517 FA
X
Extron USA - East
+800.633.9876
Inside USA and
Canada Only
+1.919.863.1794
+1.919.863.1797
FAX
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron Japan
+81.3.3511.7655
+81.3.3511.7656
FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566
FAX
Extron Middle East
+971.4.2991800
+971.4.2991880
FAX
© 2011 Extron Electronics All rights reserved.
www.extron.com
68-2089-02
Rev. A
09 11
Cabling
Press the VCM 200 into the trim plate and
connect the cables to the rear of the device.
Wire as shown
.
A = Pin 1 = 10 VDC reference voltage.
B = Pin 2 = volume and mute control with
DC voltage. The range is 0 to 10 V, where
0 V is mute and 10 V is maximum volume.
C = Pin 3 is ground.
To complete installation, snap the device and trim plate combination into the secured
adapter plate, taking care not to trap any cables.
Source
Rear Panel
VCM
Rear Panel
Red
Black
Ground
10V
VOL/MUTE
1
2
3
VOLUME
MUTE
A B C
POWER
12V
1.5A MA
X
OUTPUT
70V
INPUT
S
L (MONO)
(MONO)
R
REMOTE
VOL/MUT
E
MP
A 401-70V
R
L
CLASS 2 WIRING
DO NOT GROUND
OR SHO
RT
SPEAKER OUTPUTS!
10V
50mA
US
LIST
ED
17T
T
AU
DIO
/VID
EO
AP
PAR
ATU
S
®
Extron
MPA 401
Mini Power
Amplifier
Extron
MIX 301
Three Channel
Mixer
Wireless
Microphone System
MIX 301
3 CHANNE
L
MIXE
R
IN
2
MIX OU
T
IN 1
IN
3
12V
0.5a
MA
X
DVD Player
Left
Right
Extron
SI 3CT LP
Full-Range
Ceiling Speakers
Extron
VCM 200 EU
Volume and Mute
Controller
VOLUME
MUTE

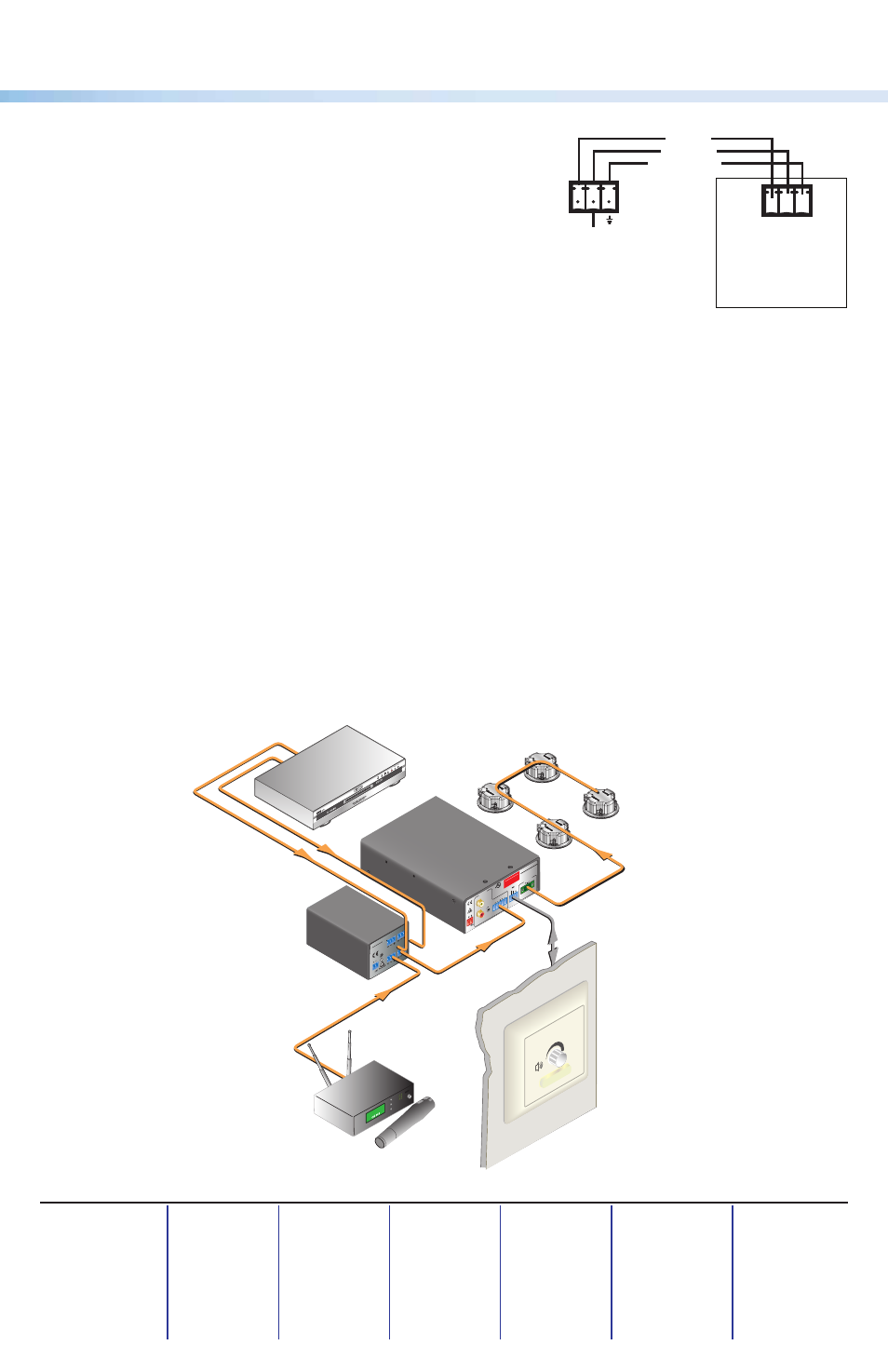

Example of a Typical VCM 200 EU Application
Operation
The Mute button toggles between mute and unmute, lights bright red to indicate
mute, and dim white to indicate unmute.
Turn the knob clockwise to increase the volume, and counterclockwise to decrease
the volume.
Audio Level Setting Procedure
To set the system level to not exceed the maximum volume:
1.
Reduce the power amplifier volume to minimum.
2.
Turn the Volume knob clockwise on the VCM 200 to the maximum position.
3.
Slowly turn up the power amplifier to the system volume desired.
