The equalization applied to the SDI-AVR 100’s input signal is
sufficient for an input coaxial cable length of at least 1000 feet (305
meters) of Extron SHR cable or Belden 8281 cable.
The equalization applied to the HDSDI-ACR 100’s input signal is
sufficient for an input coaxial cable length of at least 330 feet (100
meters) of Extron SHR cable or Belden 8281 cable.
Minimum/maximum levels ...... 0.5V to 1.0V p-p with no offset
Impedance .................................... 75 ohms
Return loss .................................... >-15dB @ 0 MHz to 270 MHz
Maximum DC offset .................... ±0.5V
Video processing
Encoder ......................................... 10 bit digital
Frequency response ..................... Luminance ................ 0 to 5.75 MHz, ±0.5dB
Chroma .................... 0 to 2.75 MHz, ±0.5dB
S/N ................................................ >70dB
RGB matrix error ......................... <1%
Video signal characteristics — for color bar output on the
SDI-AVR 100 only
Dot clock ....................................... 27 MHz
Pixel clock accuracy ..................... 30 ppm
Video output
Number/signal type
SDI-AVR 100 .................... 1 composite video and 1 S-video, and
1 analog RGBHV/RGBS/RGsB or component
video (Y, R-Y, B-Y) (switch selectable)
HDSDI-ACR 100 .............. 1 analog RGBHV/RGBS/RGsB or component
video (Y, R-Y, B-Y) (switch selectable)
Connectors
SDI-AVR 100 .................... 1 female BNC (composite video)
1 female 4-pin mini DIN (S-video)
6 female BNC (RGB, component video, or S-video)
HDSDI-ACR 100 .............. 6 female BNC
Levels ............................................. Composite video ...... 1V p-p (nominal)
S-video .................... 1V p-p/luma, 0.3V p-p/
chroma (nominal)
RGB .................... 0.7V (nominal)
Component video .... Y = 1V p-p; R-Y, B-Y = 1V
p-p (nominal)
Levels depend on the format selected (NTSC, PAL, Betacam).
HDSDI-ACR 100
HDSDI TO VIDEO/RGB CONVERTER
720 P 1080 I 1080 P
FORMAT
1 2 3 4

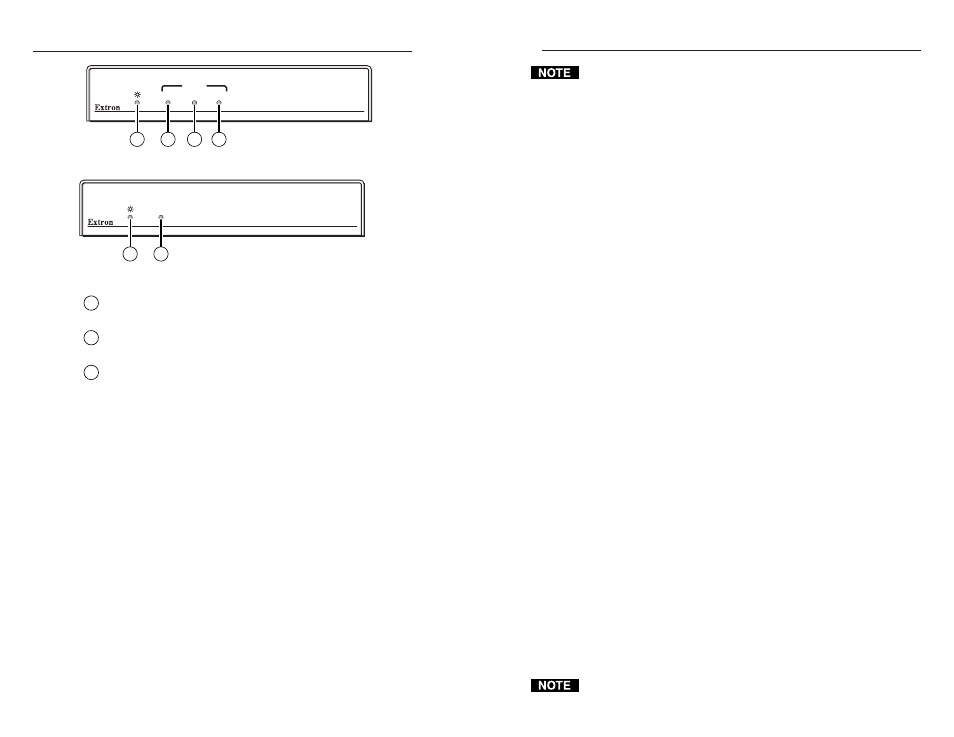

Figure 5 — HDSDI-ACR 100 front panel
SDI-AVR 100
SDI TO VIDEO/RGB CONVERTER
LOCK
1 5
Figure 6 — SDI-AVR 100 front panel
3 1080 I LED (HDSDI-ACR 100 only) — The 1080I LED indicates
that the converter is outputting the HDTV 1080I video format.
4 1080 P LED (HDSDI-ACR 100 only) — The 1080P LED indicates
that the converter is outputting the HDTV 1080P video format.
5 Lock LED (SDI-AVR 100 only) — The Lock LED indicates that
the converter is locked to the 270 Mbs input signal.
Specifications
Video
Differential phase error .............. SDI-AVR 100 ............ <1º
Differential gain error ................. SDI-AVR 100 ............ <1%
Video input and loop-through
Number/signal type
SDI-AVR 100 .................... 1 SDI (4:2:2, SMPTE 259M-C)
HDSDI-ACR 100 .............. 1 HDSDI (SMPTE 292M)
Connectors
SDI-AVR 100 .................... 1 female BNC (SDI input)
1 female BNC (SDI reclocked loop-through)
HDSDI-ACR 100 .............. 1 female BNC (HDSDI input)
1 female BNC (HDSDI reclocked loop-through)
HDSDI-ACR 100 and SDI-AVR 100 • Specifications 7 HDSDI-ACR 100 and SDI-AVR 100 • Specifications
Indicators and Specifications
6
