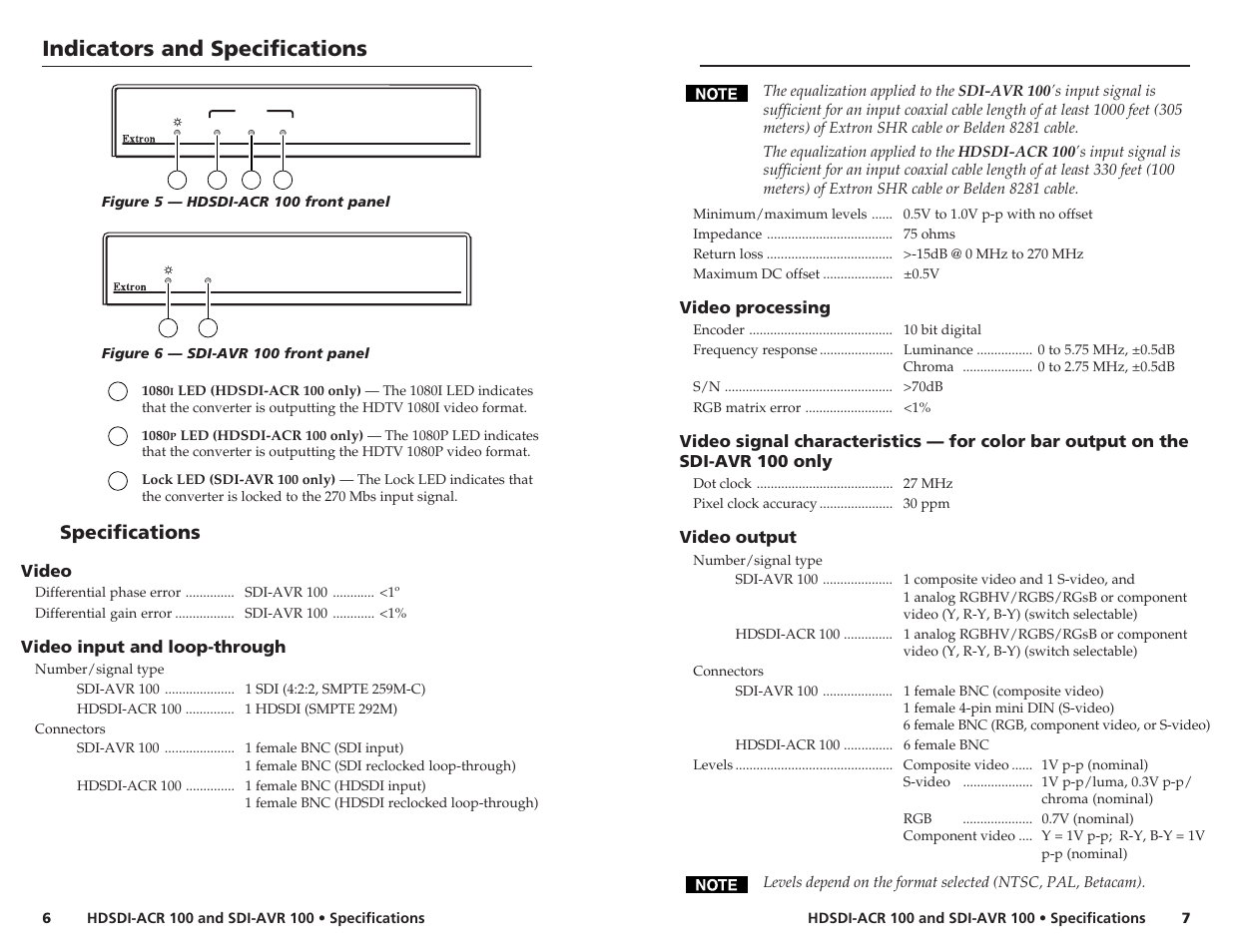

Indicators and specifications, Specifications, Video processing – Extron Electronics SDI-AVR 100 User Guide User Manual
Page 4: Video output, Video, Video input and loop-through
