SS 200
Sync Stabilizer
User’s Guide
68-436-01
Printed in the USA
Specifications
Ceiling
3,4,5 BNC
Input
SS 200
Mounting
Bolt
Projector
Mounting
Bracket
VGA / 3,4,5 BNC
Output To
Projector
Extron Electronics, Asia
41B Kreta Ayer Road
Singapore 089003
+65-226-0015 FAX +65-226-0019
Singapore
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
+31-33-453-4040 FAX +31-33-453-4050
The Netherlands
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
714-491-1500 FAX 714-491-1517
U.S.A.
99-04
68-436-01
First Edition
Printed in the USA
S M

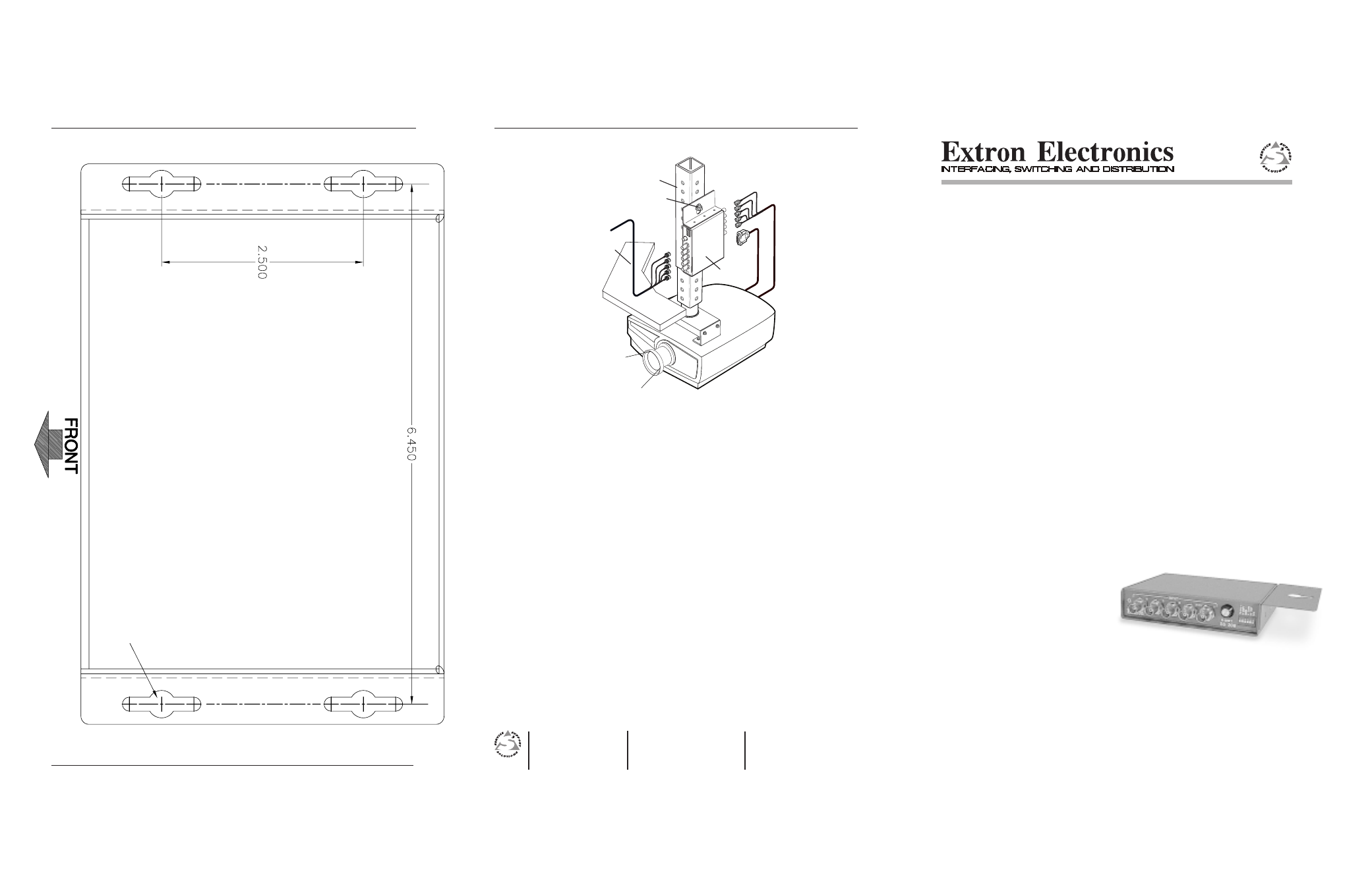

Application Diagram Example
SS 200 Specifications
General
Part Number ................................... 60-285-01
Dimensions .................................... 5.70" W x 4.50" D x 1.25" H
(14.48 cm W x 11.43 cm D x 3.17 cm H)
Shipping Weight ............................. 2 lbs (0.9 kg)
Input Power (external desktop) ...... 12VDC, 0.5A
Operating Temperature .................. 0°C to +50°C (+32°F to +122°F)
Storage Temperature ..................... -40°C to +70°C (-40°F to +158°F)
Humidity .......................................... 10% to 90% noncondensing
Vibration ......................................... NSTA 1A in carton
Safety Certification ......................... CE, UL
Warranty ......................................... Two years, parts and labor
RGB Bandwidth .............................. 300 MHz
Input Signal
Video Level .................................... 0.3 to 1.45 volts p-p
Sync ................................................ RGsB, RGBS, RGBHV
Composite Sync ............................. TTL level
Separate H & V Sync ..................... TTL level
Termination Impedance ................. 75 ohms/510 ohms
Output Signal
Video ............................................... Analog
Video Level .................................... Unity
Sync ................................................ Separate H & V, TTL
Composite, TTL
Termination Impedance ................. 75 ohms
Extron • SS 200 Sync Processor • User’s Guide 4
Installation and Operation
Under desk mounting template
(Requires mounting kit P/N 70-077-01)
All dimensions are in inches
Recommended pilot drill hole size
for supplied screws = 3/32” x 1/4” deep.
