Extron Electronics RGB 116p User Guide User Manual
Rgb 116 interface
RGB 116 Interface
(P/N 60-162-01)
User’s Guide
Extron Electronics, Asia
41B Kreta Ayer Road
Singapore 089003
+65-226-0015 FAX +65-226-0019
Singapore
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
+31-33-453-4040 FAX +31-33-453-4050
The Netherlands
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
714-491-1500 FAX 714-491-1517
U.S.A.
79-04
68-333-01
Rev. B
SM
Specifications
Specifications
Input Video Signal:
.. Analog: .5 to 1.2 volts p-p
.. ECL: .8 to 1 volt p-p
Input Sync Signal:
.. Sync on Green (RGsB)
.. Composite Sync (RGBS)
.. Separate H&V (RGBHV)
Output Signal:
.. Video: .5 to 1 volt p-p
Frequency Compatibility:
.. Horizontal: 15-100 kHz (automatic)
.. Vertical: 30-170 Hz (automatic)
RGB Video Bandwidth:
.. 150 MHz (2.1 nS Rise Time)
Wall Mount Power Supply:
.. 115 VAC, 60 Hz to 15 VDC/900 mA

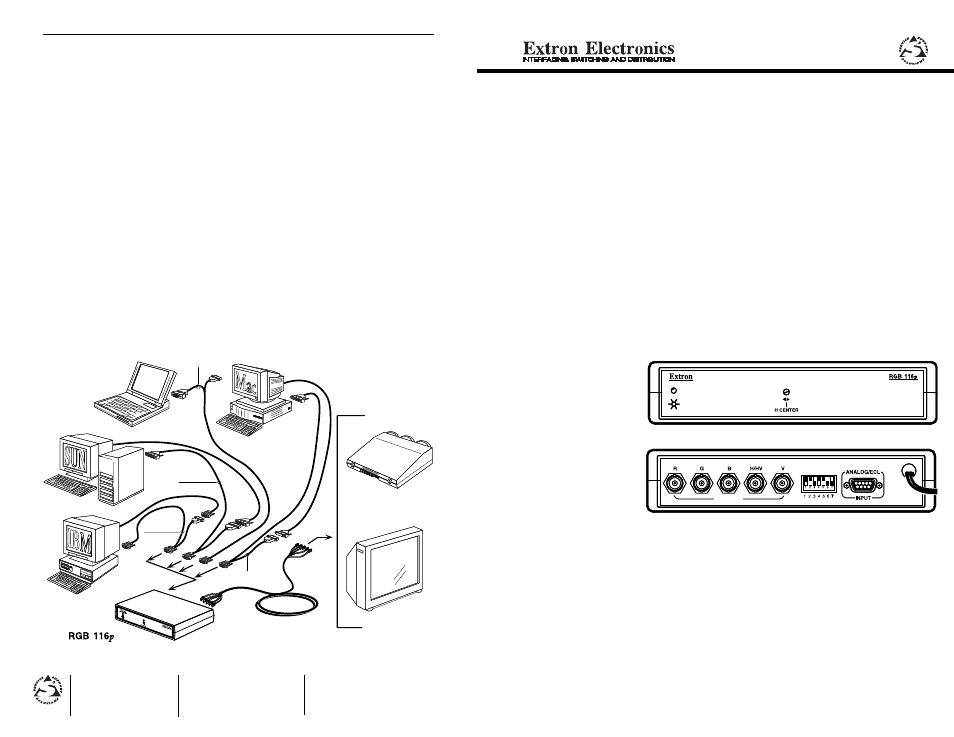

Below is an example of how an RGB 116
p
may be connected to a
computer, through an MBC cable.
Large Screen Projector
Data Monitor
Or
MBC SUN
Sparc HR
MBC IBM
VGA/XGA HR
MBC Mac/
Quadra HR
Laptop or
Notebook
Computer
LBC Mac 35/VGA HR
OUTPUTS
pp
