PCM 240 • Installation Guide (Continued)
4
68-1180-01
Rev D
08 12
Specifications
General
Maximum load capacity ������������������ 50 lbs (22�7 kg)
Material ����������������������������������������� Steel plate, Tie wire: steel, 14 AWG, 70,000 psi tensile strength
Dimensions
Base plate �������������������������������� 25�8” L x 8�0” W x 1�2” D (65�5 cm L x 20�3 cm W x 2�9 cm D)
Product weight ������������������������������� 5�6 lbs (2�5 kg
Shipping weight ����������������������������� 9 lbs (5 kg)
Vibration ���������������������������������������� ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety �������������������������������������� CE; c-UL, UL for use with UL Listed mount and projector; OSHPD anchorage pre-approval
Warranty ���������������������������������������� 3 years parts and labor
NOTE:
Specifications are subject to change without notice.
2X R1.063 [R26.99]
2.00 [50.80]
2X 7.000 [177.800]
2X 6.00 [152.40]
(1.13 [28.58])
9.125 [231.78]
2.50 [63.51]
2.00 [50.80]
8.00 [203.20]
2X 11.187 [284.15]
2X .563 [14.288]
2X 1.47 [37.33]
2X 8.500 [215.90]
2X 14.612 [371.14]
2X .50 [12.70]
25.80 [655.32]
16.331 [414.80]
4X Ш.31 [Ш7.95] THRU
2X 1.00 [25.40]
3.00 [76.20]
4X Ш.19 [Ш4.78] THRU
2X .563 [14.288]
4X R.107 [R2.71]
BOTH SIDES
.60 [15.24]
6.80 [172.72]
2X .12 [3.00]
2X .39 [9.86]
2X 10-32 UNF - 2B
EXTRUDED .13 [3.18]
1.15 [29.21]
4.531 [115.09]
2X 1.13 [28.58]
23.40 [594.36]
23.67 [601.32]
3X Ш.266 [Ш6.76] THRU
.14 [3.48]
2X .70 [17.78]
2X 1.00 [25.40]
3X .260 [6.604] X .500L [12.700]
OBROUND
www.extron.com

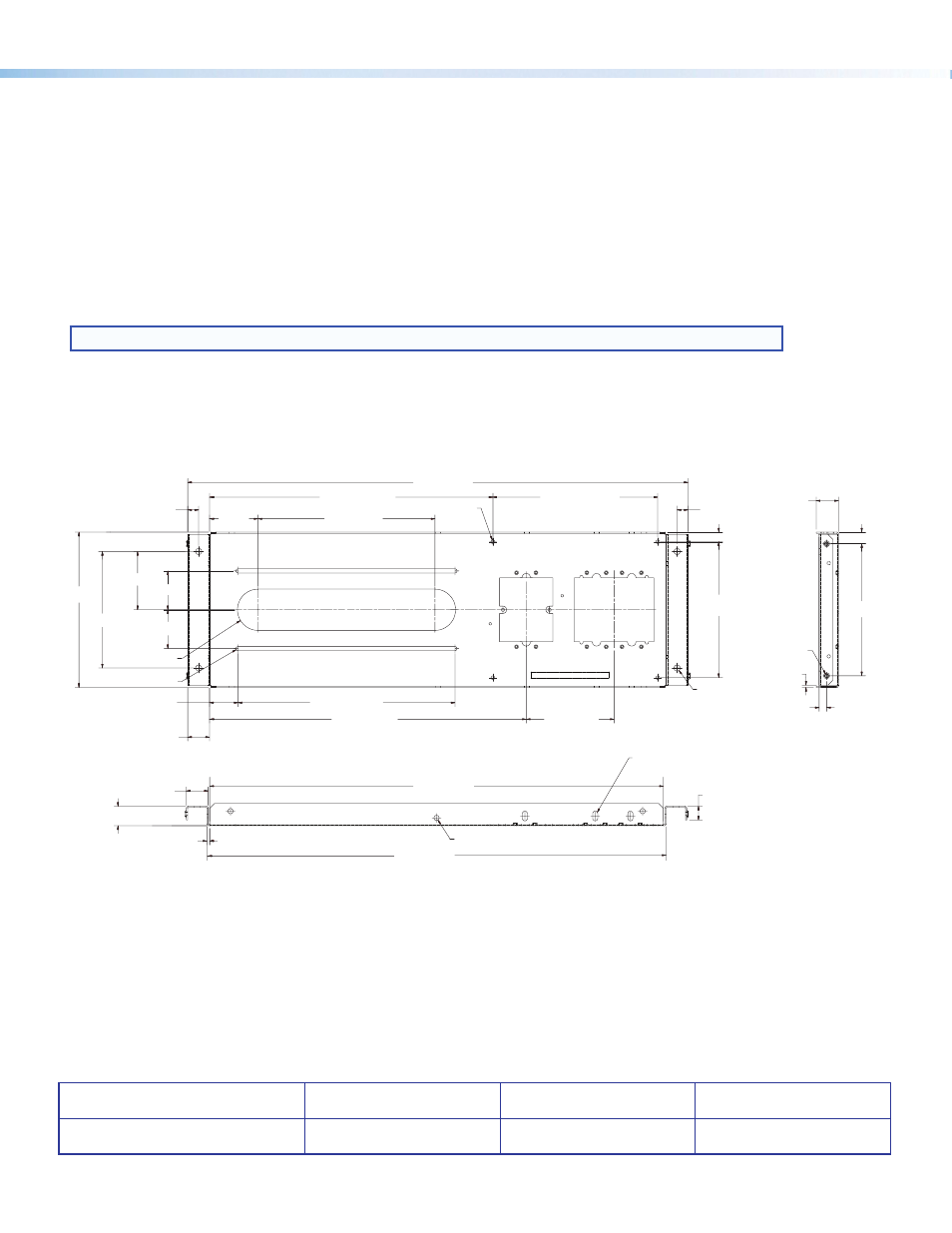

Figure 7.
PCM 240 Dimensions
