3.
Attach the power supply to the underside of
the mounting plate by passing the supplied
tie wraps under the power supply, through
the raised slots in the plate, and back over
the power supply. Ensure the tie wraps sit in
the grooves on the power supply.
Tighten the ties until snug.
4.
With the installed device uppermost,
lift the plate up to the installation
location on the projector pipe. Fit the pipe clamp around the pipe and hold
it against the flange on the mounting plate.
5.
Insert the two hex bolts through the clamp holes and into the flange.
6.
Level the plate and tighten the hex bolts firmly to secure it against the pipe.
Half Rack Device
Power Supply
POWER
12V
3A
MA
X
OUT
PU
T
100V
INPUTS
L
(MO
NO
)
(MO
NO
)
R
REMO
TE
VOL/MU
TE
MP
A 401
-100V
R
L
CLASS
2 W
IRING
DO
NOT G
RO
UND
OR
SHO
RT
SPEAKE
R OU
TPUTS
!
10V
50m
A
US
LISTE
D
17TT
AUD
IO/VID
EO
APPA
RATU
S
®
MPA 401
7.
Attach input and output cables to the mounted device and thread them
through the access hole in the projector pipe to the inputs and the display
device. Use the remaining tie wraps for cable tidying.
CAUTION:
DO NOT thread the power cable through the projector pipe.
Threading the power cable through the pipe violates national
electrical regulations.
8.
Connect the power supply to an electrical outlet and turn on the device.
For configuration and operation, see the user guide for the device.
68-1842-01
Rev A
11 10
PMK 150 • Installation Guide, continued
Extron
USA - West
Headquarters
+800.633.9876
Inside USA / Canada Only
+1.714.491.1500
+1.714.491.1517 FAX
Extron
USA - East
+800.633.9876
Inside USA / Canada Only
+1.919.863.1794
+1.919.863.1797 FAX
Extron
Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040
+31.33.453.4050 FAX
Extron
Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400
+65.6383.4664 FAX
Extron
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
Extron
China
+400.883.1568
Inside China Only
+86.21.3760.1568
+86.21.3760.1566 FAX
Extron
Middle East
+971.4.2991800
+971.4.2991880 FAX
©2010 Extron Electronics. All rights reserved.
www.extron.com
Power Supply
PMK 150

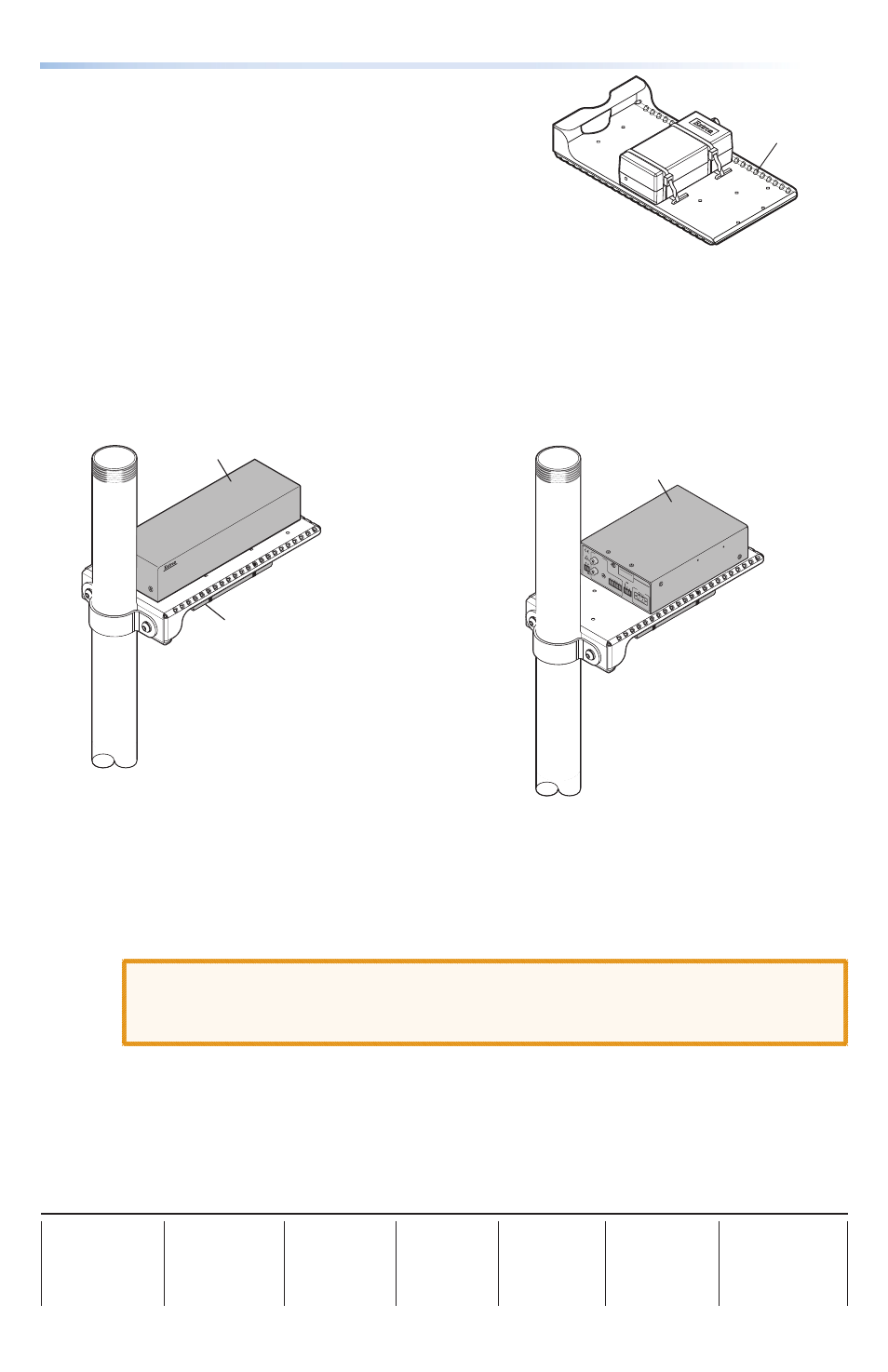

Figure 4.
Half Rack Device (left) and an MPA 401 (right) Mounted on the PMK 150
Figure 3.
Attaching the Power Supply
