PMK 300 Multi-Product Projector Mounting Kit

Installation Instructions

N Only VersaTools products and most IP Link products can be

mounted using the multi-product projector mounting kit.

1

. If necessary, remove the feet from the bottom of the device to be

installed.

2

. Mount the device(s) to any of the bracket’s three mounting

plates. The device(s) can be vertically mounted facing either
up or down, whichever is most convenient. See fi gure 1 on the
other side of this card.

N On the side mounting plates, the device is typically mounted on

the outside of the bracket.
On the front mounting plate, the device is typically mounted on
the inside of the bracket.

a

. For a VersaTools or IP Link device, use two supplied

4-40 x 3/16 screws in opposite (diagonal) corners to
secure the device to the bracket.

b

. For a power supply, use the two included tie wraps to

strap the power supply to the bracket.

N The PMK 300 has a hole in the bottom plate that allows the

projector pole to be inserted through the center of the plate
rather than outside of the plate (see fi gure 2 on the other side of
this card). To install the PMK 300 in this confi guraion, slide
the bracket up from the bottom of the pole before the projector is
installed on the pole.

3

. Affi x the supplied rubber pad to the side of the U-bolt clamping

plate that the projector pole contacts.

4

. Place the U-bolt around the ceiling pole and insert the two legs

of the U-bolt through the slotted holes on the bracket’s clamping
plate and then through the round holes on the backing brace.

For a typical (1.5“ to 2.0“ diameter) pole —

The supplied U-bolt

fi ts a typical ceiling pole.

For a smaller or larger pole —

Locally obtain a U-bolt that fi ts

the ceiling pole. The slotted holes on the bracket can accomodate
a U-bolt for pole sizes from 1.0“ to 2.5“ in diameter.

5

. Secure the bracket to the U-bolt with the included hex nuts,

washers, and lock washers. Use a proper-sized socket to tighten
the hex nuts.

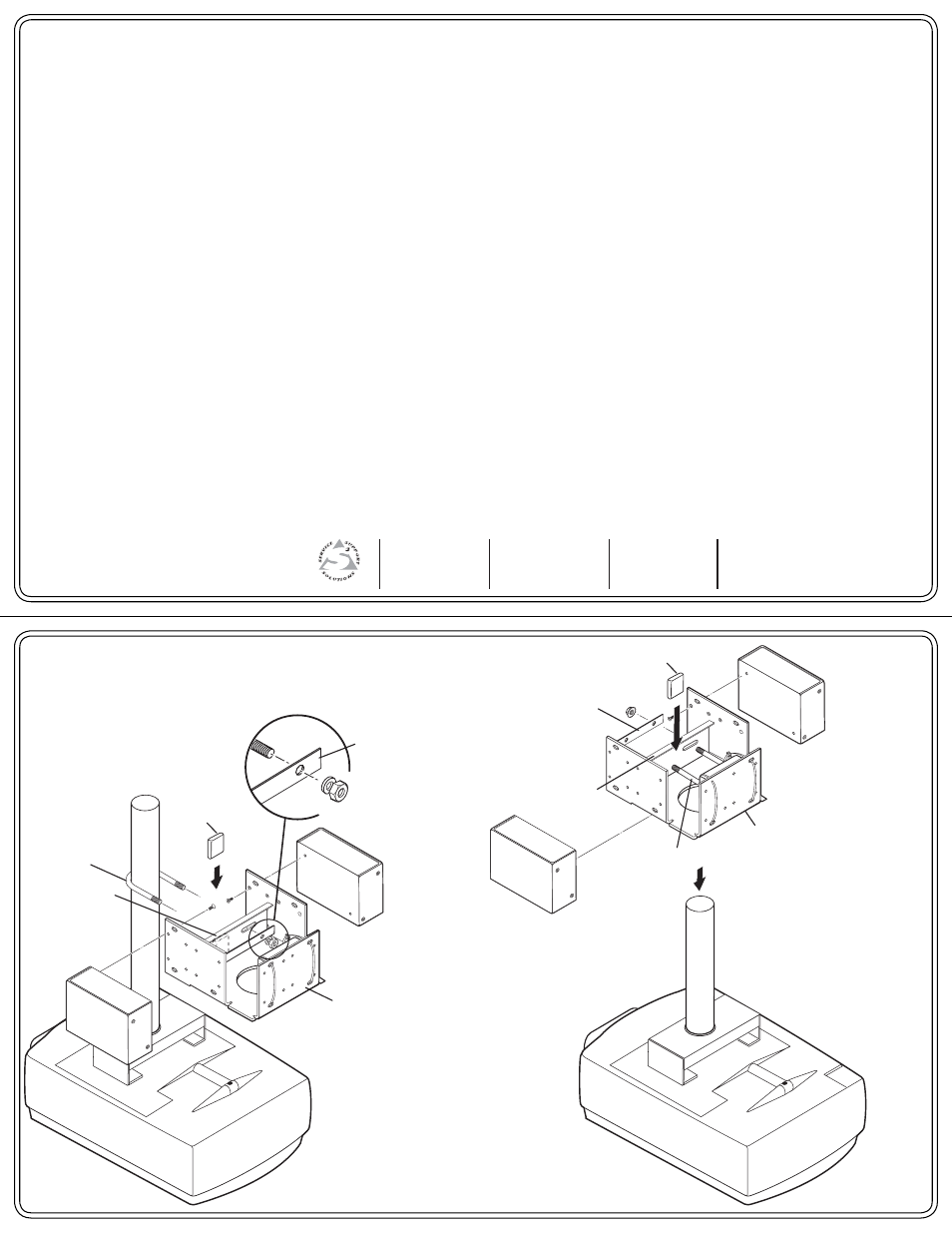

PMK 300 Multi-Product Projector Mounting Kit

Installation Instructions (continued)

Extron
PMK 300

Multi Product Projector
Mount Kit

U-Bolt

Rubber Pad

Backing
Brace

Clamping
Plate

U-Bolt

Extron
PMK 300

Multi Product Projector
Mount Kit

Rubber Pad

Clamping
Plate

Backing
Brace

Figure 1

Figure 2
