PMK 450 Installation Notes, cont’d

PMK 450 Projector Mounting Kit • Installation Notes

PRELIMINAR

Y

©

©

2007 Extron Electronics. All rights reserved.

Extron Electronics, USA

1230 South Lewis Street

Anaheim, CA 92805

800.633.9876 714.491.1500

FAX 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C

3821 AH Amersfoort, The Netherlands

+800.3987.6673 +31.33.453.4040

FAX +31.33.453.4050

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082

Japan

+81.3.3511.7655 FAX +81.3.3511.7656

Extron Electronics, Asia

135 Joo Seng Rd. #04-01

PM Industrial Bldg., Singapore 368363

+800.7339.8766 +65.6383.4400

FAX +65.6383.4664

www.extron.com

9.

Insert the lugs on the bottom plate into the slots

on the top plate and slide the bottom plate into

position

(Figure 4).

10

. Lock the top and bottom plates together with

the security screws

, pass the AC power cord

through the slot at the rear of the top plate.

11. Reattach the front and rear plates (Figure 5).

Lugs (4)

Slots (4)

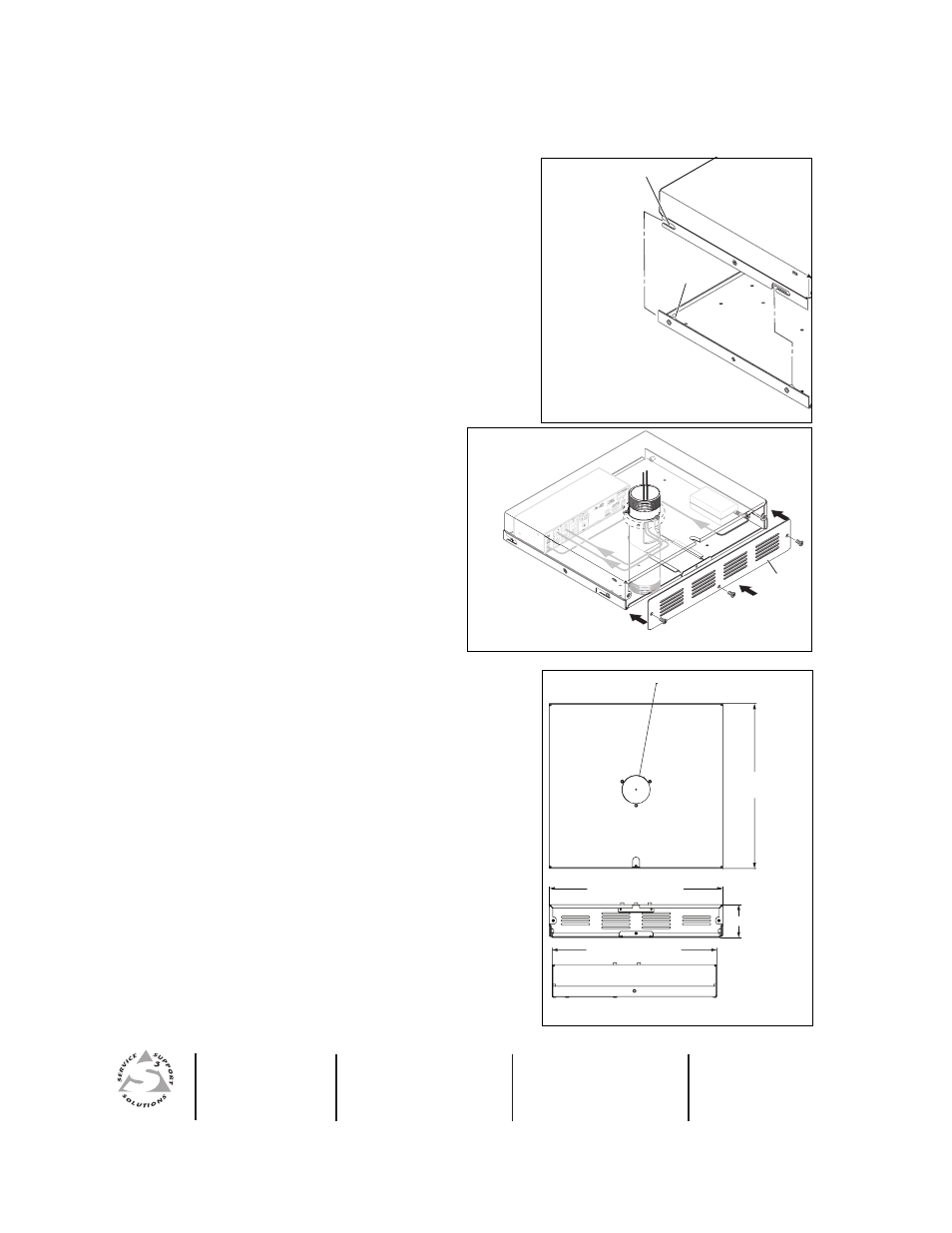

Figure 4 — Attach bottom plate
