Matrix Software, cont’d
CrossPoint Plus Matrix Switchers • Matrix Software
5-6
Using the software
1.
To run the Button-Label Generator program, double-click on the Button-Label
Generator icon (shown at left) in the Extron Electronics group or
folder, and click OK when prompted. The Extron’s Button-Label
Generator window appears (figure 5-3).
2.
Under System selection, choose Mtrx50/MAV/XPoint.
3.
Using normal Windows controls, you can create and print labels that can be
placed in the label windows on the front panel of the switcher.
For information about using the program, you can access the help program by
clicking on the Help menu on the main screen and choosing Show Help.

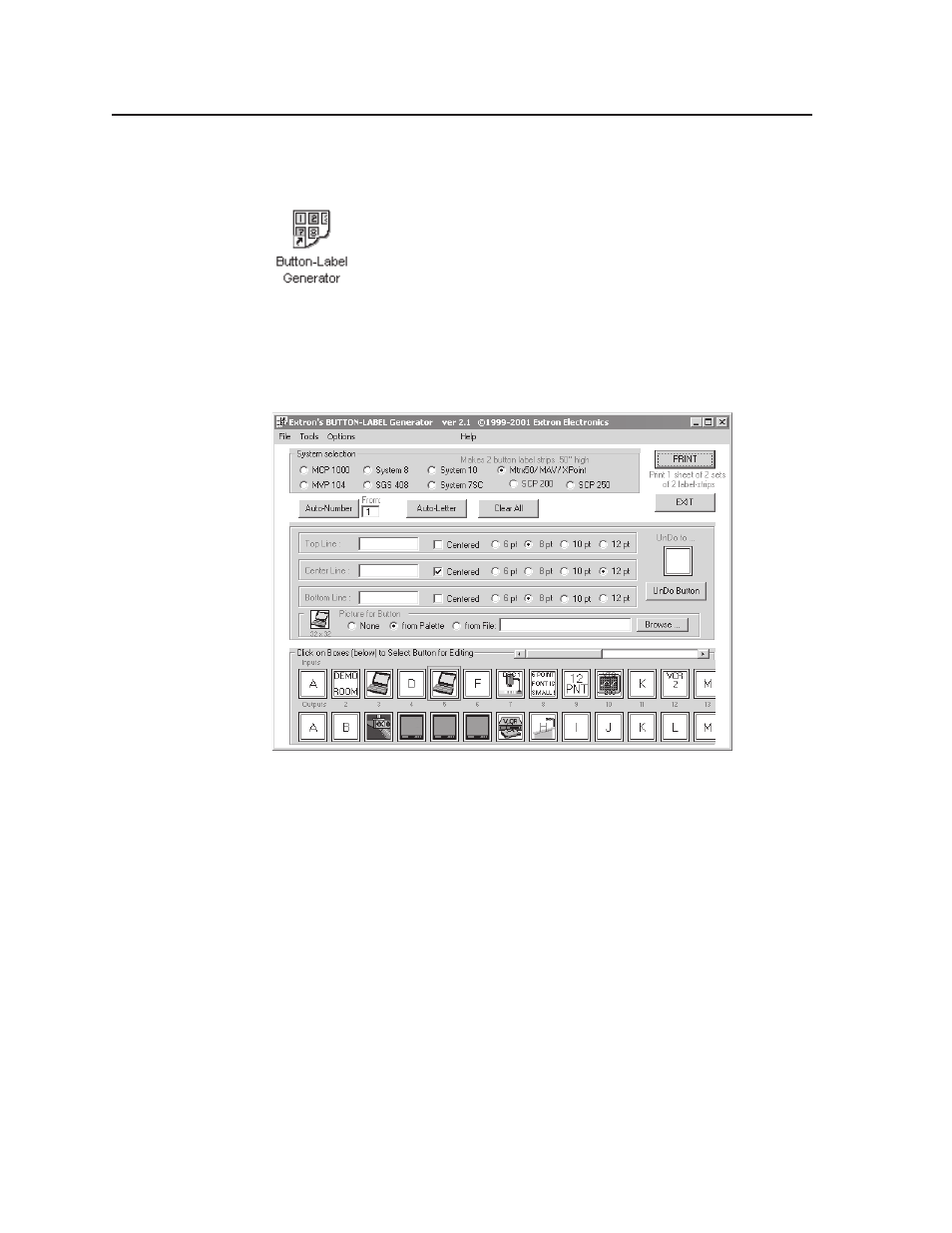

Figure 5-3 — Extron’s Button-Label Generator window
You can also see an example of a completed Extron’s Button-Label Generator
window by clicking on the Help menu on the main screen, choosing Show Help,
and clicking on the Load Demo button.
