BNC Strain Relief Installation Guide

1. Cut the cable to the desired length.

2. Remove the outer jacket as needed to separate the individual coaxial cable lines.

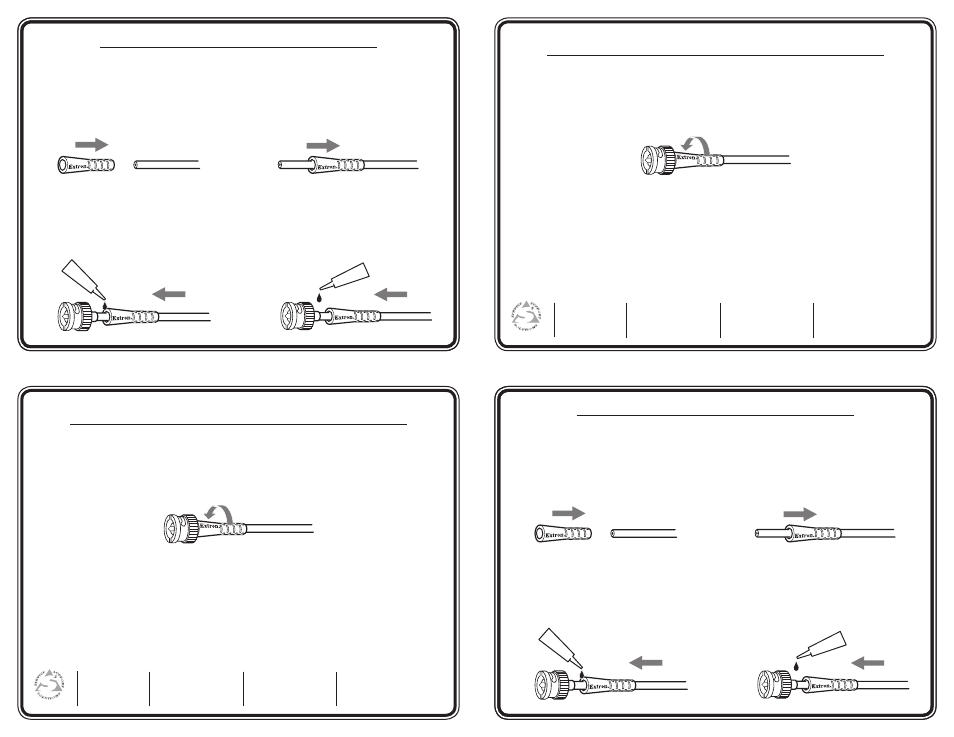

3. For each individual coaxial cable, place a strain relief narrow end first onto the

cable, and slide it a few inches down and away from the cable end.

4. Prepare the cable end as usual, then attach and crimp a BNC connector onto the

individual coaxial cable.

5. Apply one drop of the provided Loctite

®

495 (or comparable) cyanoacrylate glue

to the strain relief (for Mini 59 cable) or to the ferrule (for Mini HR cable),

as shown below. Avoid skin contact with the glue.

75

o

h

m

Mini 59 Cable

75

o

h

m

Mini HR Cable
