Wpb 109 wallplate • installation guide (continued), Direct insertion captive screw, Caution – Extron Electronics WPB 109 Wallplate User Manual

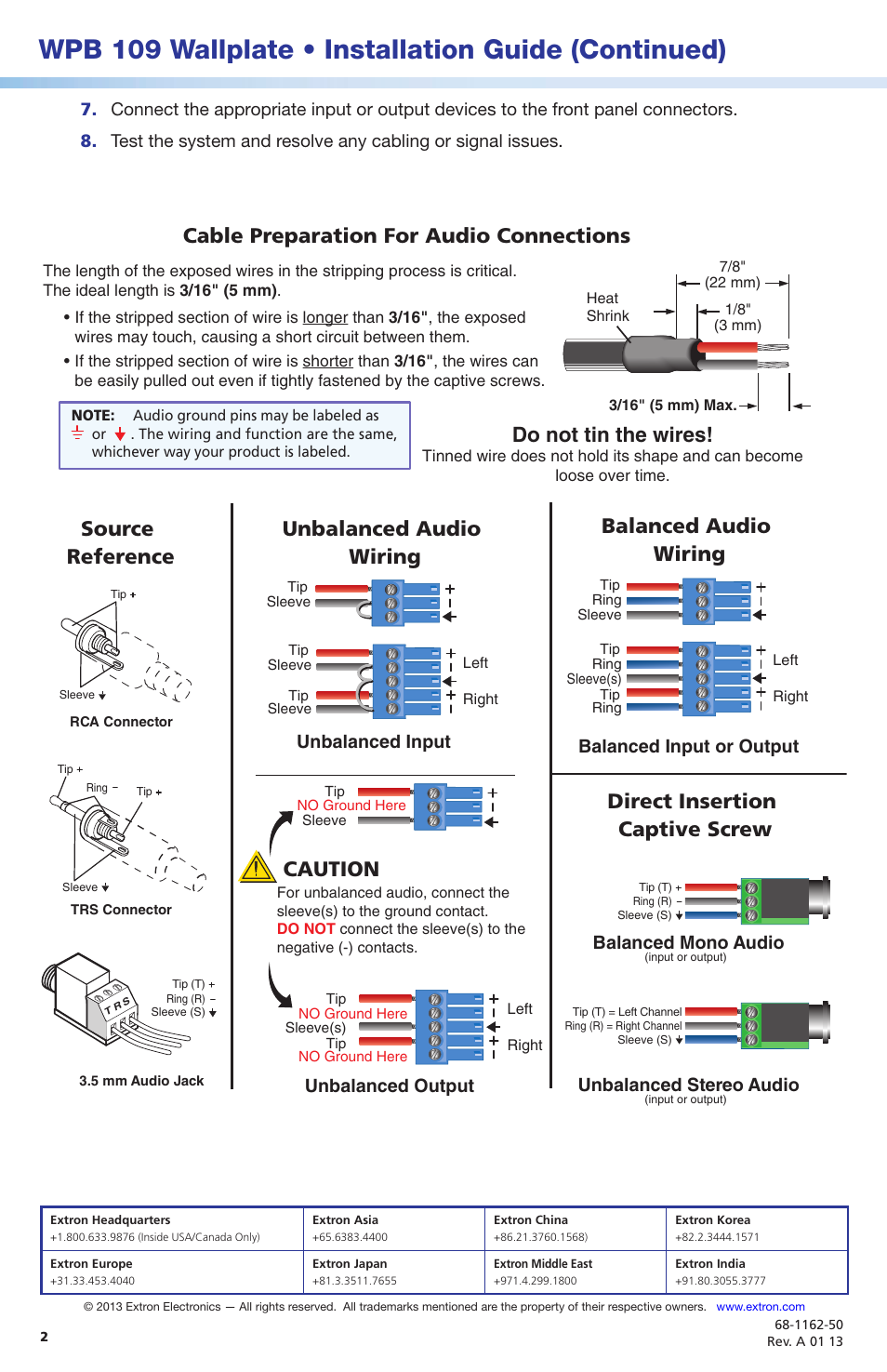

Page 2: Cable preparation for audio connections, Do not tin the wires, Unbalanced input, Unbalanced output
