TLP 710CV and TLE 710 • Setup Guide (Continued)

Calibration Screen

1.

To access the calibration screen, press the Menu button a second time (

g

in the figures on page 6). The calibration screen

opens with the on-screen button in the top left corner highlighted.

+

+

+

+

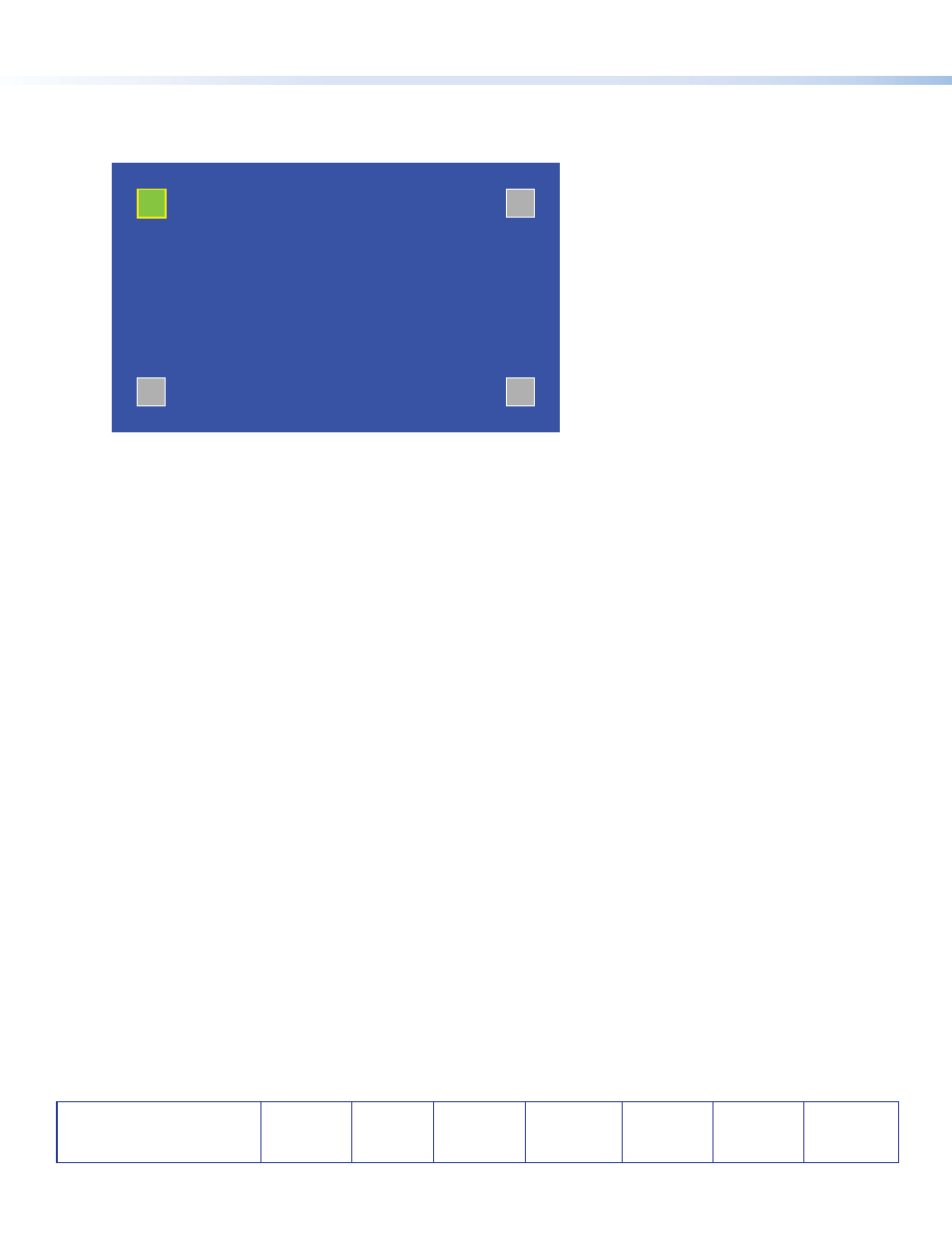

Press and Hold

Highlighted Box

Until Color Changes

2.

Press the highlighted button until it turns gray and a new button is highlighted. When all four points have been calibrated, the
screen reopens to the Main Screen.

3.

Press

Exit

to close the on-screen menus.

4.

Reattach the bezel.

Reset Modes

The touchpanel has four reset modes: Factory Firmware Mode, Run or Stop Events Mode, Reset All IP Settings Mode, and Reset
Factory Defaults Mode. These modes can be initiated by pressing the reset button (

f

in the figures on page 6). Do not use the

reset button until you have read all the information about the different modes (see the TLP 710CV User Guide).

GUI Design and Configuration

Use Extron GUI Configurator (version 1.3 or later) to design the graphical user interface that will appear on the TouchLink panel.
Use Extron Global Configurator (version 3.3 or later) to assign functions to the elements of the graphical user interface. For
complete information about these software programs, see the help file of the appropriate program.
