TLP 710MV and TLP 710TV • Setup Guide (Continued)
Wall-Mounting or Furniture-Mounting the TLP 710MV
To mount the TLP 710MV directly into a wall, follow
these steps. The steps will be similar if the unit is
mounted in furniture (such as a podium or table).
1.
Use the template provided to mark the wall
at a suitable location and cut a hole 7.5 inches
(19.05 cm) wide x 5.81 inches (14.76 cm) high.
2.
Unpack the TLP 710MV and remove the faceplate.
3.
Ensure all the locking arms are flush with the unit
and that the TLP 710MV can fit into the hole. If
necessary, use a rasp or a coarse file to enlarge the
hole.
4.
Run the network and MTP cables inside the wall
to the hole, leaving enough slack in the cables to
connect them to the back of the TLP 710MV.
5.
page 2).
z
Connect the LAN port to the PoE power supply and network.
z
Connect the RJ-45 MTP input.
z
Optional: Extron recommends using the Power over Ethernet power supply provided. However, you may use the
LAN port only as a network connection and connect a 12 VDC, 1.0 A power supply (not provided) to the 2-pole
captive screw power input connector.
6.
Push excess cables into the wall cavity.
7.
Ensure the four locking arms (two at the top and two at the bottom) are flush with the top and bottom of the
TLP 710MV and fit the touchpanel into the hole.
8.
Use a Phillips head screwdriver to tighten the screws for the locking arms. As the screws tighten, the locking arms rotate
behind the wall and hold the unit in place. Do not overtighten the screws as this can damage the catches or the wall.
9.
If required, perform the
10.
Replace the faceplate by pressing the catches on the faceplate into the corresponding holes on the front of the panel.
Reset Modes
The touchpanels have four reset modes: Factory Firmware mode, Run or Stop Events mode, Reset All IP Settings mode, and
Reset to Factory Defaults mode. These modes can be initiated by pressing the reset button (see “
“ for the TLP 710TV). For full information about these different modes,
see the TLP 710MV and TLP 710TV User Guide.
Screen Design and Configuration
Use Extron GUI Configurator (version 1.3 or later) to design the graphical user interface that will appear on the TouchLink
panel. Use Extron Global Configurator (version 3.3 or later) to assign functions to the elements of the graphical user
interface. For complete information about these software programs, see the help file of the appropriate program.

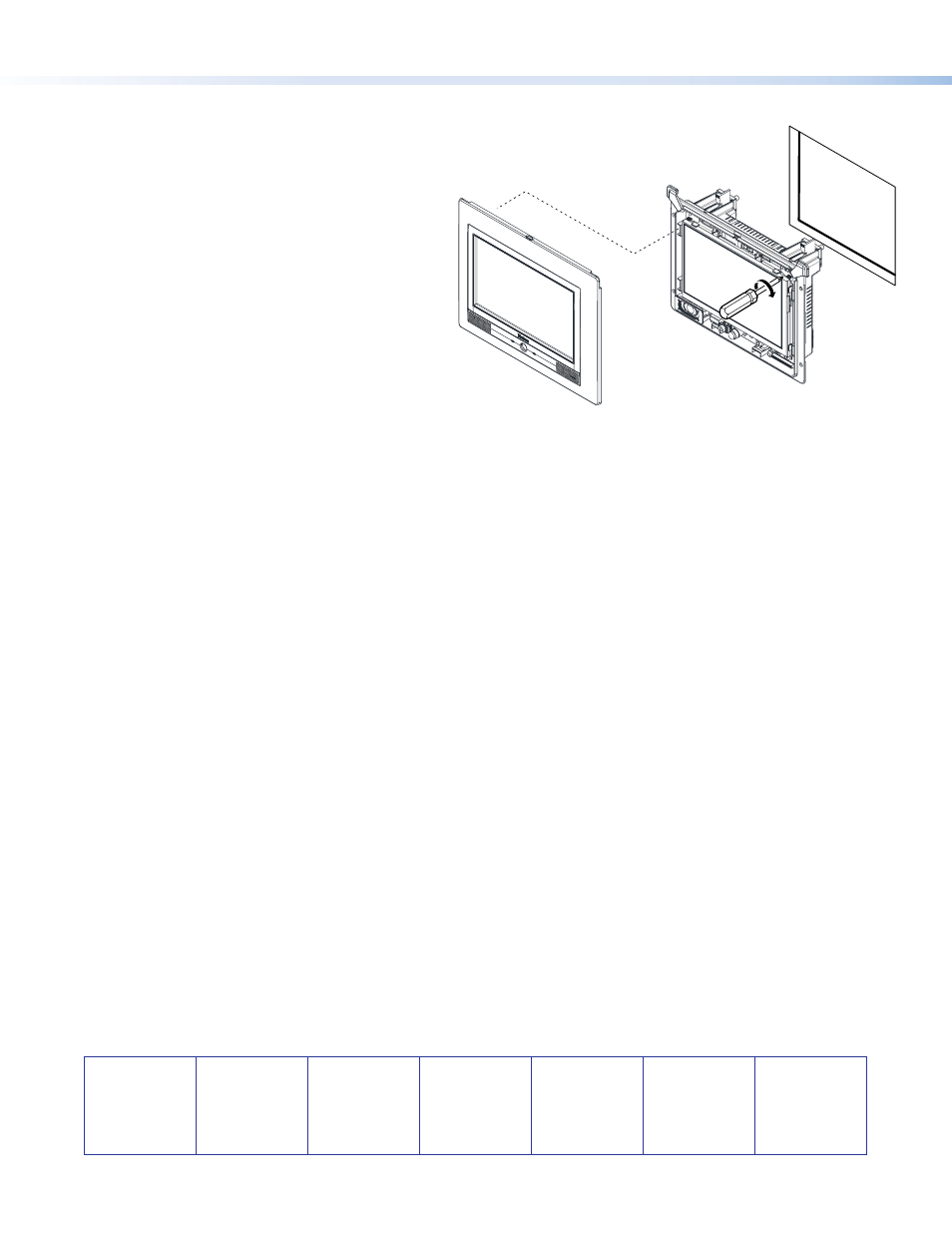

Faceplate snaps to unit
(2 tabs on each side).
Tighten screws to
rotate locking arms.
