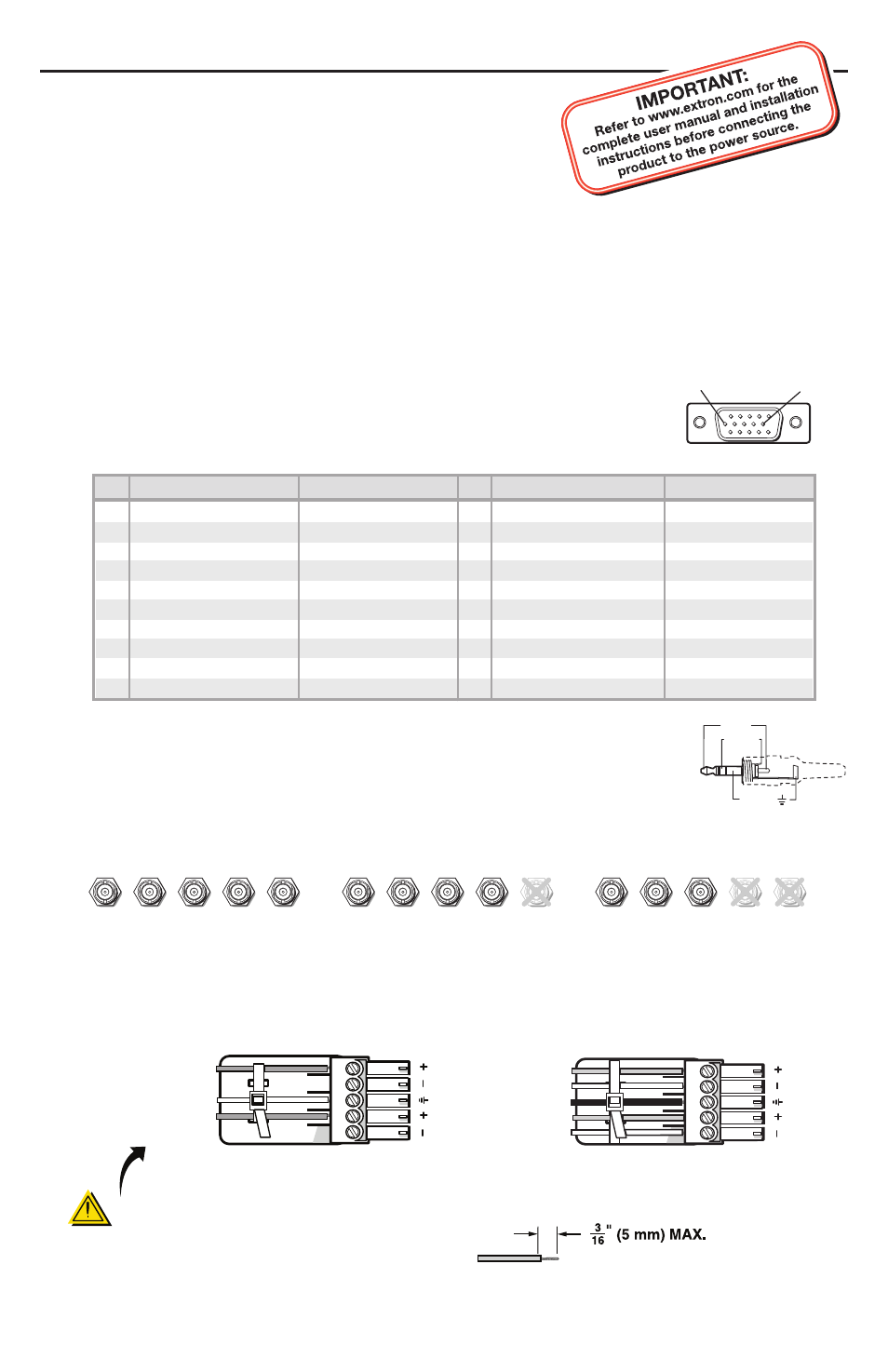

Setup Guide — RGB 580xi

This guide provides basic instructions for an experienced

installer to set up and operate the Extron RGB 580xi.

Installation

Refer to the RGB 580xi User’s Manual for details.

C

Installation and service must be performed by authorized personnel only.

Step 1 — Powering down

Turn off or disconnect all equipment from power sources.

Step 2 — Mounting

Mount the interface as desired.

Step 3 — Video input

Connect an RGBHV, RGBS, RGsB, or RsGsBs analog video input to the

front panel 15-pin HD input connector. The pinout table is shown below.

Pin

Description

Wire ID

Pin

Description

Wire ID

15-pin HD male pinout table

1 red signal red coax
2 green signal green coax
3 blue signal blue coax
4 horizontal shift + green wire
5 horizontal shift

brown wire

6 red coax ground red coax shield
7 green coax ground green coax shield
8 blue coax ground blue coax shield
9 LED red orange wire

10 horizontal sync ground black coax shield
10 vertical sync ground yellow coax shield
10 audio ground black wire
10 LED ground yellow wire
10 shift ground grey wire
11 audio right red wire
12 audio left white wire
13 horizontal sync black coax
14 vertical sync yellow coax
15 LED green pink wire

Step 4 — Audio input

Connect an unbalanced stereo input to the front panel 3.5 mm stereo mini

jack.

Step 5 — Video output

Connect a display device to the rear panel video output BNC connectors, as shown below.

RGBS

RGBHV

RGsB (Sync on Green)

RsGsBs

(output only if input is RsGsBs)

R

G

B

H/HV

V

R

G

B

H/HV

V

R

G

B

H/HV

V

Step 6 — Audio output

Connect an audio device to the 3.5 mm, 5-pole captive screw connector for balanced or

unbalanced audio output. Wire the male connector as shown here.

CAUTION

For unbalanced audio, connect the
sleeve(s) to the ground contact.

DO NOT

connect the sleeve(s) to the

negative (-) contacts.

Do not tin the wires!

Tip

NO Ground Here

Sleeve(s)

NO Ground Here

Tip

L

R

Balanced Audio Output

Unbalanced Audio Output

Tip

Ring

Tip

Ring

L

R

Sleeve(s)

1

15-pin HD Male Pin Locations

5

1

15

11

6

10

Sleeve ( )

Ring (R)

Tip (L)
