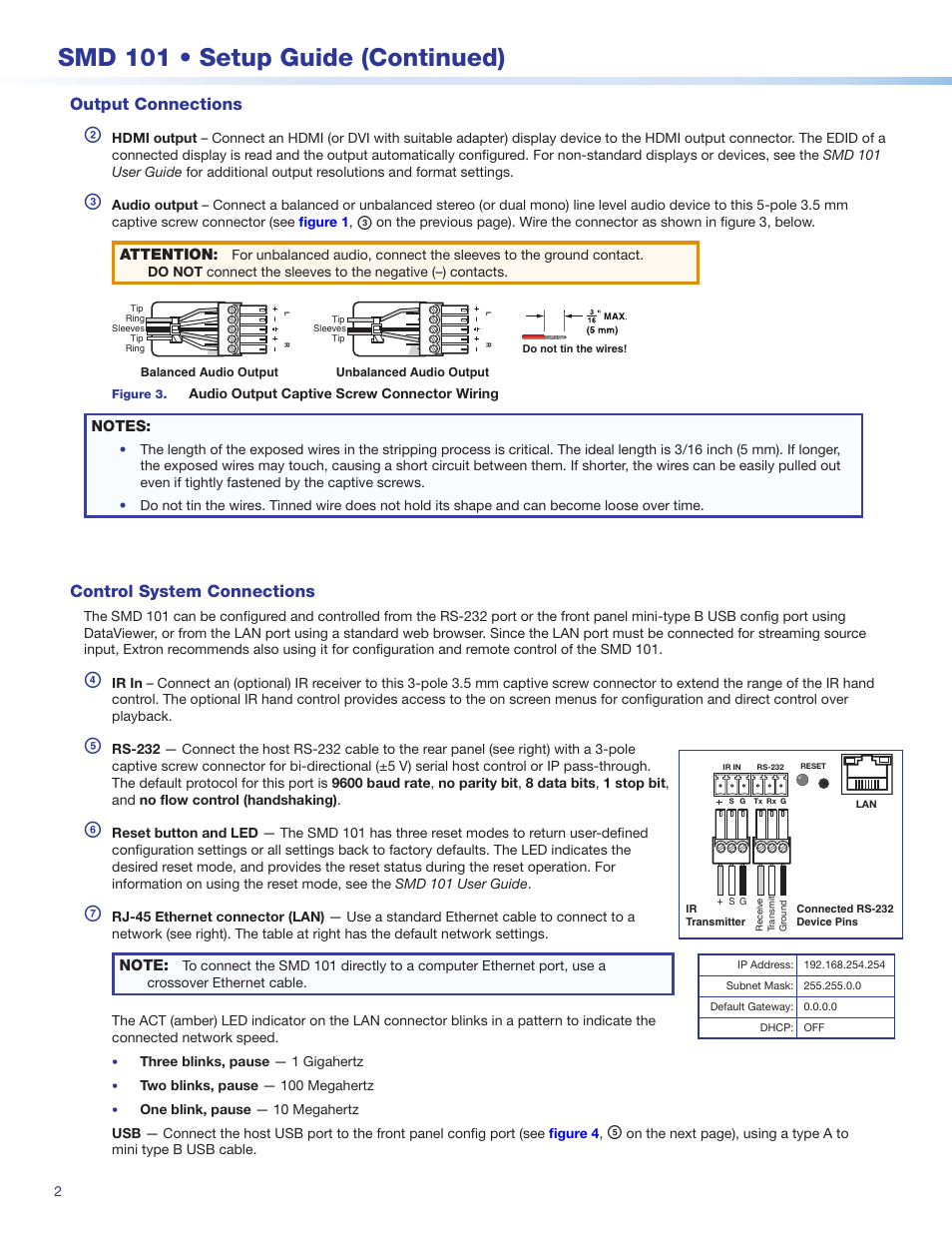

Smd 101 • setup guide (continued), Output connections, Control system connections – Extron Electronics SMD 101 Setup Guide User Manual
Page 2
