Preliminar y preliminar y, Installation, A/v output connections – Extron Electronics PVS 204SA Plus Installation Addendum User Manual

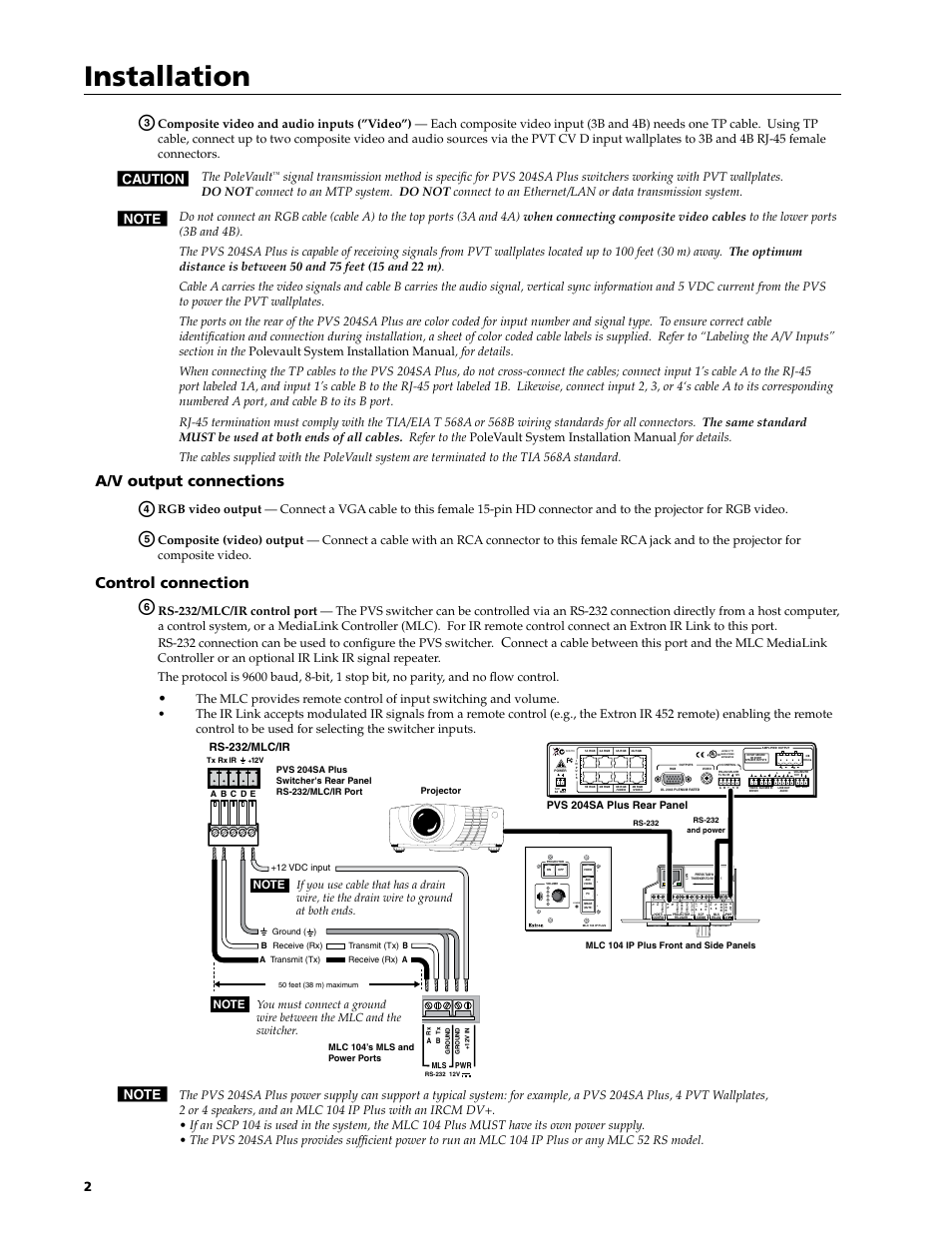

Page 2: Control connection, Config, The polevault, Rs-232/mlc/ir
