MLM-WB+ Lock and Key Guide
You can also purchase a master key, which can be used on any MLM-WB+, through
McMaster-Carr. (You may want this key if you own multiple units and would like
to use one key with all of them.) Provide the McMaster-Carr sales representative
with the part #1682A15 and the key #Y18A.
Lock Dimensions

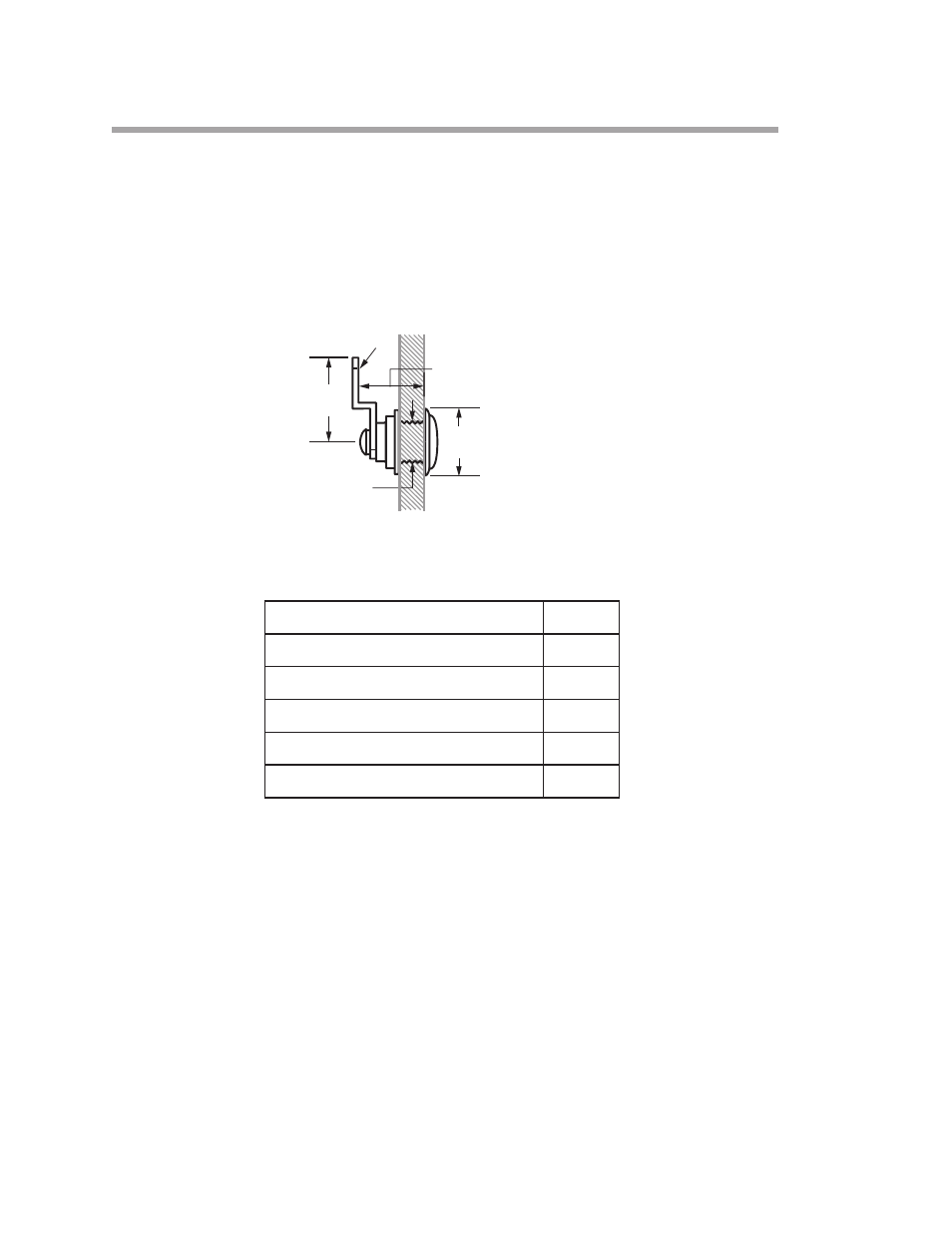

If you need to replace the lock, see the illustration and table below for the required
cam lock dimensions.
Cam
Length
Head
Dia.
Mounting Hole Dia.
Offset
Cam
Maximum
Latching
Distance
Circular keyway cam lock diagram
N
The maximum latching distance is the distance between the outside mounting
surface and the inside face of the cam.
Cam length
1 1/8"
Head diameter
7/8"
Mounting hole diameter
3/4"
Cam offset
1/4"
Maximum door/drawer thickness
15/64"
Maximum latching distance
31/32"
Lock and Key Guide, cont’d
