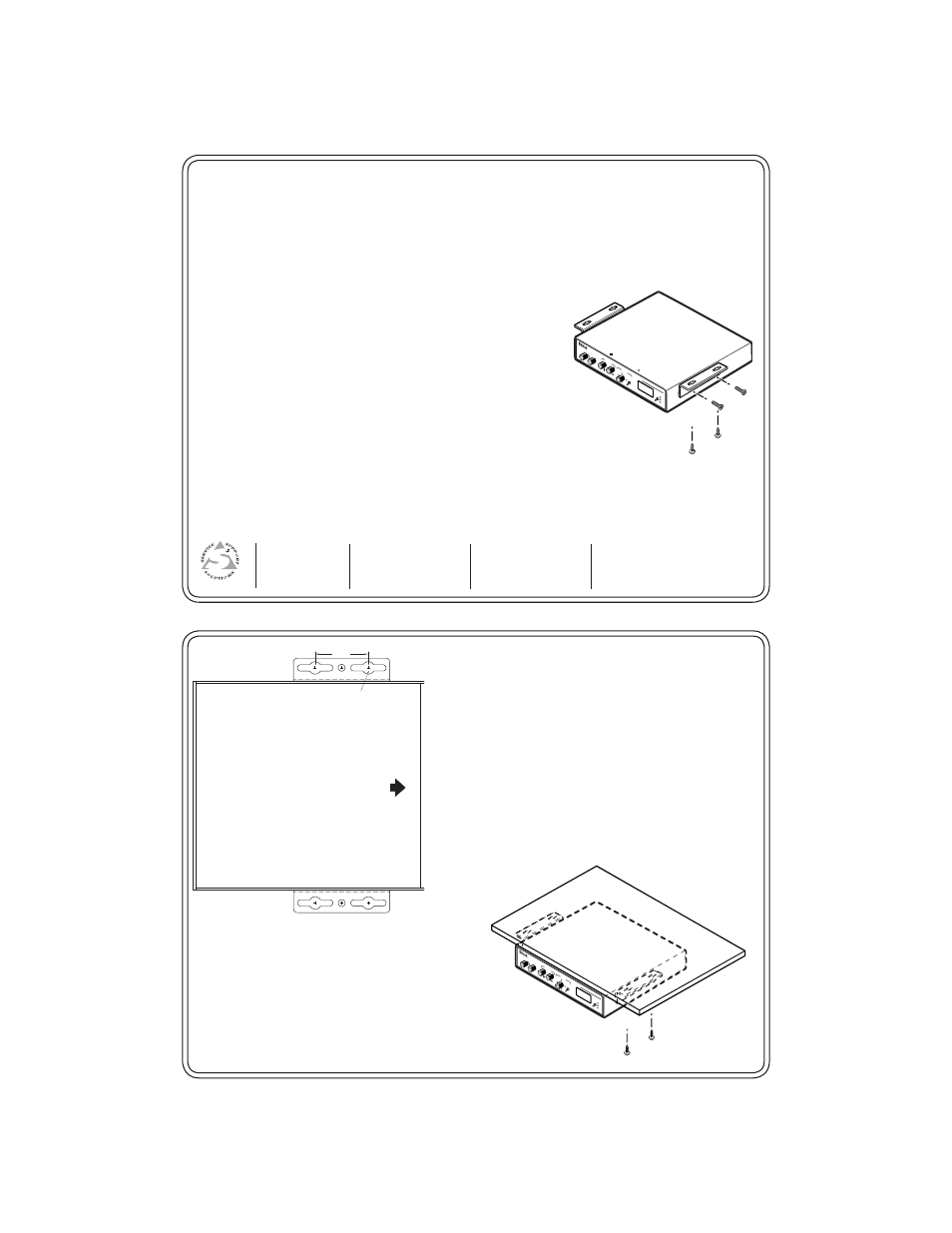

MBU 125 Under-Desk Mounting Kit (Part #70-077-01)
Installation Instructions
The specific device being mounted may ship with a to-scale template located in the
device manual. Use the template as a guide for drilling holes, if available.
1
. If necessary, remove the feet from the bottom of the device to be installed.
2
. Attach the mounting brackets to the device using
four machine screws supplied with the mounting kit.
3a
. If the device to be mounted included a to-scale,
under-desk mounting template
, use the template to
mark the four screw holes on the underside of the
surface to which you are mounting the device. The
other side of this card shows a not-to-scale template
example.
3b
. If the device to be mounted did not include a to-scale
mounting template
, hold the product and brackets on the underside
of the surface to which you are mounting the device and mark the four screw holes.
RGB
203
xi V
TG
BOO
ST
LEVE
L
CON
TRO
L
PEAK
INPU
T
1
2
3
WIT
H AD
SP
TM
MIN
I VTG
CEN
TERIN
G
SXG
A
SVG
A
VGA
203
VTG
XGA
4
. Drill four pilot holes, each 3/32" in
diameter by 1/4" deep, as marked on
the template.
5
. Using the four wood screws provided,
attach the brackets under the mounting
surface.
Under-Desk Mounting Bracket Template
Drill 3/32” x 1/4” deep
pilot holes for supplied
screws (4 places)
FR
ONT
Example only –
drawing is not to scale.
1.45"
RGB
203
xi V
TG
BOO
ST
LEVE
L
CON
TRO
L
PEAK
INPU
T
1
2
3
WITH
ADS
P T
M
MINI V
TG
CEN
TERIN
G
SXG
A
SVG
A
VGA
203
VTG
XGA
