Extron Electronics MBB 100 User Manual

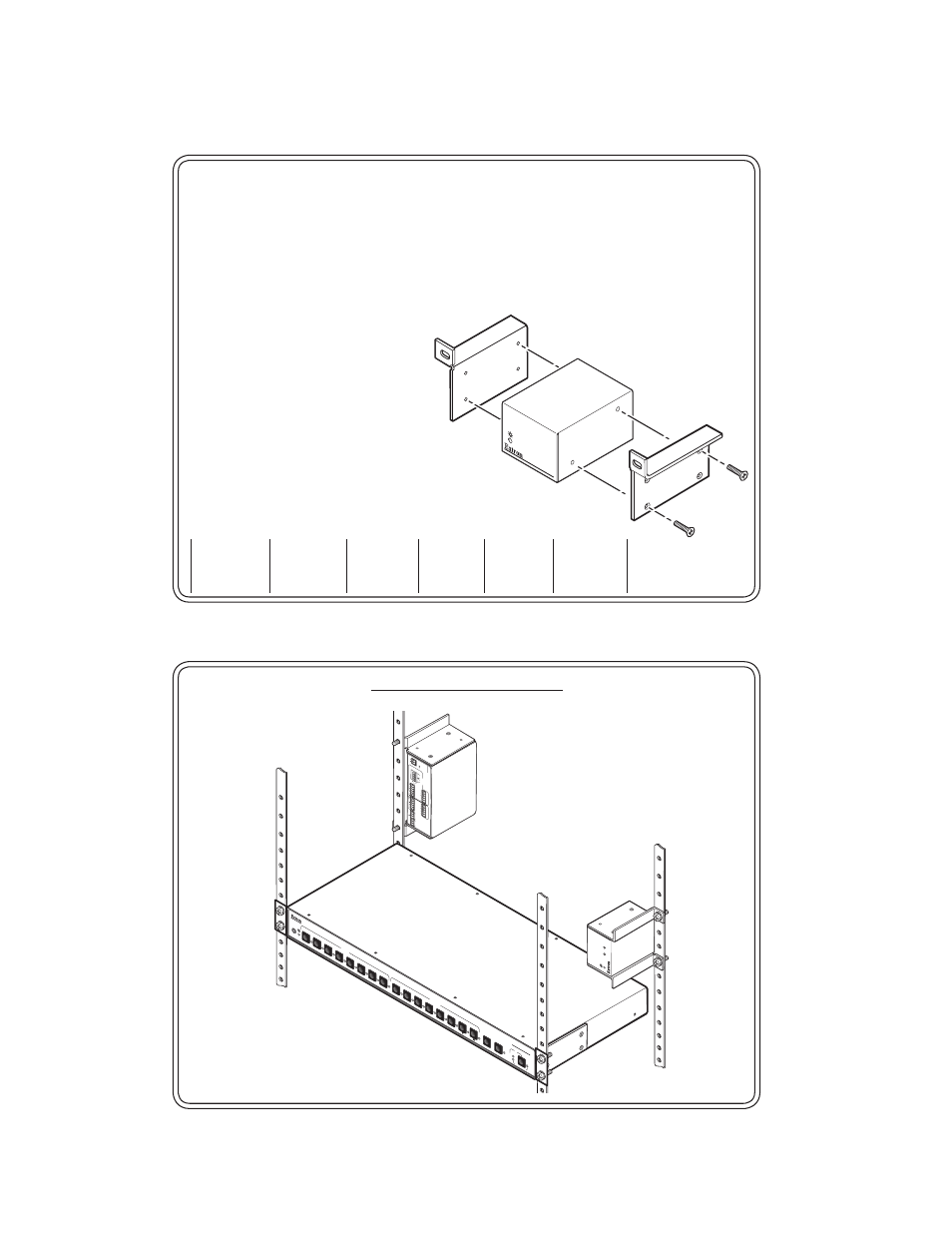

Mbb 100 back of the rack mounting kit, Installation example
MBB 100 Back of the Rack Mounting Kit
N
Only Extron products that are 3 inches deep and most IP Link products can be
mounted using this kit (part number 70-367-01).
This kit allows A/V products to be vertically mounted to the front or rear rack
supports and face either the front or the rear of the rack. Refer to the drawing on the
opposite side of this card.
1.
Remove any installed rubber feet from
the unit.
2.
Remove two screws from
one side of the unit. Retain
the screws for possible later
reassembly.
3.
Attach one bracket to the side of
the unit using the longer screws
included in the kit.
4.
Repeat steps 2 and 3 on the other side of
the unit.
5.
Mount the unit to the rack using the two included
rack screws.
Rev. B
01 10
MVC 121
ON
INPUTS
OU
TPU
TS
LEVEL
48V
ON
OFF
MAIN
3
LINE
MIC
RS-232
MUTE
Tx
Rx
PO
WER
12V
0.2A MAX
L
1
2
R
3
1
2
3
4
1
2
1
2
MIXER/V
OLUME
CONTR
OLLER
FIXED
L
R
MIC
1
MIC
2
VARIABLE
L
R
MA
V SERIES
AV MA
TRIX S
WITCHER
I/O
AUD
AUDIO S
ETUP
PRESE
T
VID
IR
+dB
-dB
ENTE
R
2
7
6
5
2
4
1
INPUTS
OUTPUTS
8
3
1
8
6
5
4
3
7
L
R
Installation Example
