MBD 123 1U Full Rack Width Mounting Kit
N
Only 1U full rack width products can be mounted using this kit
(part number 70-485-01).
This kit allows the product to be mounted to the vertical rack supports and
face either the front or the rear of the rack. Refer to the drawing on the
opposite side of this card.
Rack Mounting Instructions
1.
Remove any installed rubber feet from the unit.
2.
Remove two screws from one side of the unit. Retain the screws for
possible later reassembly.
3.
Attach one bracket to the side of the unit using the longer screws
included in the kit.
4.
Repeat steps 2 and 3 on the other side of the unit.
5.
Mount the unit to the rack using the four included rack mounting screws.
Mounting Kit Contents
•
2
mounting brackets (left and right)
•
4
side bracket mounting screws
•
4
rack mounting screws

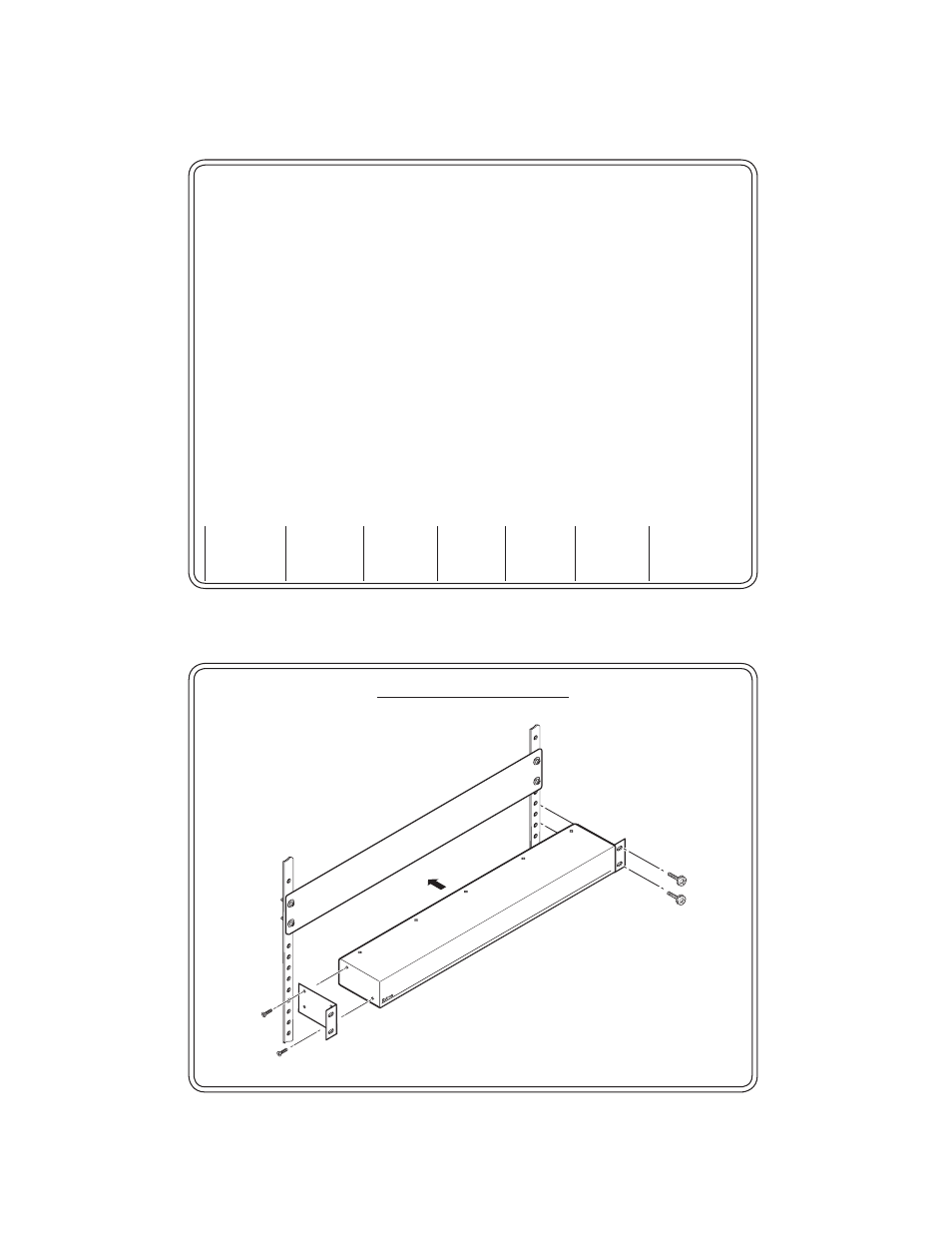

Installation Example
