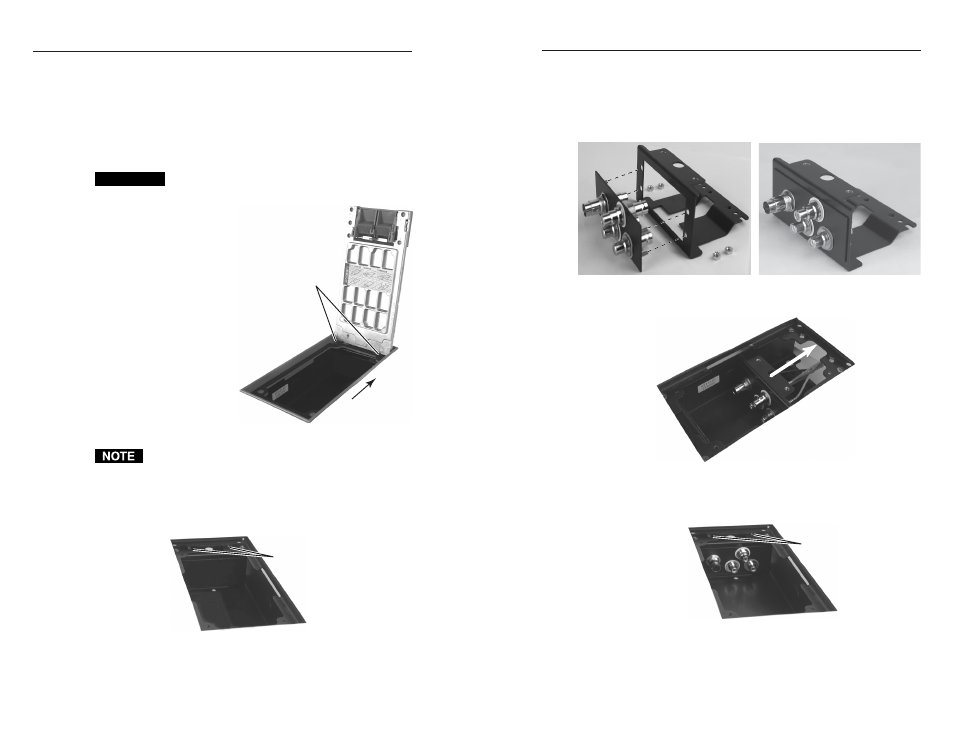

MD Floor Box AAP Kit • Installation MD Floor Box AAP Kit • Installation
Installation
3 2
7. Remove the old adapter plate bracket and adapter plate unit
from the floor box.
8. Attach and secure any single or double Extron AAP (for
example, the double AAP shown below) to the MD AAP
bracket with the 4-40 mounting nuts provided.
9. Connect cables, if applicable, to the back of the AAP to be
installed.
10. Place the MD AAP bracket into the floor box (as shown
above), routing any cables through the back of the box.
11. Align the two screw holes in the top of the new AAP bracket
with the holes in the box. Attach the bracket with the two
M4 screws provided.
3. Remove screws
4. Slide
Remove screws
Attach with
M4 screws
Slide bracket
Introduction
This guide covers installation of the Extron MD Floor Box AAP
Bracket Kit in a Matsushita Denko (MD) floor box. It shows
removal of the old bracket and installation of the new bracket/AAP
unit.
Installation
CAUTION Installation and service must be performed by
authorized personnel only.
1 . Turn off and disconnect power from all
equipment connected to the floor box.
2. Remove all cables connected to
the portion of the floor box
that is accessible when
the lid is open (if
applicable).
3. Open the lid and
remove the two screws
securing the lid to the
floor box.
4. Remove the lid from
the floor box by sliding
the lid toward the
hinge to disengage it
from the box, then put the
lid aside.
If an existing adapter plate or blank plate is installed,
complete steps 5 through 7, otherwise skip to step 8.
5. Remove the two screws securing the old adapter plate
bracket to the box.
6. Slide the adapter plate bracket to the center of the box and
disconnect the cables attached to the back side of the
adapter plate.
