1 IPA T RLY4 • Introduction
Introduction
Description
The Extron IPA T RLY4 Relay Accessory is an IPLink ® Accessory
product. The Relay Accessory consists of four output relays with
normally open (when the relay is de-energized) (NO) and normally
closed (NC) contacts.
The Relay Accessory converts a solid state (up to 12 VDC) signal, from
a source such as the Flex I/O port of an Extron IPL T SF24 or the digital
I/O port of an MLC 104 IP Plus, to a relay contact closure. The relay
contacts can handle up to 24 VAC or 24 VDC as a tally signal, contact
closure signal, or control signal to drive devices in your system, such
as a lighting system (figure 1) or remote screens. The relay contacts are
protected by an overvoltage circuit.
IPA
T RL
Y4
1
2 3
4
C
INPUTS
COM
3
LAN
UID# 093012052
PO
WER
12V
.5A MAX
COM
2
1
COM1
TX RX
TX RX
I/O
2 3 4
COM2
Extron
IPL T SF24
Ethernet Control
Interface
Extron
IPA T RLY4
Relay Accessory
NO C NC
NO C NC
NO C NC
NO C NC
RELA
Y 1
RELA
Y 2
RELA
Y 3
RELA
Y 4
Lighting System
Front
Rear
Extron
12 V Power
Supply
+12 VDC
(Common)

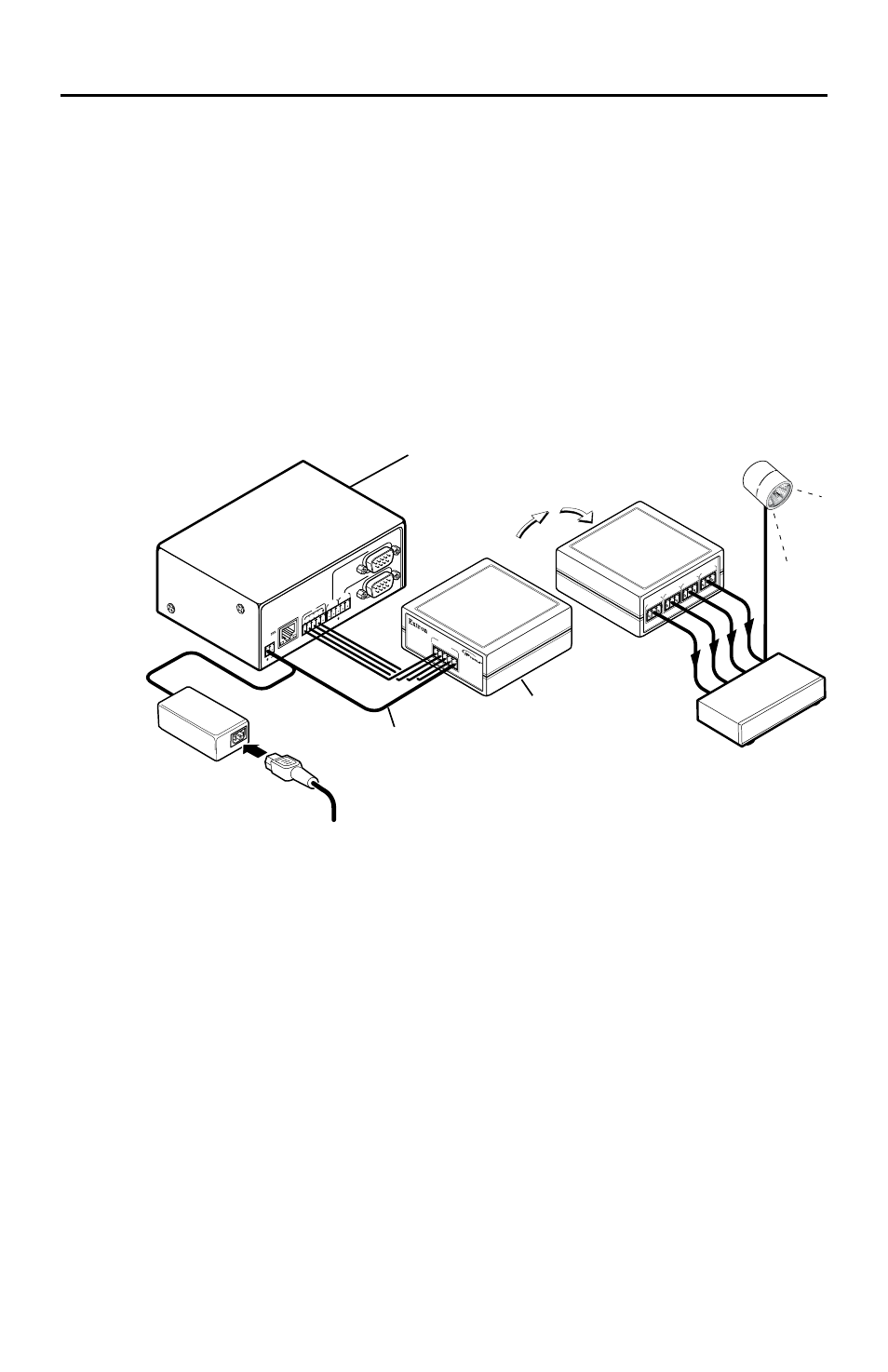

Figure 1 — Typical IPA T RLY 4 application
The compact IPA T RLY4 can be concealed out of the way anywhere in
your system with the included Velcro ® strip.
