4

e

Output signal LED. This LED lights when the HDMI output is connected to a display or sink device.

f

HDCP input signal LEDs (inputs 3, 4, 5, and 6). These LEDs light for the associated HDMI input when the connected source is

HDCP encrypted.

g

HDCP output LED. This LED lights when the currently selected input source requires HDCP and the connected output device

(sink) is authenticated.

The MPS 601 can be connected to as many as six input devices. Any of the six inputs (2 RGBHV, 4 HDMI) can be routed to the
HDMI output.

NOTE: The MPS 601 does not scale or convert video. However, it does convert an analog RGB/VGA input (see figure 1,

b

)

to digital for digital output. The output signal resolution is the same as the input resolution.

INPUT

LAN

POWER
12V
500mA
MAX

1 2 3 4

COM 3

IR

3

S G S G

Tx Rx

4

RELAY

3

4

COM1

Tx Rx

RTS CTS

COM 2

IR

1

S G S G

Tx Rx

2

RELAY

1

2

0.5A MAX

POWER

12V

1

2

B

A

3

4

5

6

INPUTS

MPS 601

CONTACT IN / TALLY OUT

HDMI

RGBHV

HDMI

HDMI

RS-232

G

C

1

3

5

2

4

6

T

T

C G

T

C G

G

C

T

T

C G

T

+V

C G

Tx Rx G

OUTPUT

REMOTE

STANDBY/ON

PQLS

HDMI

OPEN/CLOSE

FL OFF

USB

Extron

TCP/IP

Network

Ethernet

Ethernet

RS-232

HDMI

HDMI

HDMI

HDMI

HDMI

Audio

RGBHV

Audio

RGBHV

Laptop with VGA Output

PC with VGA Output

Blu-ray Player

Flat Panel Display with Speakers

Laptop with

HDMI Output

Laptop with

HDMI Output

Laptop with

HDMI Output

Extron

TLP 710TV

7" Tabletop

TouchLink

Touchpanel

Extron

IPL 250

IP Link Control

Processor

Extron

MPS 601

Media Presentation

Switcher

Executive mode

Executive mode, when enabled, provides security from an accidental or unauthorized
front panel button press by locking out the input switching buttons.
The RS-232 and USB ports are always accessible regardless of the executive mode
state.
To enable or disable executive mode:

Press and hold input 1 and input 2 for 3 seconds to toggle executive mode on or
off.

The front panel LEDs flash twice to indicate that executive mode is enabled or
disabled.

All LEDs flash twice if a button is pressed while executive mode is enabled.

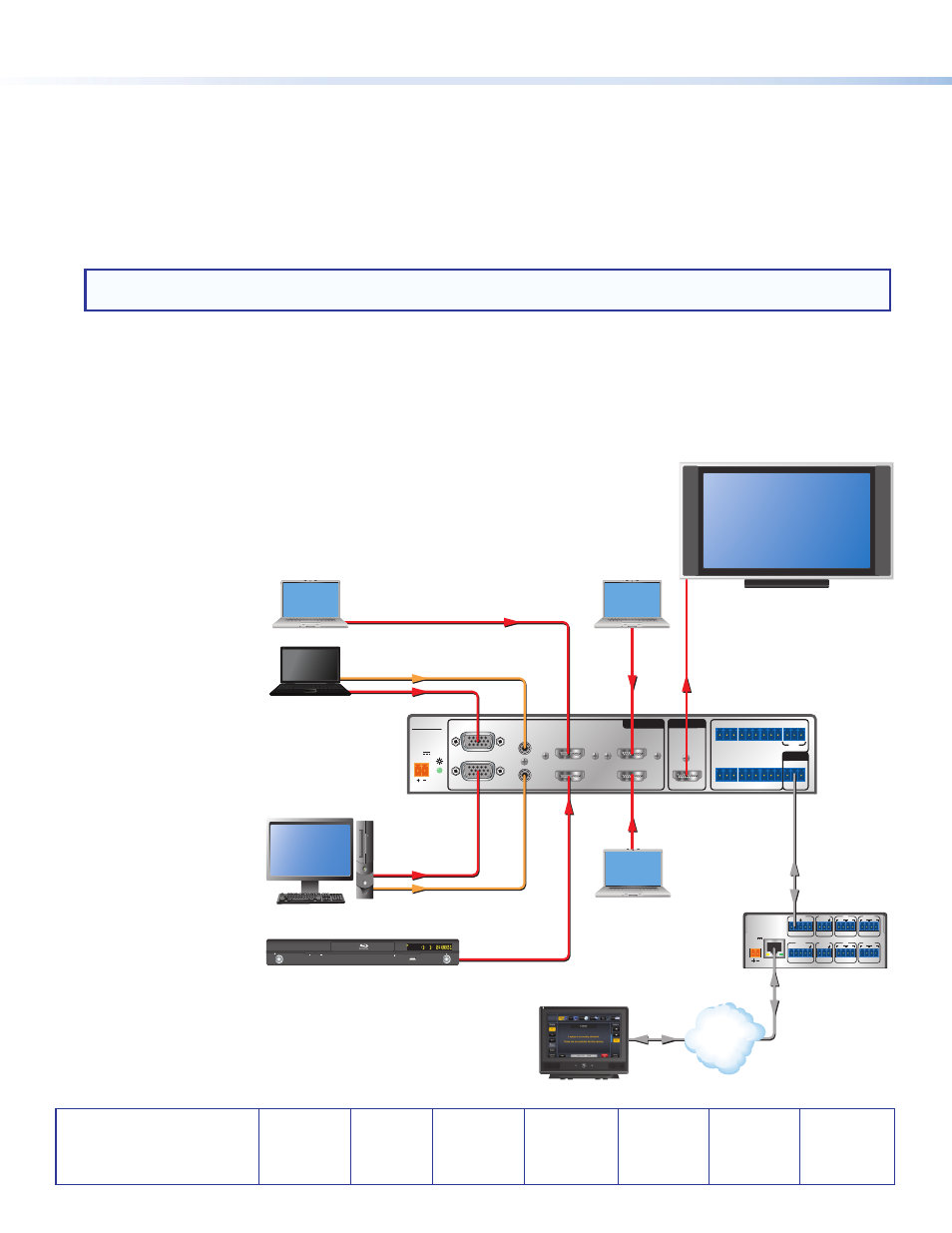

Figure 7.

MPS 601 Application Diagram
