Load and Play a Presentation
Load and play a presentation as follows:
NOTE
The player must be correctly configured for the clip or playlist that you select using the Settings > Video submenu, or
else the player does not load the selected clip or playlist and the LCD reports ERROR.

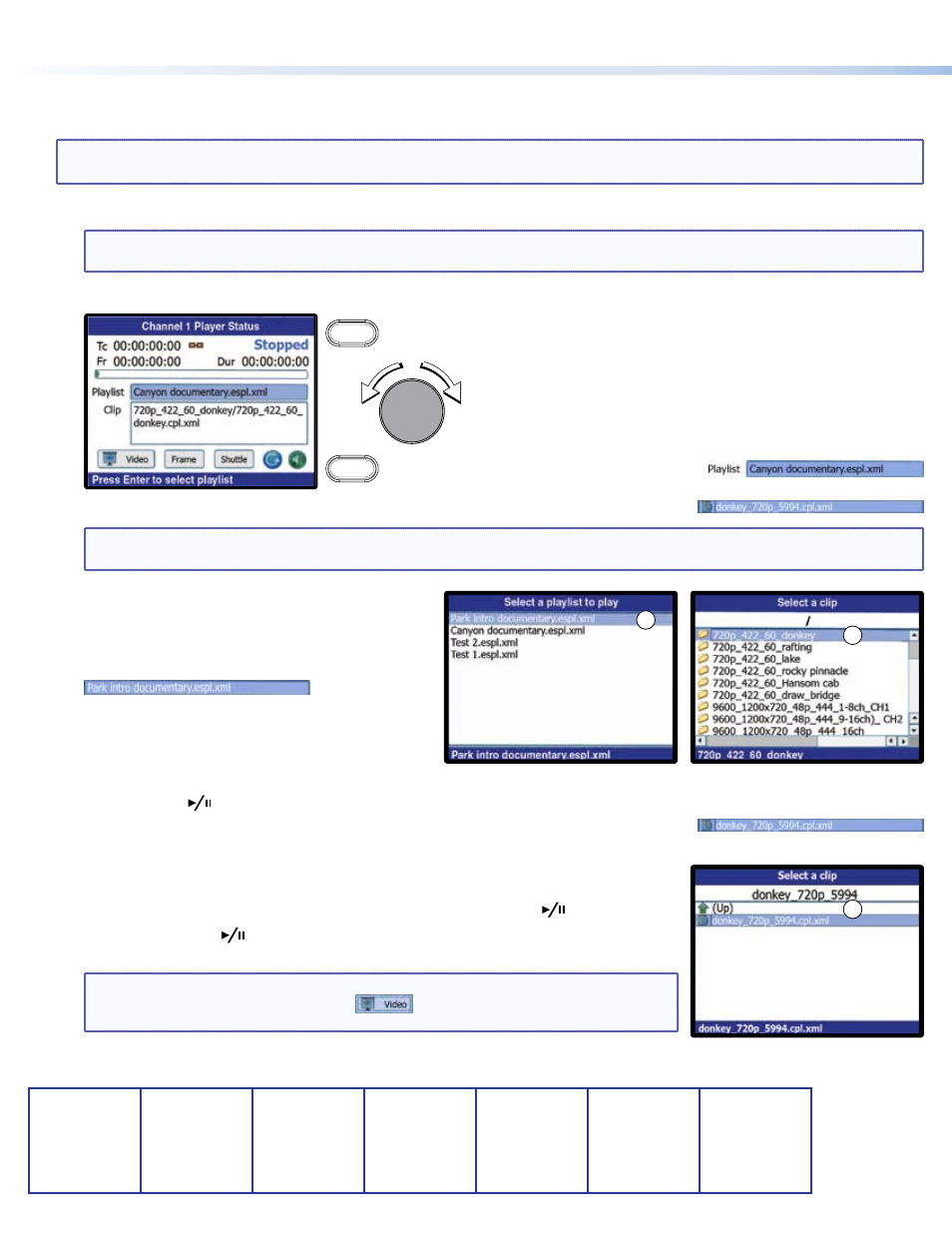

1.
Rotate the encoder to highlight the Ch. 1 Status selection or Ch. 2. Status selection.
NOTE
: The Ch.2 Status selection is only available when the media player is in 2-channel output mode and 2-channel locked
output mode, both of which can be selected in the Settings > Video submenu.
2.
Press the Enter button. The selected Channel Status menu opens.
PREV
ENTER
3.
Rotate the encoder knob as necessary to highlight the Playlist field or Clip field.
NOTE
: You must have created one or more playlists using the player web interface before they can be selected from the list
of playlists. All clips in a playlist must have the same format. See the JMP 9600 Media Player User Guide.
4.
Press the Enter button. The Select a playlist screen (a
list of playlist files) or Select a clip (folder) screen (a
list of clip folders) appears.
5.
Rotate the encoder knob as necessary to highlight
the desired playlist file or clip folder.
6.
Press the Enter button.
When loading a playlist — If the playlist is valid, and
all clips have the same format, the LCD returns to the
Channel Status screen with the playlist selected in
step 5 shown in the Playlist field.
The Play/Pause (
) Button lights. Proceed to step 9.
When loading a clip — The LCD displays the Select a clip (file) screen, showing a
folder full of clip files or subfolders. Proceed to step 7.
7.
Rotate the encoder knob as necessary to highlight the desired clip (*.cpl.xml) file.
8.
Press the Enter button. If the clip is valid, the LCD returns to the Channel Status screen
with the clip selected in step 7 shown in the clip field. The Play/Pause (
) Button lights.
9.
Press the Play/Pause (
) Button to start playing the file. The LCD screen displays a
progress-bar as the clip runs. The video output appears on the connected display system.
NOTE
: To display the video that is playing in the LCD, rotate the encoder knob to
highlight the Video Mode icon (
) and press the Enter button. Press the
Previous button to return to the Channel Status menu.
