HFX 100 • Panels and Cabling
3
Panels and Cables
This section discusses the features and cabling of:
•
•
•
Front Panel
Both the Transmitter and Receiver have identical front panels:
Extron
Extron
a

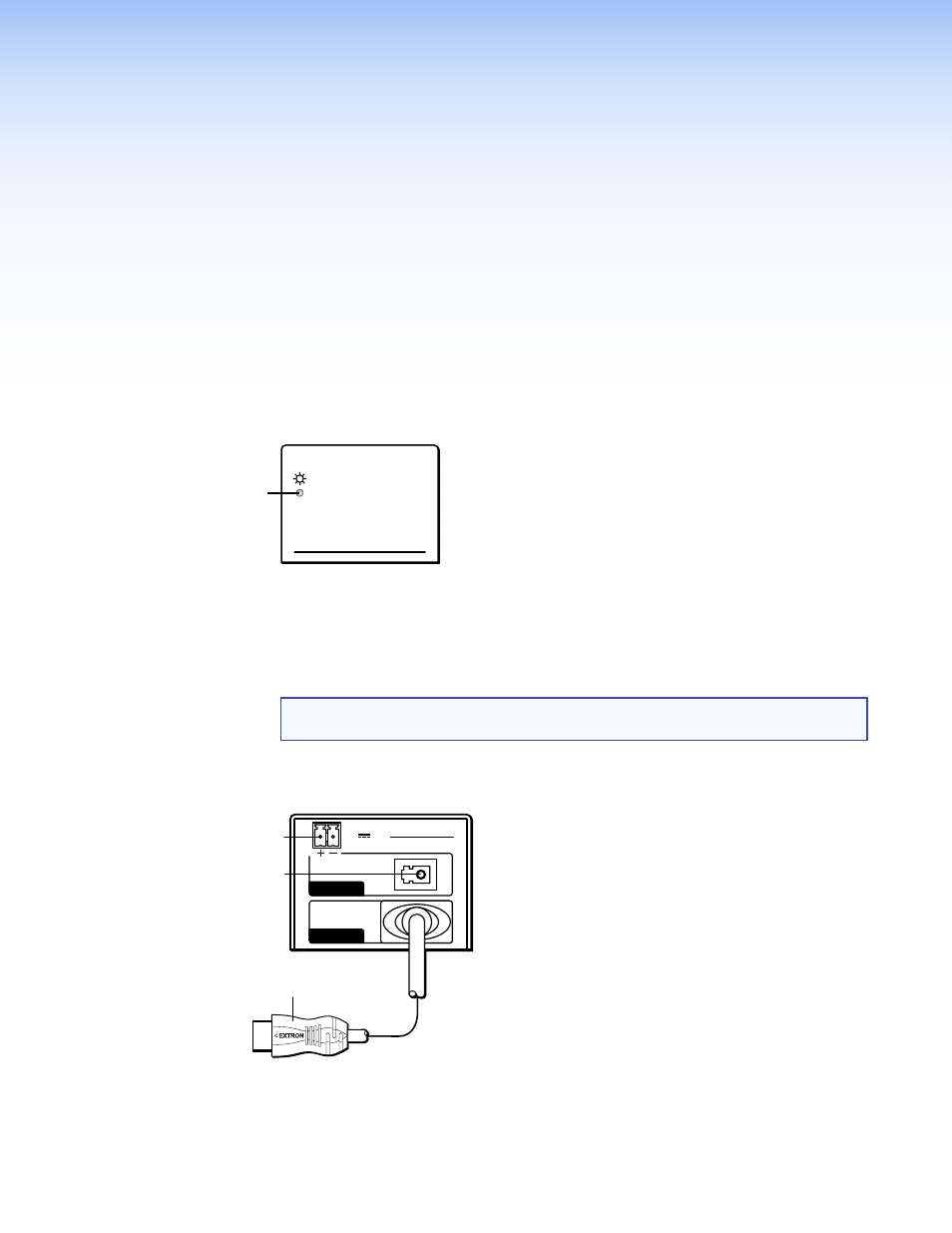

Figure 2.
HFX 100 Tx and HFX 100 Rx Front Panel
a
Front Panel LED — lights amber if the unit (transmitter or receiver) is receiving power
from the 12 VDC power supply. The Transmitter LED lights green if the unit is receiving
a TMDS clock signal. The Receiver LED lights green if the unit is receiving an optical
signal.
NOTE: During initialization, the LED may need a few seconds to stabilize to the
correct state.
HFX 100 Tx Rear Panel
POWER
12V
- - A MAX
OUTPUT
INPUT
HFX 100 Tx
POWER
12V
- - A MAX
OUTPUT
INPUT
HFX 100 Tx
a
c
b
3 feet (0.91 m) DVI cable
Figure 3.
HFX 100 Tx Rear Panel
