EWB 700 User Guide (cont’d)

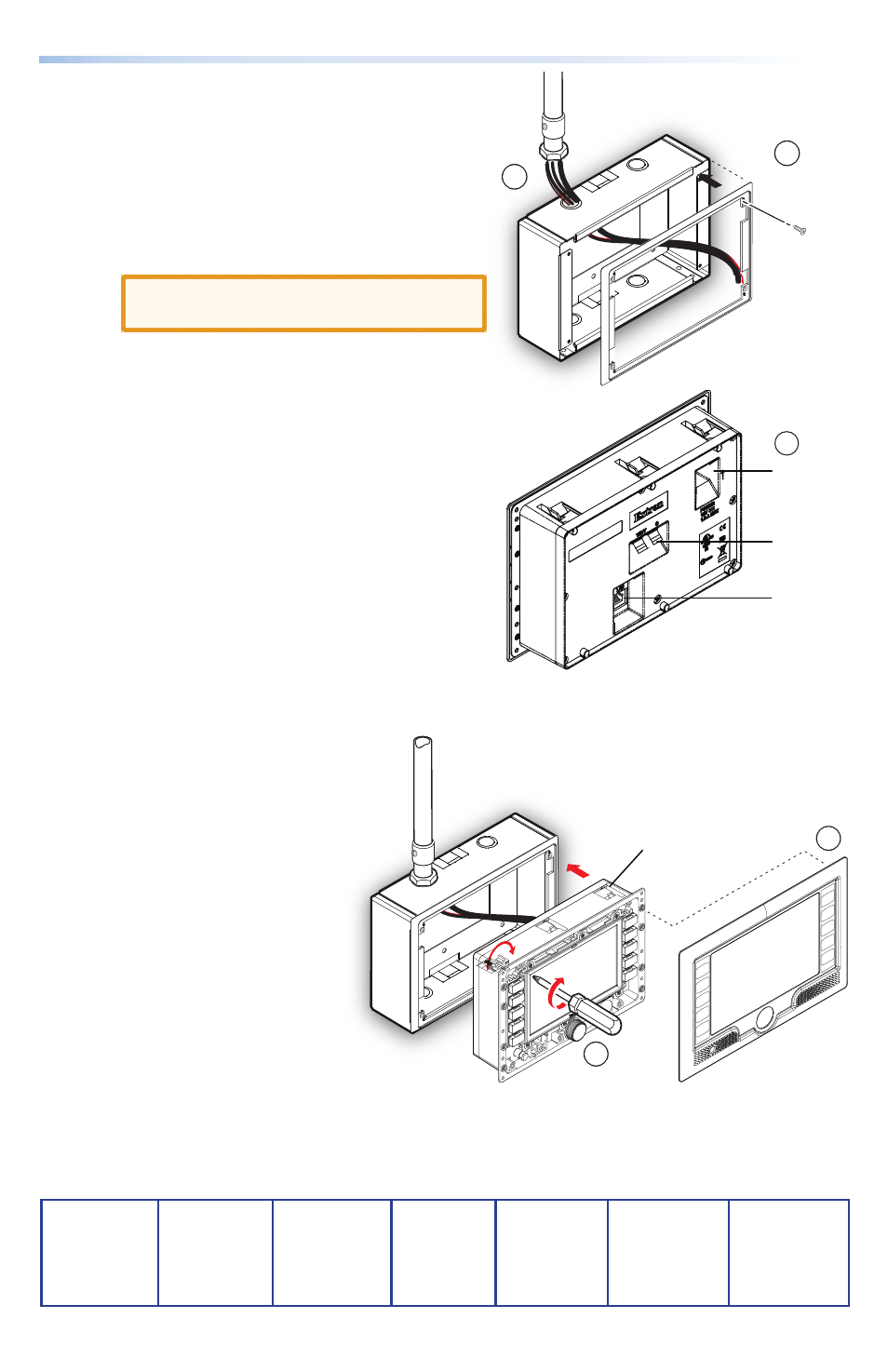

5. Remove the required knockout and run
conduit or raceway to the EWB 700.
6. Pull the cables through the conduit,
the EWB 700 knockout, and the Extron
TR 700M trim ring (provided with the
Extron TLP 700MV).
7. Attach the trim ring to the EWB 700 using
four #6-32 screws (provided).
CAUTION: Do not overtighten the
screws. Use a manual screwdriver.
Installing the TLP 700MV
8. Remove the faceplate from the TouchLink
panel.
9. Attach the cables to the back of the
TLP 700MV. There are three sets of cables:
• One cable for the 12 VDC power input
• Two cables with BNC connectors for
video (optional)
• One network cable with a
RJ-45 connector for network connection
10. Fold the locking arms
into their recesses on the
side of the TLP 700MV
and slide the unit into
the wall box. Tighten
the screws on the front
of the unit to hold the
unit in place. The locking
arms rotate behind the
EWB 700 and trim ring.
11. Configure the TLP 700MV
as described in the
TLP 700MV and TLP 700TV
User Guide.
12. Snap the faceplate into
position (four clips on
each side).
Power Input
Video Input
Network
Connection
9
Trim Ring
6
Screws (4)
7
12
10
Locking
Arm (6)
