FCMP 1010 • Installation Guide, cont'd
2
Extron
UPB 25
Universal Projector
Mounting Bracket (optional)
Projector
Extron
PMP
Projector Mount
Pole (optional)
Security
Lock
Extron
FCMP 1010
Flat Ceiling Mounting
Plate
Figure 3. Typical Application of FCMP 1010
5.00
[127.00]
3X 4.50
[114.30]
2X 2.12
[53.88]
2X 2.12
[53.88]
3X 4.50
[114.30]
Ш2.20
[Ш55.88]
THRU
(CUTOUT)
3X 4.50
[114.30]
2X 2.12
[53.88]
2X 2.12
[53.88]
3X 4.50
[114.30]
5.00
[127.00]
8X .34 X .59
[8.73] X [15.08]
4X Ш.34
[Ш8.73]
16X R

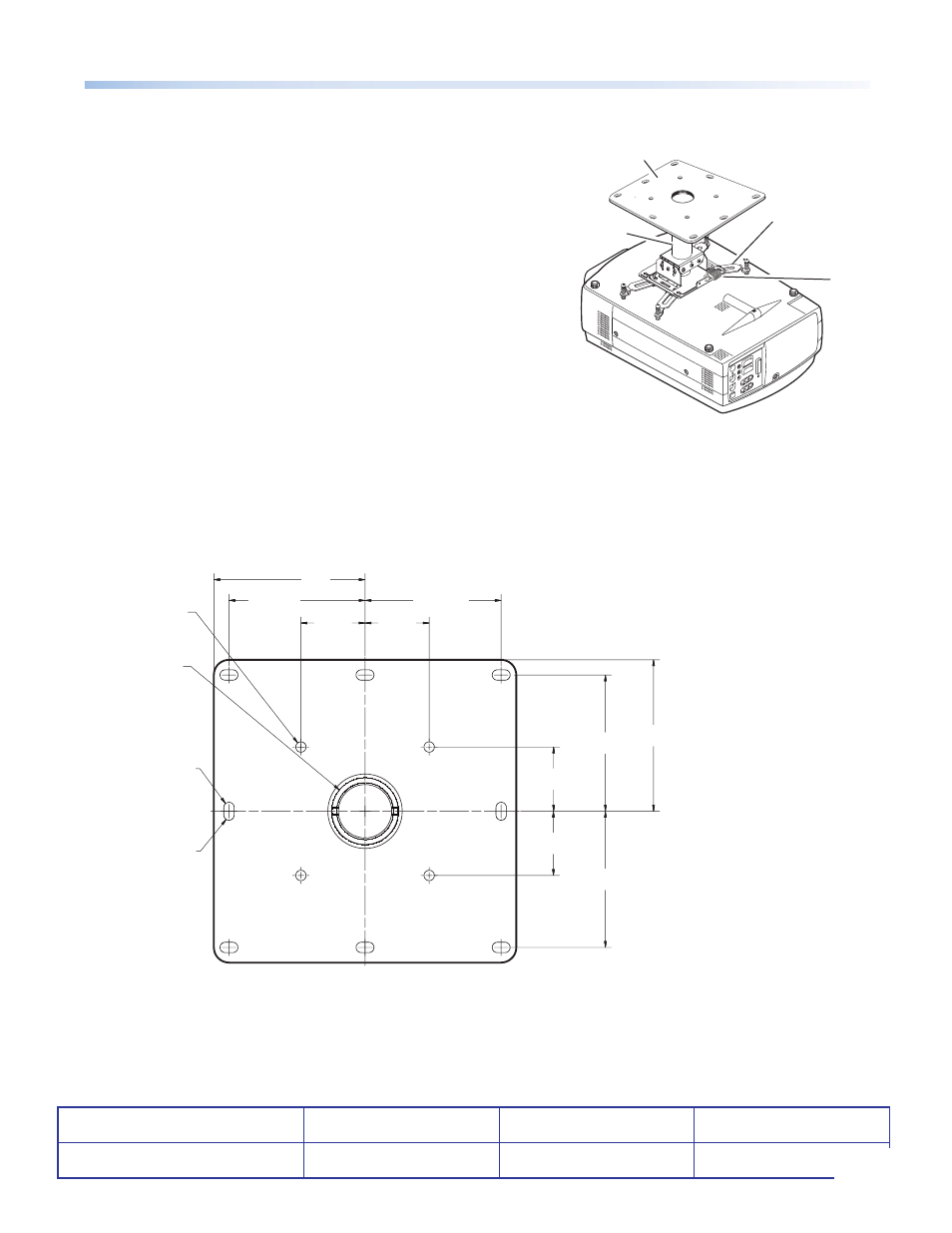

Figure 2. FCMP 1010 Dimensions
Extron Headquarters
+1.800.633.9876 (Inside USA/Canada Only) Extron Asia
+65.6383.4400 Extron China
+86.21.3760.1568) Extron Korea
+82.2.3444.1571
Extron Europe
+31.33.453.4040 Extron Japan
+81.3.3511.7655 Extron Middle East
+971.4.2991800 Extron India
+91.80.3055.3777
© 2012 Extron Electronics — All rights reserved. All trademarks mentioned are the property of their respective owners. www.extron.com
68-1356-01
Rev B
08 12
Specifications
Mount type .................................. Pole Mount
Material ........................................ Metal
Plate dimensions .......................... Various (see image below)
Shipping weight .......................... ~ 3 lbs (1 kg)
Maximum capacity ....................... 200 lbs (92 kg)
Regulatory compliance
Safety ..................................... CE, c-UL, UL for use with UL
Listed mount and projector;
OSHPD anchorage pre-approval
Vibration ...................................... ISTA 1A in carton (International
Safe Transit Association)
Warranty ...................................... 3 years parts and labor
