FCMP 44 • Installation Guide, cont'd
Installation
To install the FCMP 44 on a flat ceiling
1.
Locate a suitable wooden joist at the location chosen for the
installation. Mark the position of the four corner mounting
holes (see figure 1). Each hole should be in the center of a
joist (minimum size 2 inch by 4 inch). If the plate does not
span two joists, build up a suitable support, using 2 by 4 inch
minimum sized joists, ensuring each hole falls in the center
of a joist.
2.
Drill pilot holes perpendicular to the joist. The pilot holes
should be 70% of shank diameter and the full depth of the
lag bolts to be used (1/4 inch diameter by 4 inch lag bolts are
recommended).
3.
Using fasteners suitable for the mounting surface (not
supplied, see above for recommended type), firmly secure
the FCMP 44 to the joists. A minimum of four bolts, with
washers, should be used.
4.
Back out the set screws, and then screw a projector mounting
pole (with an NPT 1.5 inch thread, such as an Extron PMP) of
suitable length into the mounting plate. A minimum of three
turns is needed to safely secure the pole.
Be careful not to cross thread the pole into the mounting plate.
5.
Secure the pole in position by tightening the set screws down.
6.
Follow the instructions supplied with the projector mounting bracket to hang the bracket.
Extron
UPB 25
Universal Projector
Mounting Bracket
(optional)
Projector
Extron
PMP
Projector Mount
Pole (optional)
Extron
FCMP 44
Flat Ceiling Mounting
Plate
Security Lock

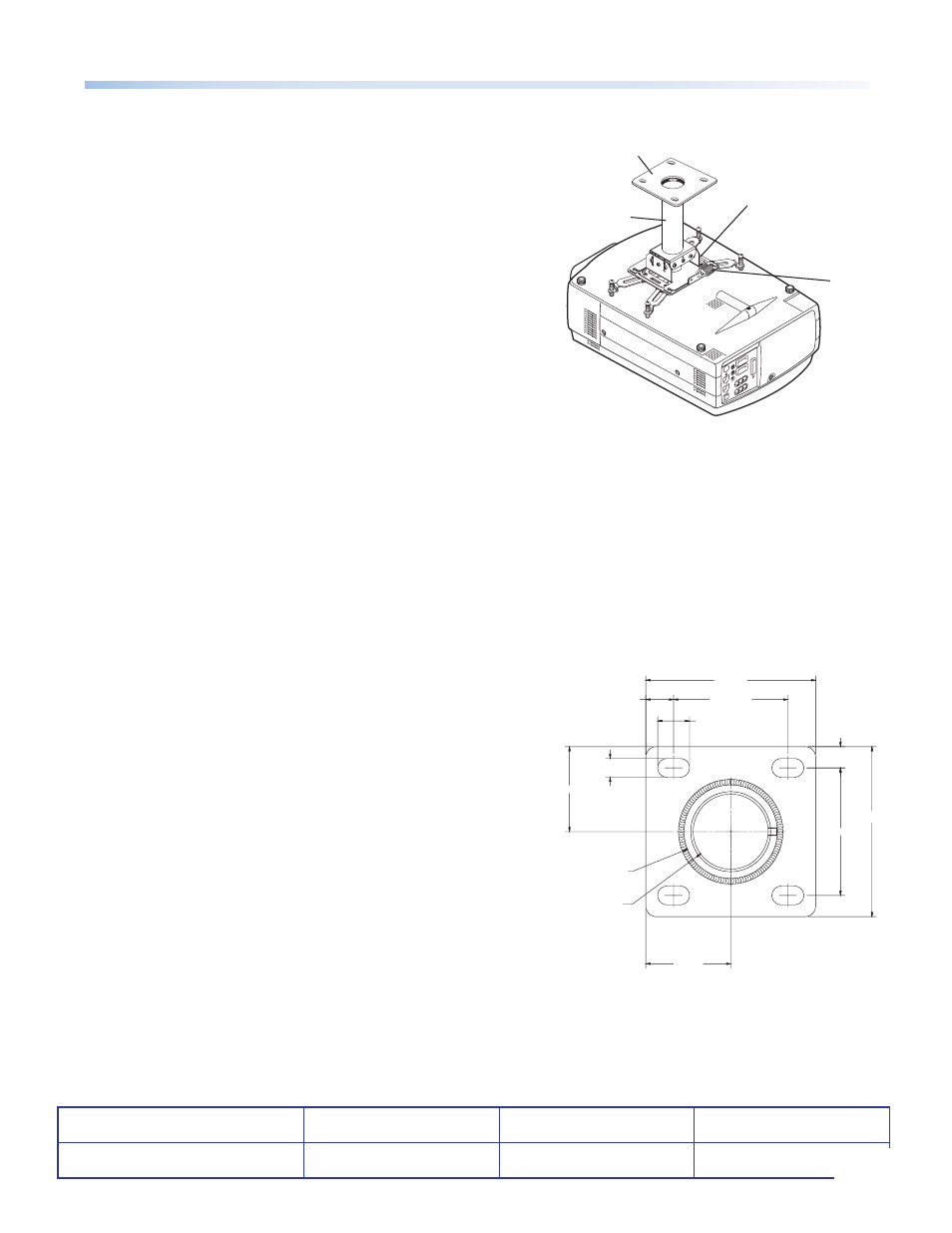

Figure 4.
Typical Application of FCMP 44
4.00 [101.6]
2.00 [50.8]
2X 3.000 [76.2]
2X 2.690 [68.3]
4.00 [101.6]
2.00 [50.8]
4X .75 [19.0]
4X .44 [11.2]
(1 1/2"-11.5 NPT)
2.220
[56.39]
(CUTOUT)
2X .50 [12.7]
2X .66 [16.6]
all dimensions in inches (millimeters)
Figure 3.
FCMP 44 Dimensions
www.extron.com
68-1248-01
Rev B
08 12
Specifications
Mount type .................................. Pole Mount
Material ........................................ Metal
Plate dimensions .......................... Various (see image)
Shipping weight .......................... ~ 2 lbs (1 kg)
Maximum capacity ....................... 200 lbs (91 kg)
Regulatory compliance
Safety ..................................... CE, c-UL, UL for use with UL Listed
mount and projector;
OSHPD anchorage pre-approval
Vibration ...................................... ISTA 1A in carton (International
Safe Transit Association)
Warranty ...................................... 3 years parts and labor
