Extron Electronics Fiber Optic Strip_Cleave Gauge User Manual
Extron, Fiber optic strip/cleave gauge, 2mm and 3mm fiber cable
Extron
®

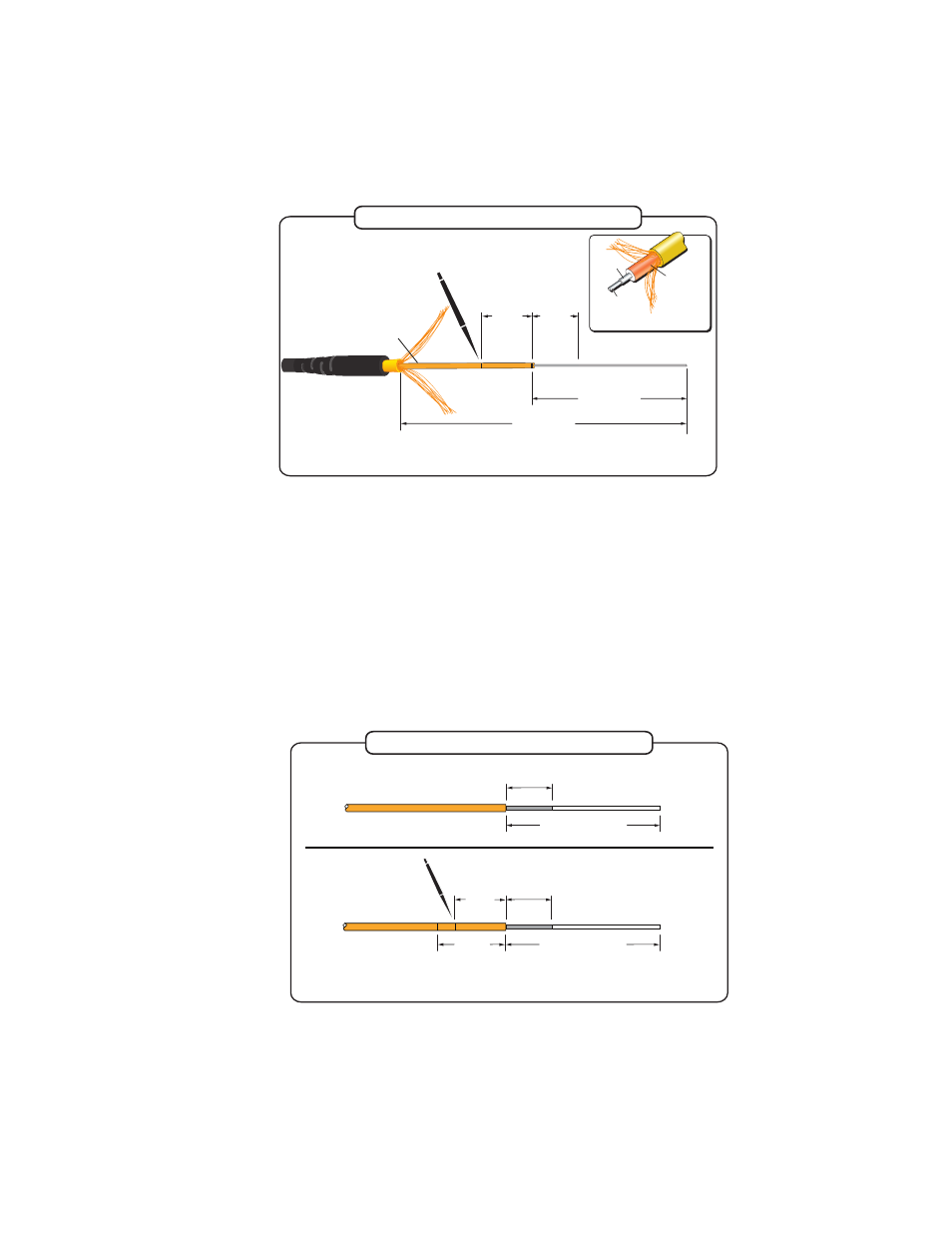

Fiber Optic Strip/Cleave Gauge
Mark Cable
250 µm & 900 µm Buffer/Fanout
(for SC, ST and LC)
Cleave fiber 10.5 mm
Cleave fiber 10.5 mm
Strip Length 35 mm
Strip Length 35 mm
11.5 mm
(LC)
15.5 mm
(SC/ST)
250 µm
900 µm Buffer/Fanout
Extron
®
Fiber Optic Strip/Cleave Gauge
Extron Electronics
Anaheim, CA
www.extron.com
68-2049-01
A
Mark Cable
Boot
2mm and 3mm Fiber Cable
10.5 mm
(Cleave)
Strip 35 mm
(Buffer)
Strip 65 mm
(Outer Jacket)
11.5 mm
(LC)
Buffer
Buffer
Kevlar Strands
Cladding
Jacket
Acrylic
Coating
This View Not to Scale
